Trade Discount 25%

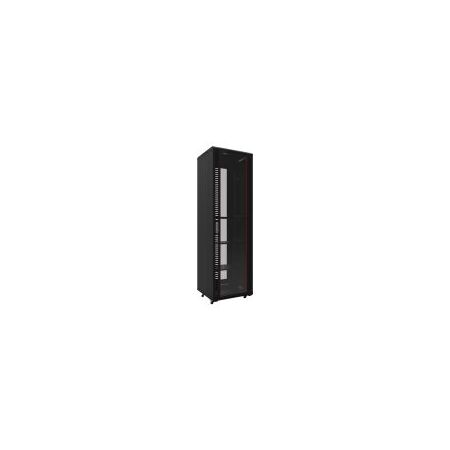

42RU 600x800mm Floor Standing Data Cabinet A5 Series Redback
Redback 42RU A5 floor standing cabinet features 600mm wide 800mm deep welded frame, glass front door, vented lockable rear door, and castors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 42RU Server Rack Cabinet, 19-Inch Network Cabinet, Floor Standing Data Rack, A5 Series Communications Cabinet
Technical Specifications
- Rack Capacity: 42RU
- Mounting Format: 19-inch rack equipment
- External Width: 600mm
- External Depth: 800mm
- External Height: 2055mm
- Maximum Load Capacity: Up to 800kg
- Construction: Rigid welded steel frame
- Front Door: Toughened glass, lockable
- Rear Door: Vented metal door with lock
- Metal Thickness: 1.2–1.5mm, with 2.0mm mounting profiles
- Mounting Rails: Repositionable front and rear vertical rails
- Cable Entry: Removable top and bottom cable-entry panels
- Included Accessories: Three shelves and 40 cage nuts
- Mobility: Heavy-duty castors with levelling feet
- Finish: Powder-coated finish
- Earthing: Earth continuity leads fitted to each panel
- Dimensions (H x L x W): 2055mm x 800mm x 600mm
- Weight: 109 kg
Key Features
- 42RU capacity for high-density network, server and communications equipment
- Standard 19-inch mounting format
- Rigid welded frame supports loads up to 800kg
- Toughened glass front door provides equipment visibility
- Vented lockable rear door supports airflow and security
- Removable side panels and cable-entry panels simplify installation and maintenance
- Repositionable vertical mounting rails accommodate different equipment depths
- Supplied with shelves, cage nuts, heavy-duty castors and levelling feet
- Lockable panels and doors provide physical protection for installed equipment
Applications
- Server rooms and data centres
- Telecommunications and communications rooms
- Enterprise network equipment installations
- Network switches, patch panels and cable management systems
- Rack-mounted servers, storage equipment and UPS systems
- Security, surveillance and building-management equipment installations
Environmental Benefits
- Steel cabinet components can be recycled at end of service life
- Durable welded construction and powder-coated finish support a long service life, reducing replacement waste
- Passive cabinet design requires no operating power
- Removable panels and modular components can simplify repair, maintenance and component replacement
Warranty Information
2-year return-to-base warranty against defects in materials and workmanship, subject to the supplier’s warranty terms and Australian Consumer Law.
Available Now
Available through authorised REDBACK_RACKS distributors in Australia.
