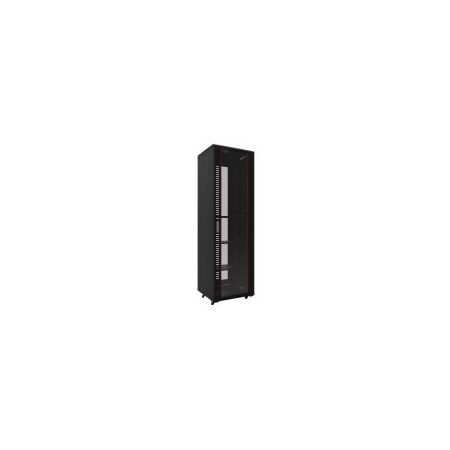

42RU 800x1000mm Server Rack Mesh Doors A5 Series Redback
Redback 42RU A5 server rack features 800mm wide 1000mm deep welded frame, front and rear vented mesh doors, castors and levelling feet.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 42RU Server Cabinet, 19-inch Network Cabinet, Data Rack, Communications Rack, Floor-Standing Rack Enclosure
Technical Specifications
- Rack Type: Floor-standing enclosed server cabinet
- Rack Capacity: 42RU
- Equipment Mounting: 19-inch rack format
- Construction: Fully assembled rigid welded frame
- Material: Powder-coated steel
- Door Type: Front and rear vented mesh doors
- Load Capacity: Up to 800kg on levelling feet
- Mounting Rails: Repositionable front and rear vertical rails
- Cable Access: Removable cable entry plates on top and bottom
- Cable Management: Dual vertical cable management
- Included Accessories: Three fixed metal shelves and 40 cage nuts
- Mobility: Heavy-duty castors with levelling feet
- Earthing: Earth continuity leads fitted to each panel
- Ingress Protection: IP20
- Dimensions (H x L x W): 2055mm x 1000mm x 800mm
- Weight: 110 kg
Key Features
- 42RU capacity for servers, network switches, UPS systems and communications equipment
- 800mm external width provides additional side clearance for cable management
- 1000mm cabinet depth accommodates deeper server and networking hardware
- Front and rear vented mesh doors support airflow through high-density equipment
- Rigid welded frame provides a robust, fully assembled enclosure
- Removable side panels and cable entry plates simplify installation and servicing
- Repositionable vertical mounting rails allow flexible equipment configuration
- Heavy-duty castors and levelling feet support positioning and stable installation
- Supplied with three fixed shelves and 40 cage nuts
- Lockable doors and side panels provide equipment security
Applications
- Data centres and server rooms
- Enterprise network infrastructure
- Telecommunications and communications rooms
- Commercial IT equipment installations
- AV, security and control equipment enclosures
- Server, UPS and patch-panel housing
Environmental Benefits
- Durable powder-coated steel construction can support a long service life and reduce replacement waste
- Steel components are suitable for recycling at end of service life
- Vented mesh doors support passive airflow and can reduce reliance on additional cooling in suitable installations
- Removable panels, shelves and mounting rails support repair, reconfiguration and equipment upgrades rather than full cabinet replacement
Warranty Information
Redback Racks products are covered by a 5-year warranty. Warranty conditions and exclusions apply.
Available Now
Available through authorised REDBACK_RACKS distributors in Australia.
