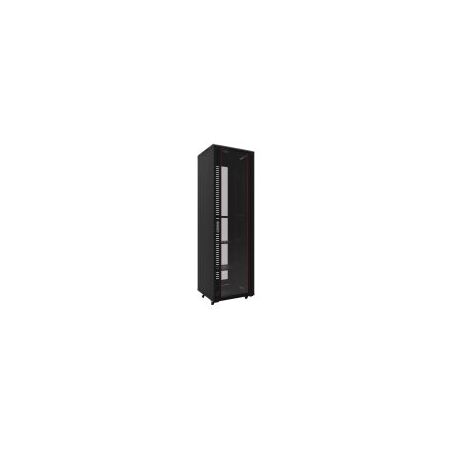

42RU 800x800mm Server Rack Mesh Doors A5 Series Redback
Redback 42RU A5 server rack features 800mm wide 800mm deep welded frame, front and rear vented mesh doors, castors and levelling feet.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 42RU Server Cabinet, 19-inch Network Rack, Data Cabinet, Communications Rack
Technical Specifications
- Rack Type: Floor-standing 19-inch server cabinet
- Rack Capacity: 42RU
- External Width: 800mm
- External Depth: 800mm
- External Height: 2055mm
- Load Capacity: Up to 800kg on levelling feet
- Construction: Rigid welded frame
- Door Type: Front and rear vented mesh doors
- Material Thickness: 1.2–1.5mm metal, with 2.0mm mounting profiles
- Finish: Powder-coated metal
- Mounting Rails: Repositionable front and rear vertical rails
- Cable Entry: Removable cable entry plates on top and bottom
- Included Accessories: Three fixed metal shelves and 40 cage nuts
- Access: Removable side panels with secure side locks
- Earthing: Earth continuity leads fitted to each panel
- Ingress Protection: IP20
- Rack Compatibility: ANSI/EIA RS-310-D, DIN 41497 Part 1, IEC 297-2, DIN 41494 Part 7 and ETSI rack formats
- Dimensions (H x L x W): 2055mm x 800mm x 800mm
- Weight: 105 kg
Key Features
- 42RU capacity for servers, network equipment, patch panels and power distribution equipment
- 800mm-wide and 800mm-deep cabinet provides additional side and rear cable-management space
- Front and rear vented mesh doors support airflow through installed equipment
- Fully assembled welded frame for improved rigidity and durability
- Heavy-duty castors and levelling feet included
- Removable side panels provide convenient equipment access
- Repositionable mounting rails accommodate different equipment depths
- Removable top and bottom cable-entry plates simplify cable routing
- Three fixed shelves and 40 cage nuts included
- Powder-coated finish for durable surface protection
Applications
- Server rooms and data centres
- Network and telecommunications equipment storage
- Commercial communications rooms
- IT infrastructure and patch-panel installations
- CCTV, security and building-management system equipment
- Industrial control and networking installations
Environmental Benefits
- Steel cabinet components can be recycled at end of service life
- Durable welded construction and replaceable configuration components can extend product service life
- Vented doors support passive airflow and may reduce reliance on additional cooling in suitable installations
Warranty Information
Five-year manufacturer warranty for Redback Racks products, subject to the applicable warranty terms and conditions.
Available Now
Available through authorised REDBACK_RACKS distributors in Australia.
