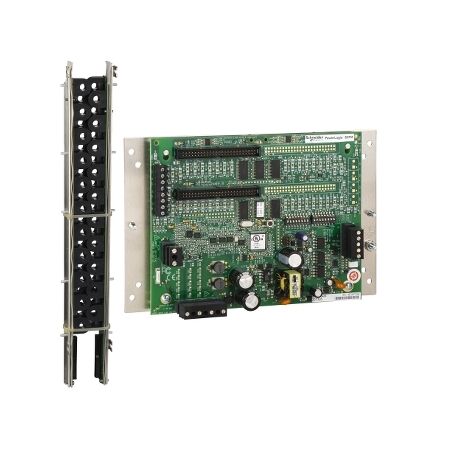

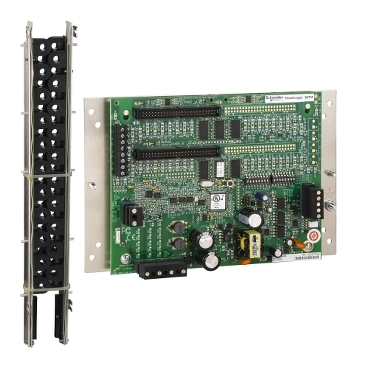

42xAmp Circuits RS485 Power Meter | Monitors 42 Branch Circuits | Solid Core 100A CT | by Clipsal
The 42xAmp Circuits RS485 Power Meter is designed to monitor up to 42 branch circuits simultaneously, making it ideal for commercial and industrial energy management. With RS485 Modbus communication and solid core 100A current transformers, it provides accurate real-time energy monitoring and reporting, ensuring efficient energy usage and compliance with green building standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 42xAmp Circuits RS485 Power Meter | Monitors 42 Branch Circuits | Solid Core 100A CT | by Clipsal
Brand: Clipsal
SKU: SCHBCPMC042S
Alternatively Known As: Branch Circuit Power Meter, BCPM, Clipsal Power Monitoring, 42 Circuit Power Meter, RS485 Power Meter, SCHBCPMC042S
Technical Specifications
- Number of Circuits: 42
- Communication: RS485 Modbus
- Current Transformer Type: Solid core
- CT Rating: 100A
- CT Spacing: 19mm (3/4 inch)
- Input Voltage: 90-277V AC
- Frequency: 50/60Hz
- Accuracy: ±1% for energy measurements
- Operating Temperature: -10°C to 60°C
- Mounting: Panel mount
- Dimensions (H x L x W): 60mm x 200mm x 350mm
- Weight: 4.5 kg
Key Features
- Monitors up to 42 branch circuits simultaneously
- RS485 Modbus communication for integration with BMS and EMS
- Solid core 100A current transformers with 19mm spacing
- Accurate real-time energy monitoring and reporting
- Compact design for easy installation in panelboards
Professional Installation Requirements
- Installation must be performed by a licensed electrician familiar with panelboard wiring and Modbus communication setup.
Applications
- Commercial and industrial electrical panels
- Data centers for branch circuit monitoring
- Facilities management for energy usage tracking
- Sub-metering in multi-tenant buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables detailed energy usage analysis for improved efficiency
- Supports energy conservation and cost reduction initiatives
- Facilitates compliance with green building standards
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 42xAmp Circuits RS485 3/4" CT BCPM Power Monitoring Basic (SCHBCPMC042S) is available for immediate purchase. Ideal for commercial and industrial energy monitoring applications.
