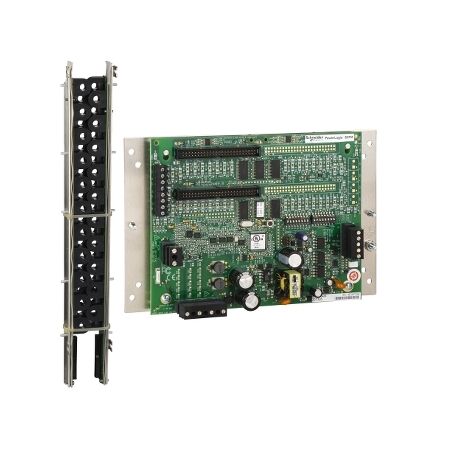

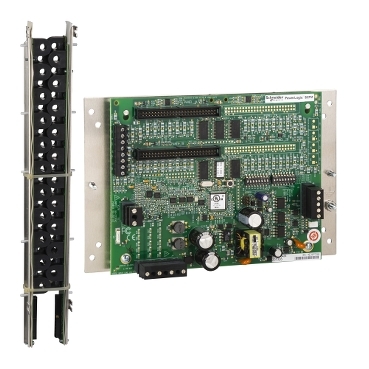

42xAmp Circuits RS485 Power Monitoring Module | 100A Solid Core CT | High Accuracy Energy Measurement | by Clipsal
The 42xAmp Circuits RS485 Power Monitoring Module is designed to monitor up to 42 branch circuits simultaneously, making it ideal for commercial and industrial energy management. With RS485 Modbus communication and high accuracy energy measurement, this module supports efficient load balancing and energy usage analysis, ensuring compliance with green building standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 42xAmp Circuits RS485 Power Monitoring Module | 100A Solid Core CT | High Accuracy Energy Measurement | by Clipsal
Brand: Clipsal
SKU: SCHBCPMB042S
Alternatively Known As: Branch Circuit Power Meter, BCPM, Power Monitoring Module, Clipsal BCPM 42 Circuit, Schneider BCPM 42xAmp, RS485 Power Meter
Technical Specifications
- Number of Circuits: 42
- Communication: RS485 Modbus
- Current Transformer: 42 solid core, 100A, 19mm spacing
- Input Voltage: 90-277V AC
- Frequency: 50/60Hz
- Accuracy: ±1% for energy measurement
- Operating Temperature: -10°C to +60°C
- Mounting: Panel mount
- Enclosure: Metal
- Dimensions (H x L x W): 90mm x 200mm x 430mm
- Weight: 6.5 kg
Key Features
- Monitors up to 42 branch circuits simultaneously
- RS485 Modbus communication for integration with BMS and EMS
- Solid core 100A current transformers with 19mm spacing
- High accuracy energy measurement for each circuit
- Compact design for easy installation in panelboards
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with power monitoring systems and RS485 communication networks.
Applications
- Commercial and industrial electrical distribution boards
- Data centers for branch circuit power monitoring
- Facilities management for energy usage analysis
- Sub-metering in multi-tenant buildings
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables detailed energy usage tracking to support energy efficiency initiatives
- Facilitates load balancing and demand reduction, lowering overall energy consumption
- Supports compliance with green building standards by providing actionable energy data
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal 42xAmp Circuits RS485 3/4" CT BCPM Power Monitoring Intermediate (SCHBCPMB042S) is available for immediate purchase. Ideal for commercial and industrial energy management and sub-metering applications.
