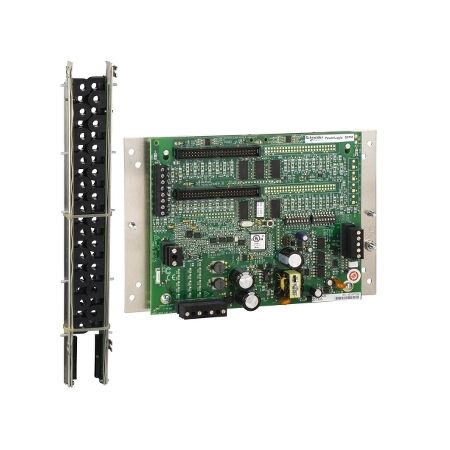

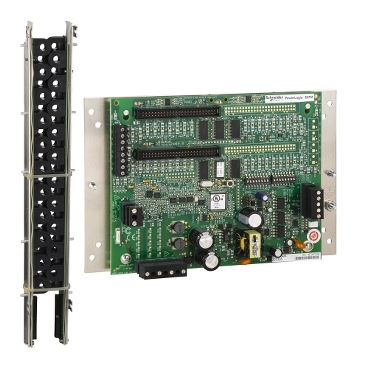

42xAmp Engy/Circts RS485 Power Meter | Monitors 42 Circuits | 100A Solid Core CTs | by Clipsal
The 42xAmp Engy/Circts RS485 Power Meter is designed to monitor up to 42 branch circuits simultaneously, making it ideal for commercial and industrial energy management. With solid core current transformers rated at 100A per circuit and RS485 Modbus communication, this power meter ensures high accuracy and seamless integration with energy management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 42xAmp Engy/Circts RS485 Power Meter | Monitors 42 Circuits | 100A Solid Core CTs | by Clipsal
Brand: Clipsal
SKU: SCHBCPMA042S
Alternatively Known As: Branch Circuit Power Meter, BCPM 42 Circuit Power Monitor, Clipsal Energy Meter, Schneider BCPM, RS485 Power Meter
Technical Specifications
- Monitored Circuits: 42
- Current Transformer Type: Solid core
- CT Rating: 100A per circuit
- CT Spacing: 19 mm
- Communication: RS485 Modbus
- Input Voltage: 90-277V AC
- Accuracy: ±1% for energy measurements
- Operating Temperature: -10°C to +60°C
- Mounting: Panel mount
- Dimensions (H x L x W): 100mm x 200mm x 300mm
- Weight: 2.5 kg
Key Features
- Monitors up to 42 branch circuits simultaneously
- Solid core current transformers (CTs) with 100A capacity
- 19 mm CT spacing for compact installation
- Advanced power and energy monitoring capabilities
- RS485 Modbus communication for integration with BMS and EMS
- High accuracy for energy management and cost allocation
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with power monitoring systems and RS485 Modbus integration.
Applications
- Commercial and industrial electrical panels
- Data centers for branch circuit monitoring
- Energy management systems
- Facilities requiring detailed energy usage analytics
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables precise energy monitoring to identify and reduce energy waste
- Supports compliance with energy efficiency initiatives
- Facilitates load balancing and optimization for reduced carbon footprint
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal BCPM Advanced Power Monitoring Module (SCHBCPMA042S) is available for immediate purchase. Ideal for commercial and industrial energy management applications.
