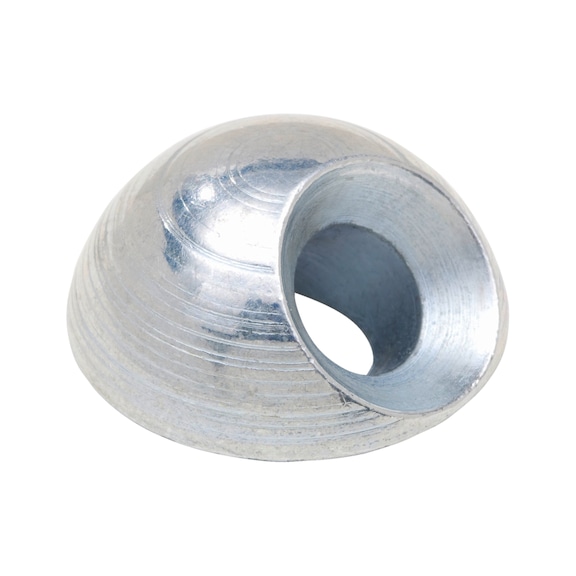

45° Angled Washer Round Hole | Zinc Plated Steel | 25 PCS | by Wurth
The 45° Angled Washer Round Hole is designed for optimal load transfer in metal and wood connections, making it ideal for timber construction and structural woodwork. Crafted from durable zinc plated steel, this washer ensures a high-precision fit for ASSY countersunk screws, preventing screw head pull-through in thin sheet metals. Perfect for professional installations, it guarantees a clean and secure fastening solution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 45° Angled Washer Round Hole | Zinc Plated Steel | 25 PCS | by Wurth
Brand: Wurth
SKU: 457700482
Alternatively Known As: 45 Degree Angled Washer, 45° Washer for ASSY Screws, Zinc Plated Angled Washer, Metal Wood Connection Washer
Technical Specifications
- Internal diameter (d): 8.5 mm
- Insertion diameter (d1): 15.9 mm
- Outer diameter (d2): 25 mm
- Radius (R): 12.5 mm
- Diameter of hole: 16 mm
- Effective length (n): 7.2 mm
- Height (h): 11.6 mm
- Distance between centre of hole and edge (k): 8 mm
- Insertion depth (h1): 1.9 mm
- Countersink diameter (D): 14.8 mm
- Screw-in angle: 45 Degree
- Countersink angle (α): 90 Degree
- Material: Steel
- Surface: Zinc plated
- Product weight (per item): 24.5 g
- Min./max. material thickness: 2-3 mm
- Suitable for screws: ASSY 3.0 countersunk head diameter 8 mm, ASSYplus VG countersunk head diameter 8 mm, ASSY 4 countersunk head diameter 8 mm
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 11.6mm x 25mm x 25mm
- Weight: 0.025 kg
Key Features
- Optimum transfer of tensile loads for metal/wood connections with ASSY countersunk screws
- Suitable for metal tabs with thickness of 2–3 mm
- High-precision fit and exact 45° specification for screwing ASSY screws
- Prevents pulling through of the screw head when using thin sheet metals
- Quick and easy installation using a simple round hole or slot hole in the metal plate
- Clean appearance of the finished screw connection
- Material: Steel, blue passivated (A3K)
- Application in utilisation classes 1 and 2
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct fit and load transfer, especially in structural applications.
Applications
- Metal wood connections
- Timber construction
- Structural woodwork
- Metal plate and wood connections
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable steel construction promotes long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth 45° Angled Washer Round Hole 25 PCS is available for immediate purchase. Ideal for metal and wood structural connections requiring precise angled fastening.
