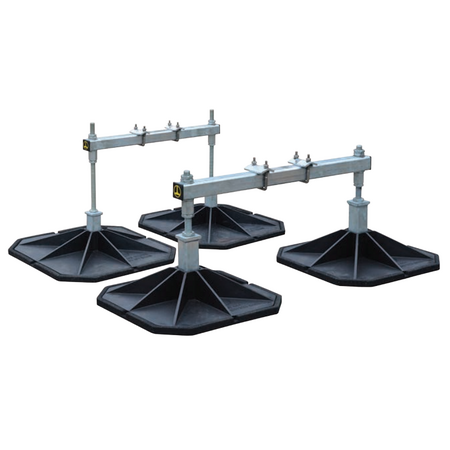

450mm HD Beam | Height Adjustable 300-360mm | 1000kg Load Capacity | by Aspen Pumps
The 450mm HD Beam is designed for commercial and industrial HVAC installations, featuring a height adjustment range of 300-360mm and a maximum load capacity of 1000kg. Ideal for positioning AHU and chiller units, this heavy-duty steel beam ensures even load distribution and complies with AS/NZS 1170 standards for structural design actions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 450mm HD Beam | Height Adjustable 300-360mm | 1000kg Load Capacity | by Aspen Pumps
Brand: Aspen Pumps
SKU: B9423
Alternatively Known As: HD Beam 450mm, Heavy Duty Beam, HVAC Support Beam, Structural Support Beam
Technical Specifications
- Height: Adjustable from 300mm to 360mm
- Maximum Load: 1000kg
- Kit Includes: 2 leg assemblies, 1 cross bar, 2 beam clamps, assembly instructions
- Material: Heavy duty steel (assumed based on typical product type)
- Dimensions (H x L x W): 360mm x 450mm x 450mm
- Weight: 5 kg
Key Features
- Height adjustable between 300-360mm
- Maximum load capacity of 1000kg
- Includes leg assemblies, cross bar, beam clamps, and assembly instructions
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with structural support and HVAC system requirements to ensure safety and compliance.
Applications
- Positioning AHU/chiller units accurately over existing structural beams
- Ensuring even load distribution in HVAC installations
- Commercial and industrial HVAC system support
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Supports efficient HVAC system installation contributing to energy-efficient building operation
Warranty Information
Warranty details available upon request from Aspen Pumps; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps 450mm HD Beam is available for immediate purchase, ideal for commercial and industrial HVAC installations requiring precise load distribution.
