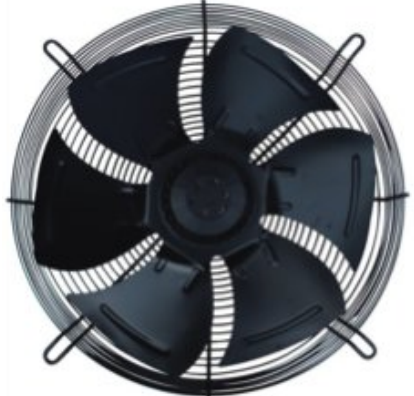

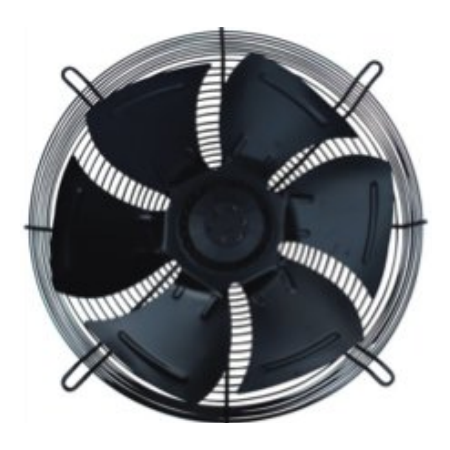

450mm Motor Fan Blade | High Efficiency | IP44 & IP55 Rated | by Aspen Pumps
The 450mm Motor Fan Blade is designed for high efficiency and optimal airflow, compatible with external rotor motors. With an operating temperature range of -30°C to 60°C and IP44/IP55 ratings for dust and water protection, this fan blade is perfect for HVAC and refrigeration applications, ensuring reliable performance in industrial and commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 450mm Motor Fan Blade | High Efficiency | IP44 & IP55 Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: 500-4E-450-S-102/60G
Alternatively Known As: 450mm Motor Fan Blade, Shaded Pole Motor Fan Blade, External Rotor Motor Fan Blade
Technical Specifications
- Fan Blade Diameter: 450mm
- Compatible with high efficiency external rotor motors (ErP 2015 performance)
- Approvals: CE, UL, CCC
- Operating Temperature Range: -30°C to 60°C
- Rated Lifetime: 30,000 hours
- IP Rating: IP44, IP55
- Insulation Class: B or F
- Terminal Box Connection
- Standard Air Direction: Over motor
- Dimensions (H x L x W): 50mm x 450mm x 450mm
- Weight: 1.5 kg
Key Features
- High efficiency external rotor motor compatible fan blade
- 450mm diameter for optimal airflow
- Suitable for single phase and three phase motors
- IP44 and IP55 rated for protection against dust and water
- Operating temperature range from -30°C to 60°C
- Insulation class B or F for motor protection
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper fit and motor compatibility.
Applications
- Liquid control systems requiring efficient motor fan blades
- Replacement or accessory for shaded pole motors in HVAC and refrigeration
- Industrial and commercial motor cooling applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High efficiency design reduces energy consumption and operational costs
- RoHS compliant materials minimize environmental impact
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Pumps 500-4E-450-S-102/60G fan blade is available for immediate purchase, ideal for liquid control and motor cooling applications.
