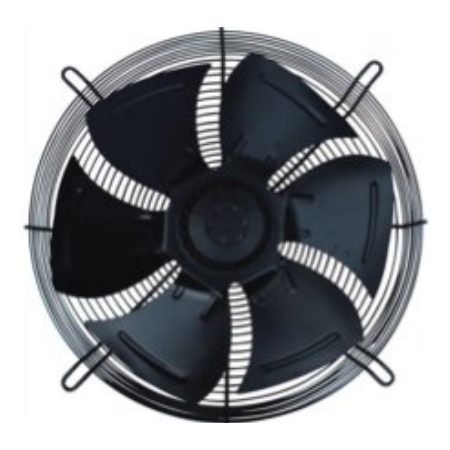

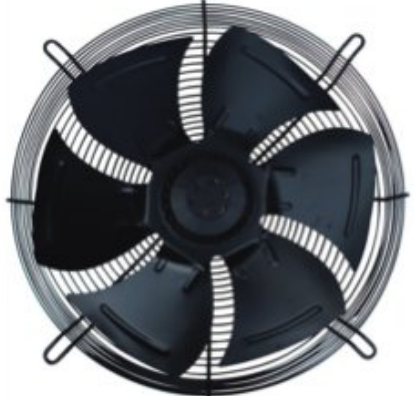

450mm Motor Fan Blade | High Efficiency for External Rotor Motors | IP44 & IP55 Rated | by Aspen Pumps
The 450mm Motor Fan Blade is designed for high efficiency with external rotor motors, ensuring optimal airflow and durability. With an operating temperature range of -30°C to 60°C and IP44/IP55 ratings for dust and water protection, this fan blade is perfect for industrial and commercial motor cooling applications. Ideal for liquid control systems, it offers a long service life and easy installation with a terminal box connection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 450mm Motor Fan Blade | High Efficiency for External Rotor Motors | IP44 & IP55 Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: 500-6E-450-S-102/60G
Alternatively Known As: 450mm Motor Fan Blade, Shaded Pole Motor Fan, External Rotor Motor Fan Blade
Technical Specifications
- Fan Blade Diameter: 450mm
- Motor Compatibility: High efficiency external rotor motors
- Approvals: CE, UL, CCC
- Compliance: RoHS
- Operating Temperature: -30°C to 60°C
- Rated Lifetime: 30,000 hours
- IP Rating: IP44, IP55
- Insulation Class: B or F
- Connection: Terminal box
- Air Direction: Standard over motor
- Dimensions (H x L x W): 50mm x 450mm x 450mm
- Weight: 1.2 kg
Key Features
- High efficiency external rotor motor compatible fan blade
- 450mm diameter for optimal airflow
- Suitable for single phase and three phase motors
- IP44 and IP55 rated for protection against dust and water
- Operating temperature range from -30°C to 60°C
- Insulation class B or F for durability
- Terminal box connection for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper fit and electrical safety.
Applications
- Liquid control systems requiring efficient motor cooling
- Replacement or upgrade for shaded pole motor accessories
- Industrial and commercial motor cooling applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High efficiency design reduces energy consumption
- RoHS compliant materials minimize environmental impact
- Long service life reduces waste and replacement frequency
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen 500-6E-450-S-102/60G fan blade is available for immediate purchase, ideal for liquid control and motor cooling applications.
