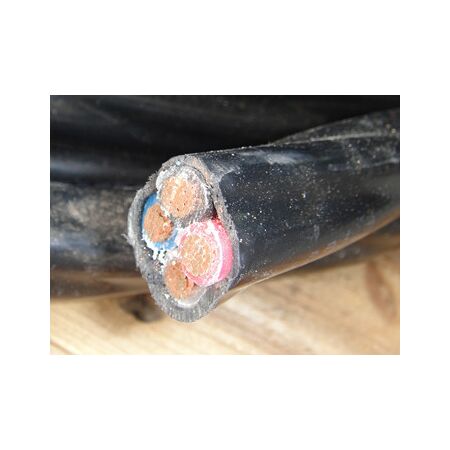

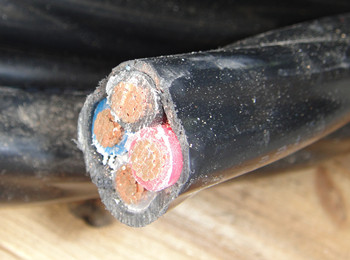

45mm 4 Core Black XLPE Cable | 600/1000V Rated | UV Stabilised Sheath | @KM of 0.10 | by Electra Cables
The 45mm 4 Core Black XLPE Cable is designed for high current capacity with its 45mm² copper conductor and superior XLPE insulation. Rated for 600/1000V applications, this cable is perfect for industrial power distribution and commercial electrical installations, ensuring durability in harsh environments. Its UV stabilised black sheath makes it suitable for outdoor use, providing enhanced safety with low smoke, halogen-free properties.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 45mm 4 Core Black XLPE Cable | 600/1000V Rated | UV Stabilised Sheath | @KM of 0.10 | by Electra Cables
Brand: Electra Cables
SKU: XLPE4500-BBLK
Alternatively Known As: 45mm 4 Core XLPE Cable, 4C 45mm XLPE Power Cable, 45mm² 4 Core Black Mains Cable, Heavy Duty 4 Core Power Cable, XLPE4500-BBLK
Technical Specifications
- Conductor: Plain annealed copper, 45mm²
- Cores: 4
- Insulation: XLPE (Cross-Linked Polyethylene)
- Sheath: UV stabilised black LSZH (Low Smoke Zero Halogen)
- Voltage Rating: 600/1000V
- Temperature Rating: -25°C to +90°C
- Compliance: AS/NZS 5000.1
- Length: 100m
- Flame Retardant: Yes
- Suitable for direct burial and outdoor use
- Dimensions (H x L x W): 60mm x 100000mm x 60mm
- Weight: 420 kg
Key Features
- 45mm² 4 core copper conductor for high current capacity
- XLPE (Cross-Linked Polyethylene) insulation for superior thermal and electrical properties
- Rated for 600/1000V applications
- UV stabilised black sheath for outdoor and direct sunlight exposure
- Suitable for direct burial and harsh environments
- Low smoke, halogen free for enhanced safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations. Proper cable handling and termination tools are required.
Applications
- Industrial power distribution
- Commercial electrical installations
- Underground and above ground power supply
- Mining and infrastructure projects
- Renewable energy installations
Standards & Compliance
- Complies with AS/NZS 5000.1 for power cables with extruded insulation and their accessories for rated voltages from 1.9/3.3 kV up to and including 19/33 kV
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low smoke, halogen free design reduces toxic emissions in case of fire
- UV stabilised sheath extends cable lifespan and reduces replacement frequency
- XLPE insulation is more durable and energy efficient compared to traditional PVC
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
Available for immediate purchase. Ideal for industrial, commercial, and infrastructure power distribution applications.
