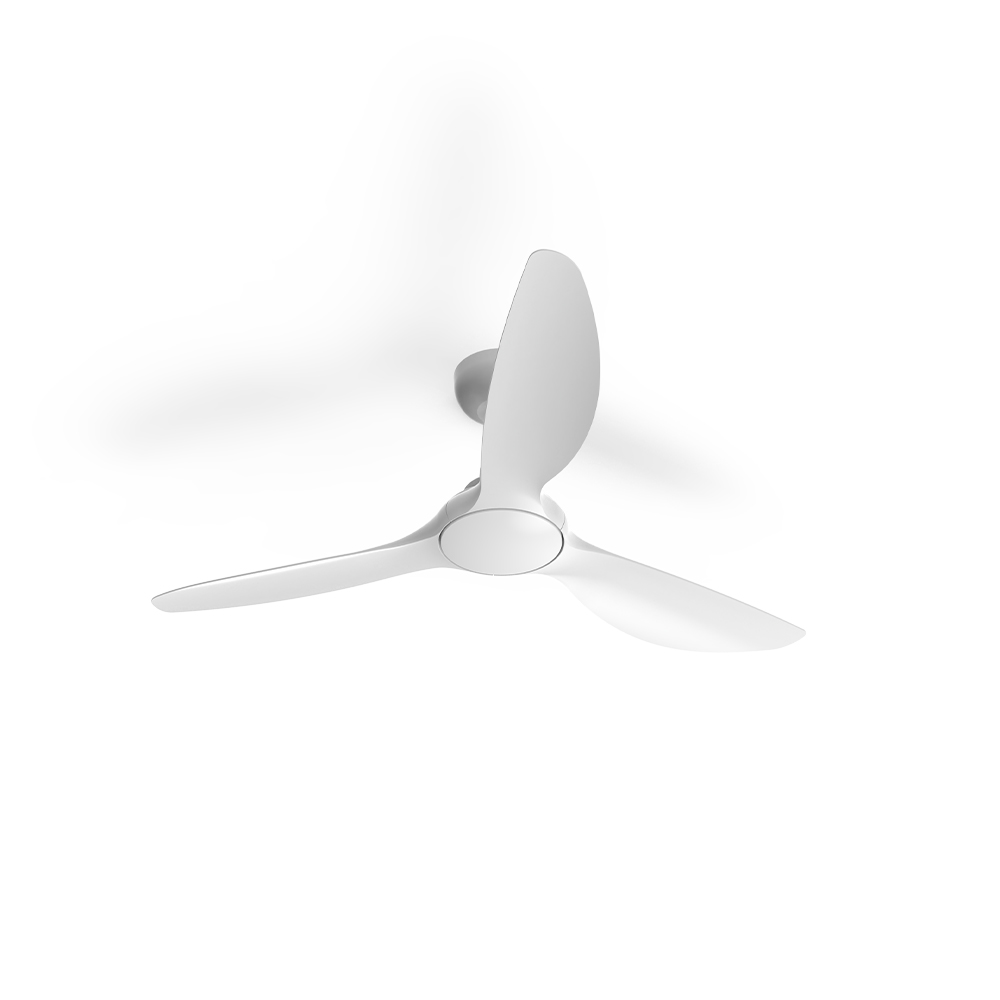

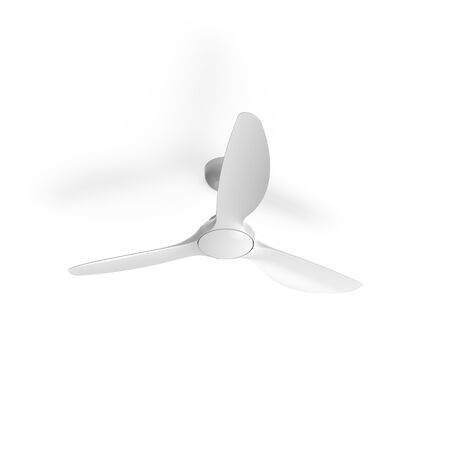

48 Inch 3 Blade 40W DC Ceiling Fan | Energy Efficient | Remote Control | IP20 Rated | by atom

BRAND: Atom
SKU: IBIZA/48/WH
$239.30 List price: $289.60
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
The 48 Inch 3 Blade 40W DC Ceiling Fan is designed for optimal indoor cooling, featuring an energy-efficient DC motor with 8 speed settings and a sleek white finish. Ideal for both residential and commercial spaces, this fan ensures effective air circulation while being easy to operate with a remote control. With an IP20 rating and a durable ABS blade material, it’s built to last in various indoor environments.

Alternatively Known As: 48 inch DC ceiling fan, 3 blade ceiling fan, 40W ceiling fan, white ceiling fan, Atom ceiling fan

Technical Specifications
  • Motor Wattage: 40 W
  • Motor Type: DC
  • Number of Speeds: 8
  • Fan Speeds and Airflow (m³/h): 4200 to 12500
  • Fan Speeds and RPM: 95 to 235
  • Blade Material: ABS
  • Blade Pitch: 13°
  • Ceiling Rake: 15°
  • Ceiling Drop: 325 mm
  • Input Voltage: 230Vac (216-253Vac range)
  • Input Frequency: 50 Hz
  • IP Rating: IP20
  • Operating Temperature Range: -10 to 40 °C
  • Lamp Colour Temperatures: 3000K, 4000K, 5000K
  • Lamp Power: 19 W
  • Lamp Lumen Output: 1240 to 1385 lm
  • Control: Remote control
  • Dimensions (H x L x W): 325mm x 1220mm x 1220mm
  • Weight: 5 kg
Key Features
  • 40W DC motor with 8 speed settings for efficient air movement
  • Remote control for convenient operation
  • ABS blade material with 13° blade pitch for optimal airflow
  • Ceiling rake of 15° and ceiling drop of 325 mm
  • Tri-CCT lamp configuration with warm white, cool white, and daylight options
  • IP20 rated for indoor use
  • Operating temperature range from -10 to 40 °C
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
  • Residential: Living rooms, bedrooms, patios
  • Commercial: Offices, cafes, retail spaces
  • General: Indoor cooling and air circulation
Standards & Compliance
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS/NZS 60598.1
  • AS/NZS 60598.2.2
  • AS/NZS CISPR 14
  • AS/NZS 4268
Environmental Benefits
  • Energy-efficient DC motor reduces power consumption compared to traditional AC fans
  • Multiple speed settings allow for optimized energy use
  • Long-lasting LED lamp options reduce energy use and maintenance
Warranty Information

6 years total warranty: 4 years onsite and 2 years return to base for domestic use.

Available Now

The Atom 48 inch 3 Blade 40W DC Ceiling Fan in white is available for immediate purchase, ideal for residential and commercial indoor cooling applications.
