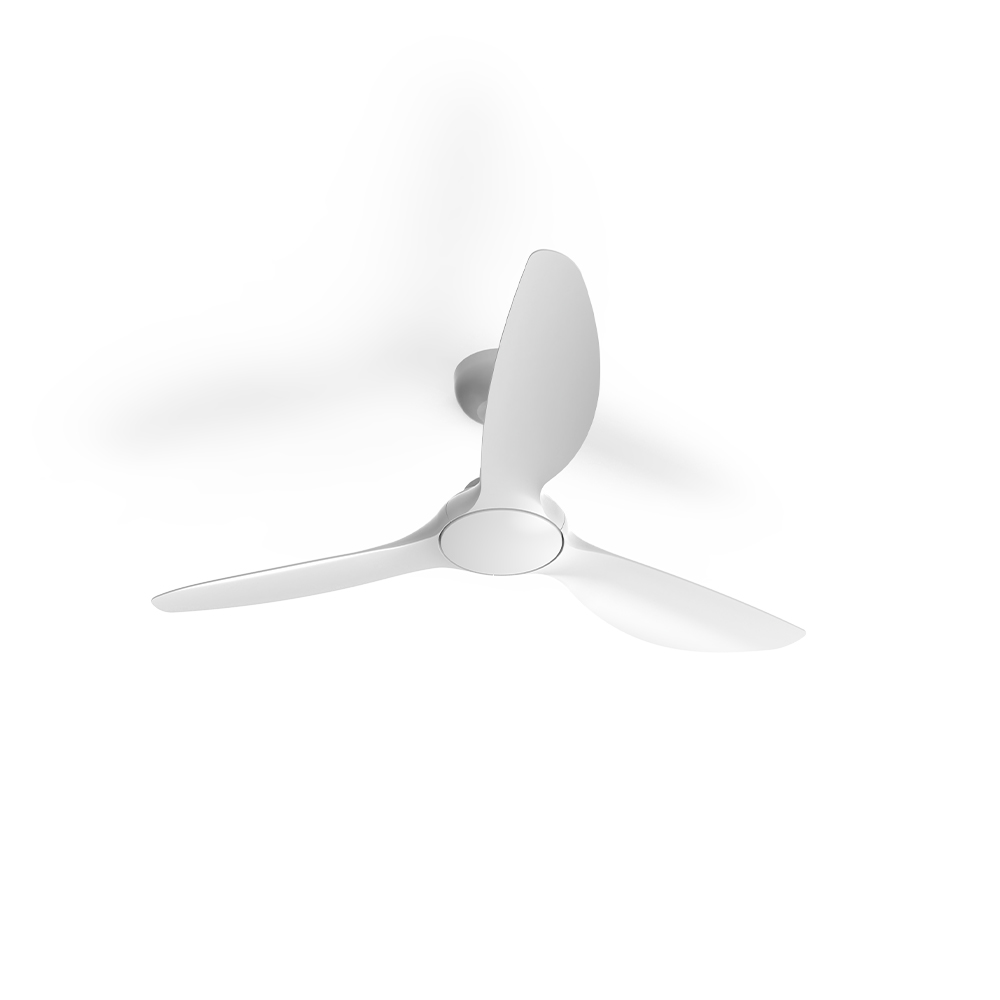

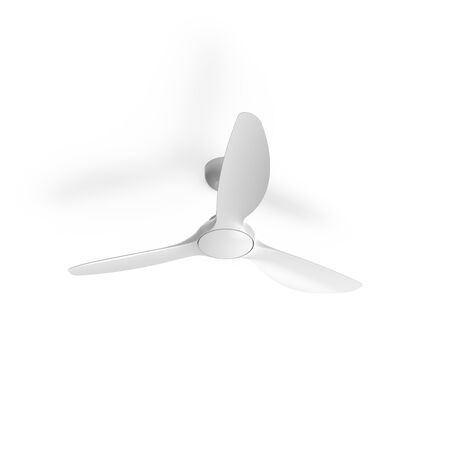

48 Inch 3 Blade 40W DC Ceiling Fan with LED Light | Remote Control | IP20 Rated | by atom
The 48 inch 3 Blade 40W DC Ceiling Fan with LED Light is designed for optimal indoor air circulation and lighting. Featuring a powerful DC motor with 8 speed settings and a tri-colour temperature LED light, this fan is perfect for residential and commercial spaces. With a sleek white finish and remote control operation, it combines style and convenience for any room.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 48 inch DC ceiling fan with LED light, 3 blade ceiling fan, Atom white ceiling fan, energy efficient ceiling fan with remote
Technical Specifications
- Motor Wattage: 40 W
- Motor Type: DC
- Number of Speeds: 8
- RPM Range: 95 to 235
- Airflow Range: 4200 to 12500 m³/hr
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Operating Temperature: -10 to 40 °C
- Blade Material: ABS
- Ceiling Drop: 325 mm
- Ceiling Rake: 15°
- Blade Pitch: 13°
- LED Lamp Power: 19 W
- LED Colour Temperatures: 3000K, 4000K, 5000K
- LED Lumens Output: 1240 lm to 1385 lm depending on CCT
- IP Rating: IP20
- Dimensions (H x L x W): 325mm x 1220mm x 1220mm
- Weight: 6 kg
Key Features
- 48 inch (1220mm) fan size with 3 ABS blades
- 40W DC motor with 8 speed settings
- Remote control operation for convenience
- Tri-CCT LED light with warm white, cool white, and daylight options
- Ceiling rake of 15° and blade pitch of 13° for optimal airflow
- IP20 rated for indoor use
- Operating temperature range from -10 to 40 °C
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
- Residential: Living rooms, bedrooms, patios
- Commercial: Offices, cafes, retail spaces
- General: Indoor cooling and lighting solutions
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS 60598.1
- AS/NZS 60598.2.2
- AS CISPR 15
- AS/NZS 4268
- AS/NZS CISPR 14
Environmental Benefits
- Energy-efficient DC motor reduces power consumption
- LED lighting with tri-colour temperature options minimizes energy use
- Long-lasting components reduce waste and replacement frequency
Warranty Information
6 years total warranty: 4 years onsite and 2 years return to base for domestic use.
Available Now
The Atom 48 inch 3 Blade 40W DC Ceiling Fan with LED Light in white is available for immediate purchase, ideal for enhancing indoor air circulation and lighting in residential and commercial settings.
