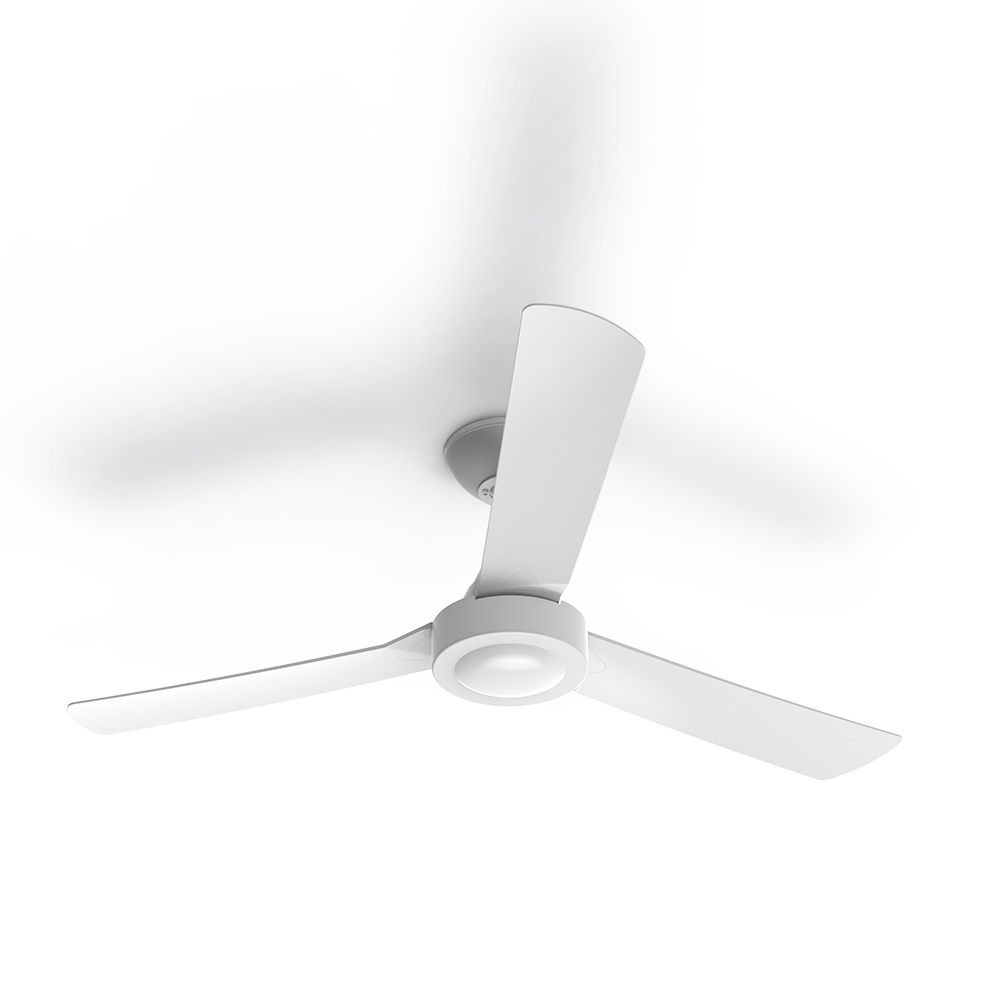

48 Inch 3 Blade 45W AC Ceiling Fan with Light | TRI-CCT Options | Satin White Finish | by atom

BRAND: Atom
SKU: CEDUNA/48/LT/WH
$175.90 List price: $212.90
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
The 48 inch 3 Blade 45W AC Ceiling Fan with Light is perfect for both residential and commercial spaces, offering efficient cooling and versatile lighting with TRI-CCT options. Designed for indoor use, this fan features a satin white finish and a powerful 45W motor with three speed settings, ensuring optimal air movement and energy efficiency.

Alternatively Known As: 48 inch ceiling fan with light, 3 blade ceiling fan, AC ceiling fan with TRI-CCT light, white ceiling fan with wall control

Technical Specifications
  • Motor Wattage: 45 W
  • Motor Type: AC
  • Fan Speeds: 3 (45W at 245 rpm, 37W at 170 rpm, 20W at 110 rpm)
  • Air Movement: 9300 m³/h at highest speed
  • Input Voltage: 230Vac (216Vac - 253Vac range)
  • Input Frequency: 50 Hz
  • Working Temperature Range: -10 to 40 °C
  • Blade Material: ABS
  • Body Material: Metal
  • IP Rating: IP20
  • Ceiling Rake: 15°
  • Blade Pitch: 9°
  • Ceiling Drop: 270 mm
  • Light Colour Temperatures: Warm White 3000K (1250 lm), Cool White 4000K (1400 lm), Daylight 5000K (1350 lm)
  • Colour Rendering Index (CRI): >80
  • Control Type: Wall control
  • Dimensions (H x L x W): 270mm x 1220mm x 1220mm
  • Weight: 6 kg
Key Features
  • 3 blade design with 48 inch (1220mm) fan size
  • 45W AC motor with 3 speeds controlled via wall control
  • Integrated TRI-CCT light with warm white (3000K), cool white (4000K), and daylight (5000K) options
  • Metal body with satin white finish and ABS blades
  • Ceiling rake of 15° and blade pitch of 9° for efficient air movement
  • Ceiling drop of 270 mm
  • IP20 rated for indoor use
Professional Installation Requirements
  • Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and proper mounting.
Applications
  • Residential: Living rooms, bedrooms, kitchens
  • Commercial: Offices, retail spaces, hospitality venues
  • General: Indoor ceiling cooling and lighting
Standards & Compliance
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS/NZS 60598.1
  • AS/NZS 60598.2.2
Environmental Benefits
  • Energy-efficient 45W motor reduces power consumption
  • Multiple fan speeds allow optimized energy use
  • Long-lasting LED lighting with adjustable color temperature reduces need for multiple fixtures
Warranty Information

6 years total warranty: 4 years onsite and 2 years return to base (RTB) for domestic use.

Available Now

The Atom 48 inch 3 Blade 45W AC Ceiling Fan with Light in white is available now for immediate purchase. Ideal for residential and commercial indoor cooling and lighting applications.
