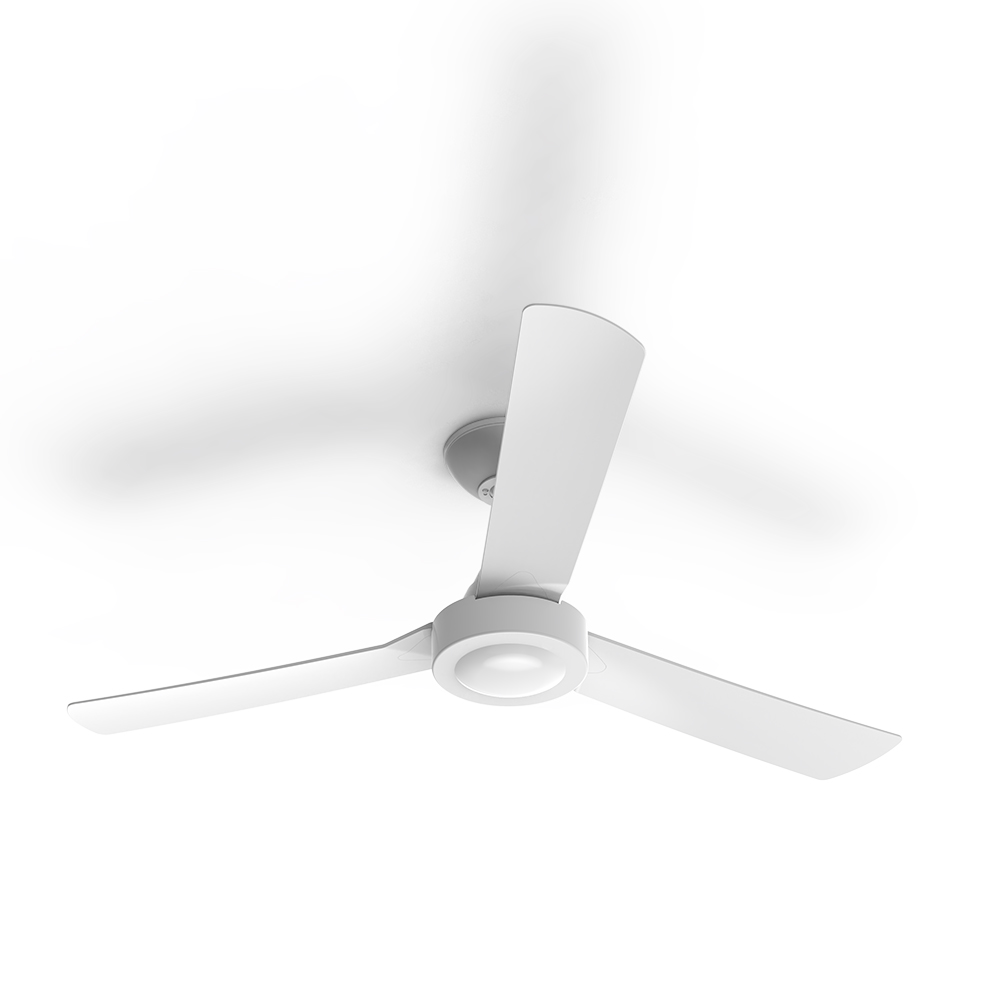

48 Inch 3 Blade 45W AC Ceiling Fan | Satin White Finish | IP20 Rated | by atom

BRAND: Atom
SKU: CEDUNA/48/WH
$142.40 List price: $172.40
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
The 48 inch 3 Blade 45W AC Ceiling Fan in satin white is perfect for enhancing indoor air circulation in both residential and commercial spaces. With a powerful 45W motor and three speed settings, it ensures efficient airflow while maintaining a stylish look. Ideal for living rooms, bedrooms, and offices, this fan features durable ABS blades and a sleek metal body, making it a reliable choice for any environment.

Alternatively Known As: 48 inch ceiling fan, 3 blade ceiling fan, AC ceiling fan, white ceiling fan, 45W ceiling fan

Technical Specifications
  • IP Rating: IP20
  • Body Material: Metal
  • Blade Material: ABS
  • Input Voltage: 230Vac (216Vac - 253Vac range)
  • Input Frequency: 50 Hz
  • Motor Wattage: 45 W
  • Motor Type: AC
  • Number of Speeds: 3
  • Fan Size: 1220 mm (48 inch)
  • Fan Speed 1: 45 W, 245 rpm, 9300 m³/h air movement
  • Fan Speed 2: 37 W, 170 rpm, 7800 m³/h air movement
  • Fan Speed 3: 20 W, 110 rpm, 5700 m³/h air movement
  • Ceiling Rake: 15°
  • Ceiling Drop: 270 mm
  • Blade Pitch: 9°
  • Colour Rendering Index (CRI): >80
  • Colour Temperature Options: Warm White (3000K), Cool White (4000K), Daylight (5000K)
  • Dimensions (H x L x W): 270mm x 1220mm x 1220mm
  • Weight: 6 kg
Key Features
  • 3-speed AC motor with wall control
  • 45W motor power with efficient air movement
  • Blade pitch of 9° for optimal airflow
  • Ceiling rake of 15° and ceiling drop of 270 mm
  • Durable metal body with satin white finish
  • ABS blades for lightweight and durability
  • Tri-CCT lighting with warm white, cool white, and daylight options
  • IP20 rated for indoor use
Professional Installation Requirements
  • Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
  • Residential: Living rooms, bedrooms, kitchens
  • Commercial: Offices, retail spaces, hospitality venues
  • General: Indoor cooling and air circulation
Standards & Compliance
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
Environmental Benefits
  • Energy-efficient 45W AC motor reduces electricity consumption
  • Durable materials extend product lifespan, reducing waste
Warranty Information

6 years total warranty: 4 years onsite and 2 years return to base (RTB) for domestic use.

Available Now

The Atom 48 inch 3 Blade 45W AC Ceiling Fan in white is available now for immediate purchase. Ideal for residential and commercial indoor cooling applications.
