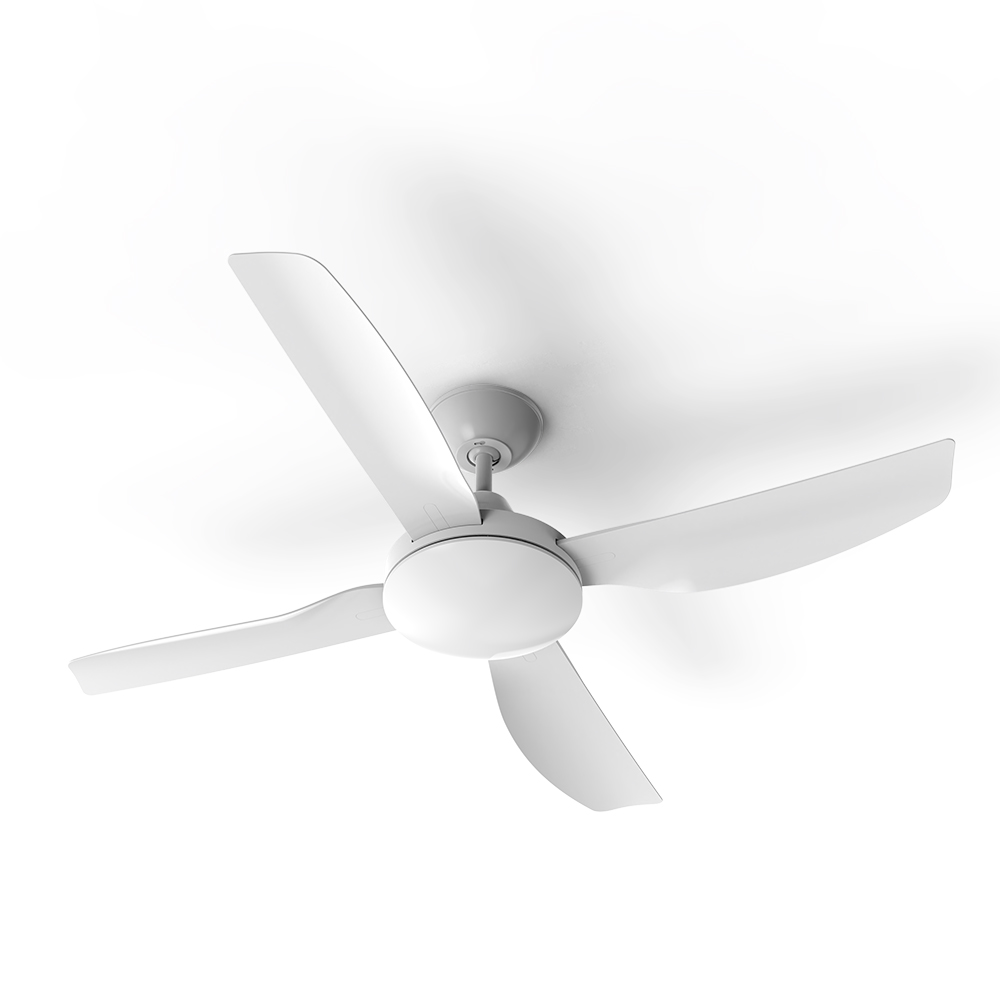

48 Inch 4 Blade 40W DC Ceiling Fan | Energy Efficient | Remote Control | IP20 Rated | by atom
The 48 inch 4 Blade 40W DC Ceiling Fan is designed for optimal air circulation in both residential and commercial spaces. With an energy-efficient DC motor and 8 speed settings, it ensures effective cooling while minimizing power consumption. The sleek black finish and remote control operation make it a stylish and convenient choice for any indoor environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 48 inch DC ceiling fan, 4 blade ceiling fan, black ceiling fan, energy efficient ceiling fan
Technical Specifications
- Motor Wattage: 40 W
- Motor Type: DC
- Number of Speeds: 8
- RPM Range: 140 to 260
- Airflow Range: 6600 to 13000 m³/hr
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Working Temperature Range: -10 to 40 °C
- Blade Material: ABS
- Blade Pitch: 13°
- Ceiling Rake: 15°
- Ceiling Drop: 300 mm
- IP Rating: IP20
- Control: Remote control
- Dimensions (H x L x W): 350mm x 1220mm x 1220mm
- Weight: 6 kg
Key Features
- 40W DC motor with 8 speed settings for efficient air movement
- Remote control for convenient operation
- ABS blade material with 13° blade pitch for optimal airflow
- IP20 rated for indoor use
- Ceiling rake of 15° and ceiling drop of 300mm
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
- Residential: Living rooms, bedrooms, patios
- Commercial: Offices, cafes, retail spaces
- General: Indoor ceiling air circulation and cooling
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS CISPR 14
- AS/NZS 4268
Environmental Benefits
- Energy-efficient DC motor reduces power consumption compared to traditional AC fans
- Multiple speed settings allow for optimized energy use
- Long-lasting ABS blades reduce need for frequent replacements
Warranty Information
6 years total warranty: 4 years onsite and 2 years return to base (RTB) for domestic use.
Available Now
The Atom 48 inch 4 Blade 40W DC Ceiling Fan in black is available now for immediate purchase. Ideal for residential and commercial indoor cooling applications.
