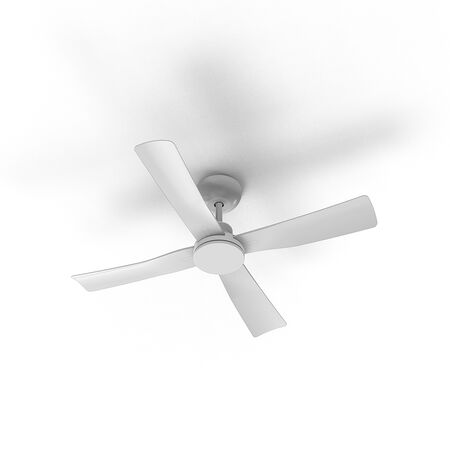

48 Inch 4 Blade 40W DC Ceiling Fan | Satin White Finish | IP20 Rated | by atom
The 48 inch 4 Blade 40W DC Ceiling Fan is designed for efficient air movement in residential and commercial spaces. With a sleek satin white finish and an IP20 rating, it’s perfect for indoor use. Featuring a powerful 40W DC motor with three-speed settings, this fan ensures optimal airflow while being energy-efficient, making it an ideal choice for living rooms, bedrooms, and offices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 48 inch DC ceiling fan, 4 blade ceiling fan, 40W ceiling fan, white ceiling fan, Atom ceiling fan
Technical Specifications
- Motor Wattage: 40 W
- Fan Speeds: 3 (40W, 20W, 5W)
- RPM: 206; 165; 100
- Airflow: Up to 11200 m³/hr
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Working Temperature Range: -10 to 40 °C
- Blade Material: ABS
- Body Material: ABS
- IP Rating: IP20
- Ceiling Rake: 15°
- Ceiling Drop: 330 mm
- Control Type: Wall control
- Dimensions (H x L x W): 330mm x 1220mm x 1220mm
- Weight: 5 kg
Key Features
- 40W DC motor with 3-speed settings for efficient air movement
- Wall control for easy operation
- ABS blade material for durability
- Ceiling rake angle of 15° for optimal airflow
- IP20 rated for indoor use
- Satin white finish to complement various interiors
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
- Residential: Living rooms, bedrooms, kitchens
- Commercial: Offices, retail spaces, hospitality venues
- General: Indoor cooling and air circulation
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS 60598.1
- AS/NZS 60598.2.2
- AS CISPR 15
- AS/NZS CISPR 14
Environmental Benefits
- Energy-efficient DC motor reduces power consumption compared to traditional AC fans
- Long-lasting components reduce waste and replacement frequency
Warranty Information
6 years total warranty: 4 years onsite and 2 years return to base for domestic use.
Available Now
The Atom 48 inch 4 Blade 40W DC Ceiling Fan in white is available for immediate purchase, ideal for residential and commercial indoor cooling applications.
