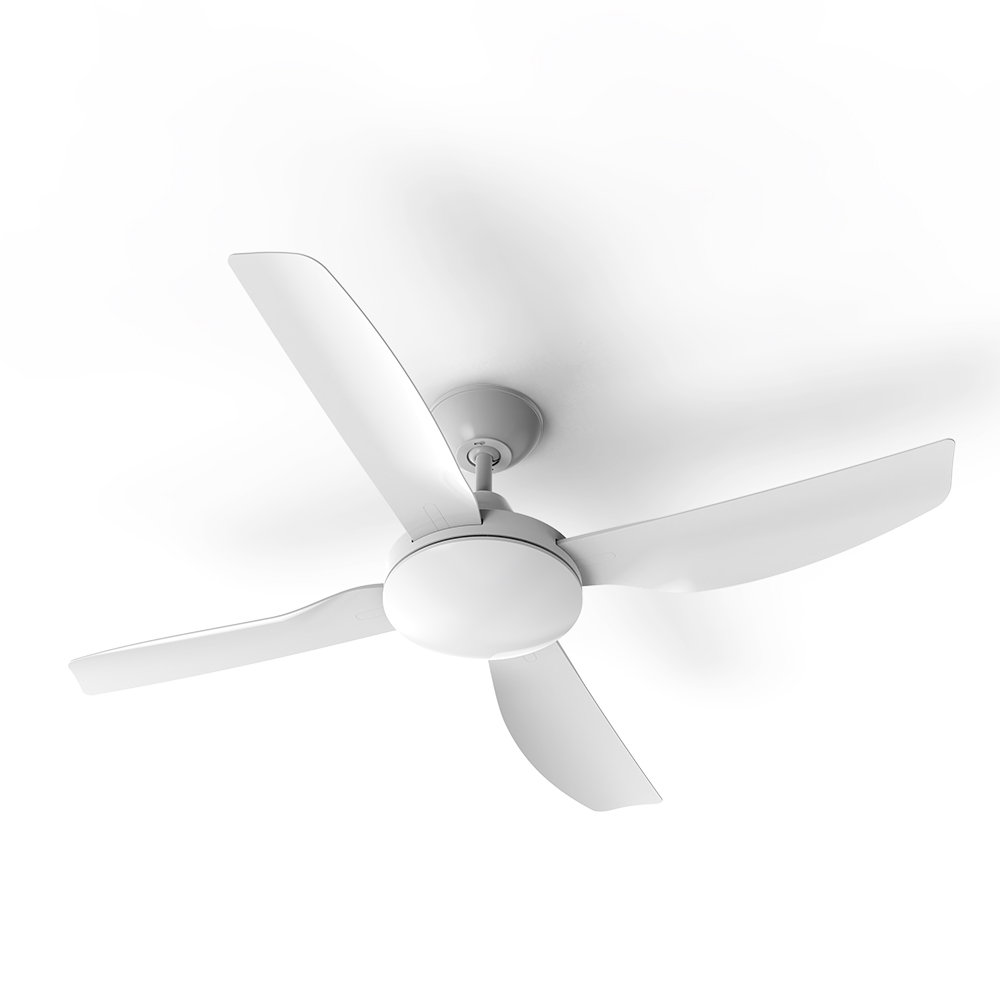

48 Inch 4 Blade 75W AC Ceiling Fan with LED Light | TRI-CCT Options | IP20 Rated | by atom
The 48 inch 4 blade 75W AC ceiling fan with LED light is perfect for enhancing indoor air circulation and lighting in both residential and commercial spaces. Featuring a durable ABS construction and integrated TRI-CCT LED light with warm, cool, and daylight options, this fan operates quietly with three speed settings. Ideal for living rooms, bedrooms, and offices, it combines functionality with modern design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 48 inch ceiling fan with LED light, 4 blade ceiling fan, AC ceiling fan with light, black ceiling fan 48 inch
Technical Specifications
- Motor Wattage: 75W
- Motor Type: AC
- Fan Speeds: 3 (83W/220rpm, 34W/133rpm, 18W/93rpm)
- Airflow: 16300, 9654, 6185 m³/h at speeds 1, 2, 3 respectively
- Input Voltage: 230Vac (-6%/+10%)
- Input Frequency: 50Hz
- Colour Rendering Index (CRI): >80
- Colour Temperature: Warm White (3000K), Cool White (4000K), Daylight (5000K)
- Blade Material: ABS
- Body Material: ABS
- Diffuser Material: Polycarbonate
- Ceiling Rake: 15°
- Blade Pitch: 13°
- Ceiling Drop: 300mm
- IP Rating: IP20
- Control: Wall control
- Dimensions (H x L x W): 350mm x 1220mm x 1220mm
- Weight: 7 kg
Key Features
- 4 blade design with 48 inch (1220mm) span
- 75W AC motor with 3-speed wall control
- Integrated TRI-CCT LED light with warm white, cool white, and daylight options
- ABS blade and body material for durability
- Ceiling rake of 15° and blade pitch of 13°
- IP20 rated for indoor use
- Operating temperature range from -10 to 40 °C
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and optimal fan performance.
Applications
- Residential: Living rooms, bedrooms, kitchens
- Commercial: Offices, retail spaces, hospitality venues
- General: Indoor cooling and lighting solutions
Standards & Compliance
- AS/NZS 60335.1
- AS/NZS 60335.2.80
- AS/NZS 60598.1
- AS/NZS 60598.2.2
- AS/NZS CISPR 14
Environmental Benefits
- Energy-efficient AC motor reduces power consumption
- Long-lasting LED lighting minimizes replacement waste
- Multiple color temperature options to optimize lighting energy use
Warranty Information
6 years total warranty: 4 years onsite and 2 years return to base for domestic use.
Available Now
The Atom 48 inch 4 blade 75W AC ceiling fan with LED light in black is available for immediate purchase, ideal for enhancing indoor air circulation and lighting in residential and commercial settings.
