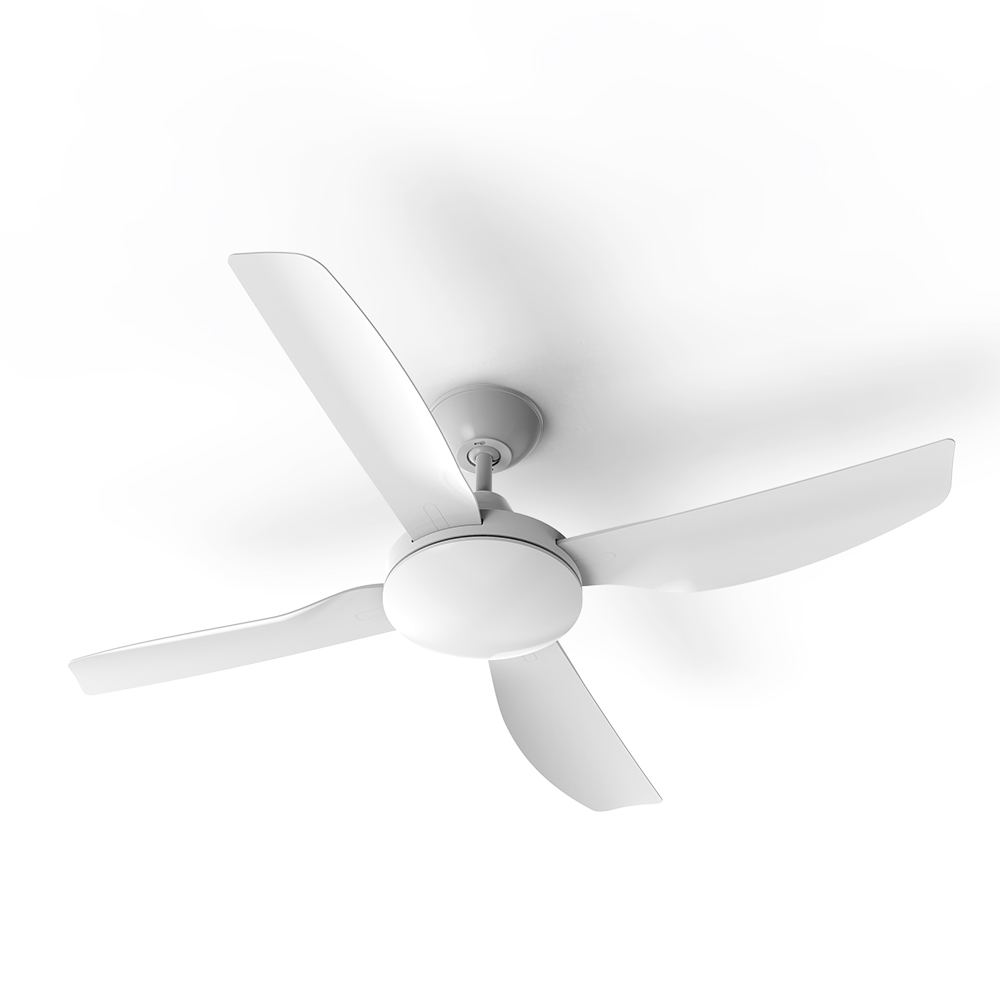

48 Inch 4 Blade 75W AC Ceiling Fan with LED Light | TRI-CCT Options | Wall Control | by atom
The 48 inch 4 Blade 75W AC Ceiling Fan with LED Light is perfect for enhancing air circulation and lighting in both residential and commercial spaces. Featuring a durable ABS construction and integrated TRI-CCT LED light with warm, cool, and daylight options, this fan operates quietly with three speed settings. Ideal for living rooms, bedrooms, and offices, it combines functionality with modern design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 48 inch ceiling fan with LED light, 4 blade ceiling fan, AC ceiling fan with light, white ceiling fan 48 inch
Technical Specifications
- Motor Wattage: 75 W
- Motor Type: AC
- Fan Speeds: 3
- RPM: 270/190/130
- Airflow: 13800/10000/7800 m³/hr
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50Hz
- Colour Rendering Index (CRI): >80
- Colour Temperature: 3000K, 4000K, 5000K
- Lamp Output: 1500-1600 lumens
- Blade Material: ABS
- Body Material: ABS
- IP Rating: IP20
- Ceiling Rake: 15°
- Ceiling Drop: 300 mm
- Blade Pitch: 13°
- Control: Wall control
- Dimensions (H x L x W): 350mm x 1220mm x 1220mm
- Weight: 7 kg
Key Features
- 4 blade design with 48 inch (1220mm) span
- 75W AC motor with 3 speed settings
- Integrated TRI-CCT LED light with warm white, cool white, and daylight options
- Wall control for easy operation
- ABS blade and body material for durability
- Ceiling rake angle of 15° and blade pitch of 13°
- IP20 rated for indoor use
- Operating temperature range from -10 to 40 °C
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and proper mounting.
Applications
- Residential: Living rooms, bedrooms, kitchens
- Commercial: Offices, retail spaces, hospitality venues
- General: Indoor cooling and lighting solutions
Standards & Compliance
- AS/NZS 60335.1 – Safety of household and similar electrical appliances
- AS/NZS 60335.2.80 – Particular requirements for fans
- AS/NZS 60598.1 – Luminaires general requirements and tests
- AS/NZS 60598.2.2 – Particular requirements for recessed luminaires
- AS/NZS CISPR 14 – Electromagnetic compatibility requirements
Environmental Benefits
- Energy-efficient AC motor reduces power consumption
- LED lighting with TRI-CCT reduces need for multiple light fixtures
- Durable ABS materials extend product lifespan
Warranty Information
6 years total warranty: 4 years onsite and 2 years return to base for domestic use.
Available Now
The Atom 48 inch 4 Blade 75W AC Ceiling Fan with LED Light in white is available for immediate purchase, ideal for enhancing air circulation and lighting in residential and commercial indoor environments.
