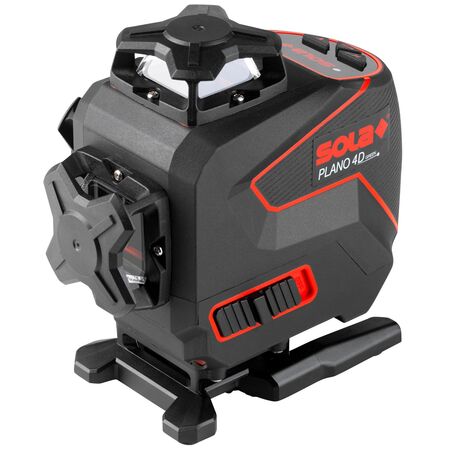

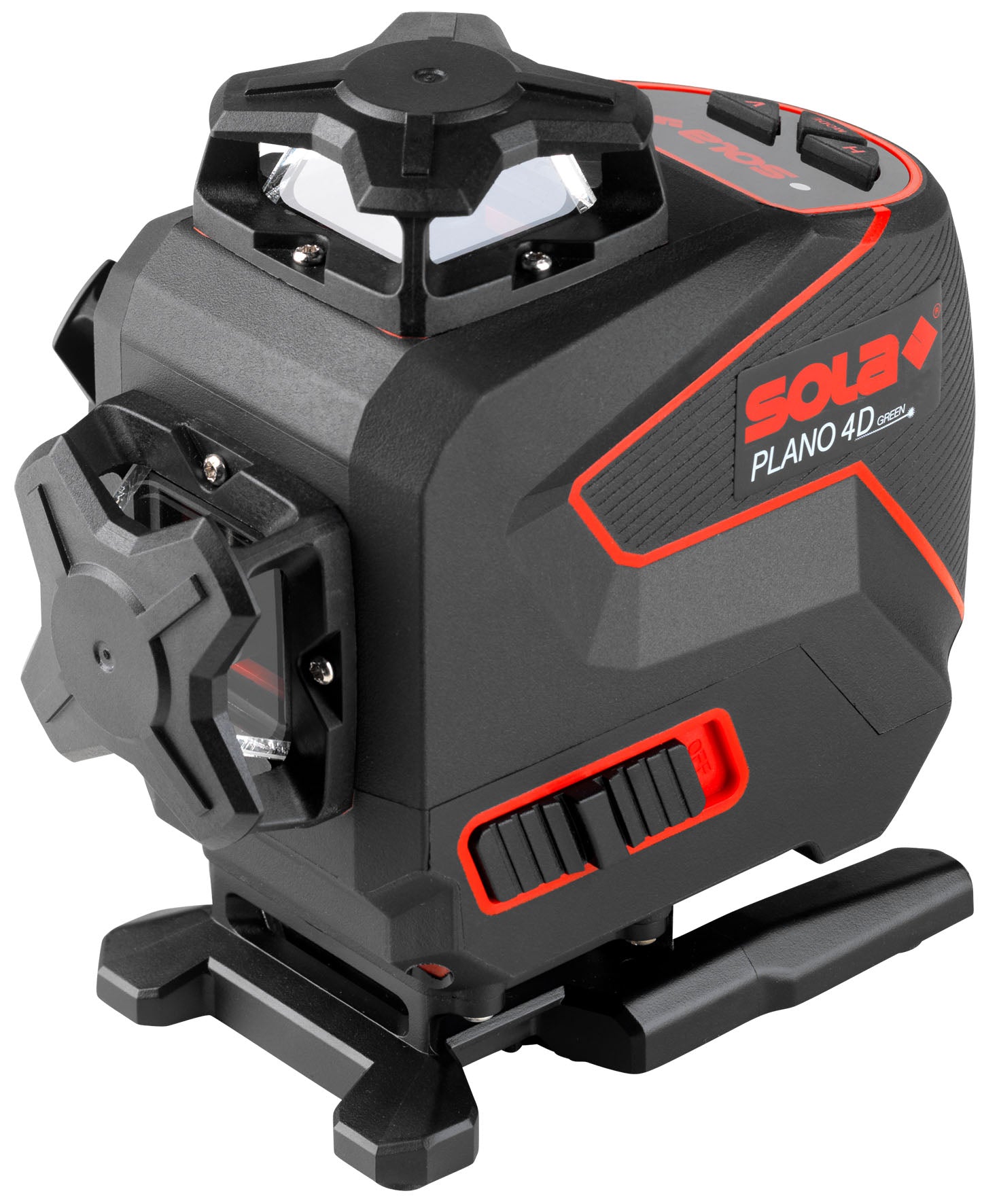

4D Green Laser Level | Two Vertical & One Horizontal 360° Lines | Self-Leveling | IP54 Rated | by Promac
The 4D Green Laser Level features two vertical and one horizontal 360° laser lines, making it perfect for precise horizontal and vertical leveling. With a self-leveling range of ±3° and a measuring tolerance of ±0.30 mm/m, this tool is ideal for construction and flooring applications. Its highly visible green laser technology ensures sharp lines, while the compact design and rechargeable Li-ion batteries provide convenience and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4D Green Laser Level | Two Vertical & One Horizontal 360° Lines | Self-Leveling | IP54 Rated | by Promac
Brand: Promac
SKU: PLANO4DGREEN
Alternatively Known As: 4D Green Laser Level, 360 Degree Laser Level, Self-Leveling Laser Level, Floor Leveling Laser, Vertical and Horizontal Laser Level
Technical Specifications
- Self-leveling with measuring tolerance of ±0.30 mm/m
- Self-leveling range of ±3°
- Application range without handheld receiver: 30 m radius
- Application range with handheld receiver: 80 m radius
- Operating temperature range: -10°C to +50°C
- Tripod adapter size: 1/4 inch
- Protection class: IP54
- Power supply: 2 x 3.6 V (18650) Li-ion batteries (2 x 3450 mAh)
- Operating time: 8 hours at 20°C with all diodes active
- Laser class: 2, DIN EN 60825-1 : 2014
- Output power: < 1.0 mW
- Wavelength: 510 - 530 nm
- Dimensions (H x L x W): 145mm x 95mm x 150mm
- Weight: 1.2 kg
Key Features
- Two vertical 360° and two horizontal 360° laser lines for universal use
- Ground-level horizontal 360° laser line for checking floor bumps and slopes
- Highly visible green laser lines, individually switchable
- Switchable inclination function for angled work
- Compact, lightweight, and handy design
- Switchable pulse function for use with optional receiver REC LGD0 in difficult visibility conditions
- Self-levelling with accuracy of ±0.3 mm/m within ±3° range
- Real Green laser technology for brighter, sharper, and more visible lines
- Flexible power supply with rechargeable Li-ion batteries lasting up to 8 hours
Professional Installation Requirements
- No professional installation required; designed for handheld and tripod use by construction and installation professionals.
Applications
- Horizontal levelling
- Inclination manual
- Vertical levelling
- 90° alignment
- Plumbing
- Aligning
- Precision flooring work
- Furniture installation
- Installation work requiring exact 90° angles
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Rechargeable Li-ion batteries reduce disposable battery waste
- Energy-efficient laser technology minimizes power consumption
- Durable design extends product lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Promac warranty terms for details.
Available Now
The Promac PLANO 4D Green Laser Level is available now for immediate purchase. Ideal for construction, flooring, and precise alignment applications.
