4ft LED Strip Batten | 20W/40W Switchable | Tri-Colour | Prismatic by Lawell Lightning

BRAND: Lawel Lighting

SKU: LWBR2110P

$63.80 List price: $83.20

+ −

30 Days Return Delivery Options

4ft LED strip batten with 20W/40W power selectable and tri-colour temperature—ideal for commercial offices and retail spaces. Built for energy efficiency, with a wide body for easy installation and maintenance.

Description
Attachments

Product Name/Title: 4ft LED Strip Batten - Prismatic

Brand: Lawell Lightning

SKU: LWBR2110P

Alternatively Known As: ['LED batten light', 'LED strip batten', 'Prismatic batten', 'Tri-colour batten', 'Lawell LED batten']

Technical Specifications

Input Voltage: 240V
Wattage: 20W/40W switchable
Lumen Output: 2000/4000lm
IP Rating: IP20
Colour Temperature: Tri-colour (3000K, 4000K, 5700K)
CRI: >80
Charging Method: Intelligent current limited constant voltage charge
Construction: Powder coated steel
Terminal Block: 12mm
Dimming Options: No

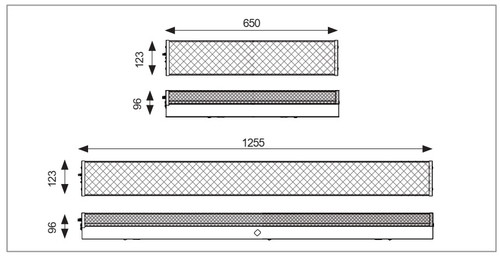

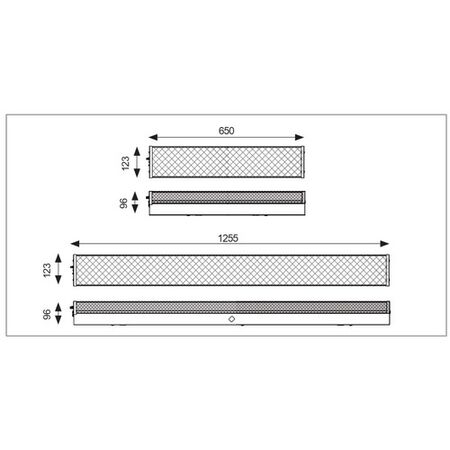

Dimensions (H x L x W): 96mm x 1255mm x 123mm
Weight: 4 kg

Key Features

20W/40W power selectable (4 foot only)
Large terminal block for fast installation and maintenance
Wide body covers junction boxes and provides space for heat-generating components
Tri-colour 3000K/4000K/5700K switchable

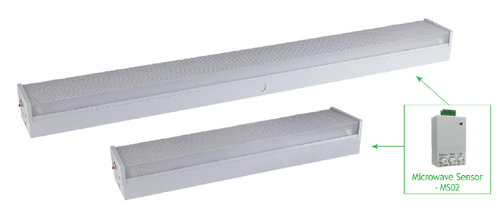

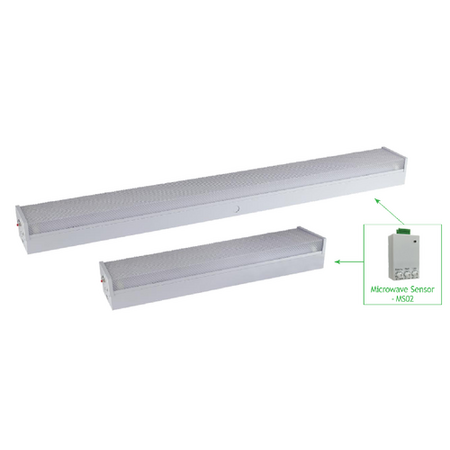

Optional microwave sensor (MS02)
DALI option available as special order

Professional Installation Requirements

Installation by a licensed electrician is required to ensure safety and compliance with Australian standards.

Applications

Commercial offices
Retail spaces
Warehouses
Educational facilities
General indoor lighting

Standards & Compliance

Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment

Environmental Benefits

Energy-efficient LED technology reduces power consumption
Long lifespan minimizes waste and replacement frequency
Mercury-free and environmentally friendly materials

Warranty Information

3 years warranty against manufacturing defects.

Available Now

Available for immediate purchase. Ideal for commercial, retail, and general indoor lighting applications.

(B211xP_Datasheet.pdf, 277 Kb) [Download]

(B210E..IES, 7 Kb) [Download]

Lighting Requirement Calculator

Room Length (m):

Room Width (m):

Room Height (m):
Select Room Type:
Beam Angle (degrees):
Kelvin Rating:
Enter Lumens per Light:

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
