4ft LED Strip Batten | 20W/40W Selectable | Tri-Colour | Wireguard by Lawell Lightning
LED strip batten with 20W/40W power selection and tri-colour temperature—ideal for commercial and industrial lighting. Built for easy installation, with a wide body design and durable powder-coated steel construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4ft LED Strip Batten - Wireguard
Brand: Lawell Lightning
SKU: LWBR2110W
Alternatively Known As: ['LED batten light', 'LED strip batten', 'Wireguard batten', 'Tri-colour batten', 'Commercial LED batten']
Technical Specifications
- Input Voltage: 240V
- Wattage: 20W/40W switchable
- Lumen Output: 2000/4000lm
- IP Rating: IP20
- Colour Temperature: Tri-colour (3000K, 4000K, 5700K)
- CRI: >80
- Operation Mode: Sustained
- Charging Method: Intelligent current limited constant voltage charge
- Construction: Powder coated steel
- Terminal Block: 12mm
- Dimming Options: No

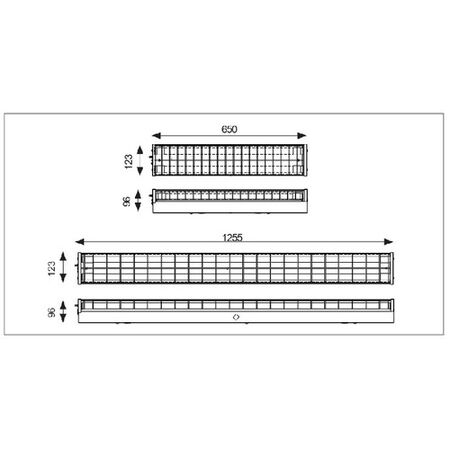

- Dimensions (H x L x W): 96mm x 1255mm x 123mm
- Weight: 4 kg
Key Features
- 20W/40W power selectable (4 foot only)
- Large terminal block for fast installation and maintenance
- Wide body design covers junction boxes and accommodates heat-generating components
- Tri-colour switchable: 3000K, 4000K, 5700K

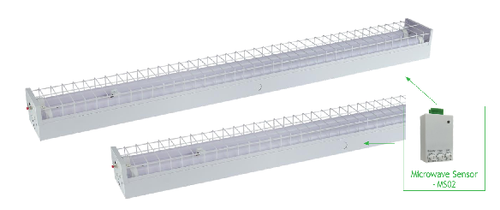

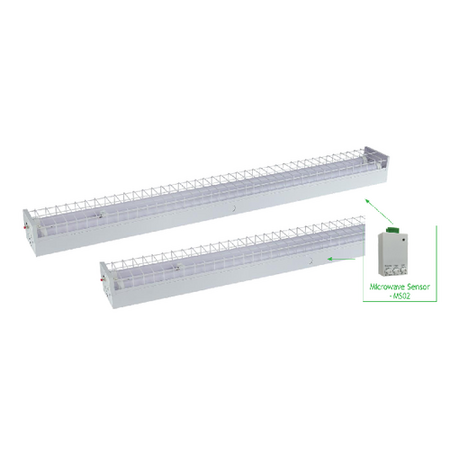

- Optional microwave sensor (MS02) for motion detection
- DALI option available as special order
- Powder coated steel construction for durability
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian electrical standards and optimal performance.
Applications
- Commercial lighting for offices, warehouses, and retail spaces
- Industrial facilities requiring robust and efficient lighting
- Educational institutions and public buildings
- General indoor areas needing bright, reliable illumination
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long lifespan minimizes waste and replacement frequency
- Lower heat output compared to traditional fluorescent battens
Warranty Information
3 years warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for commercial, industrial, and general indoor lighting applications.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
