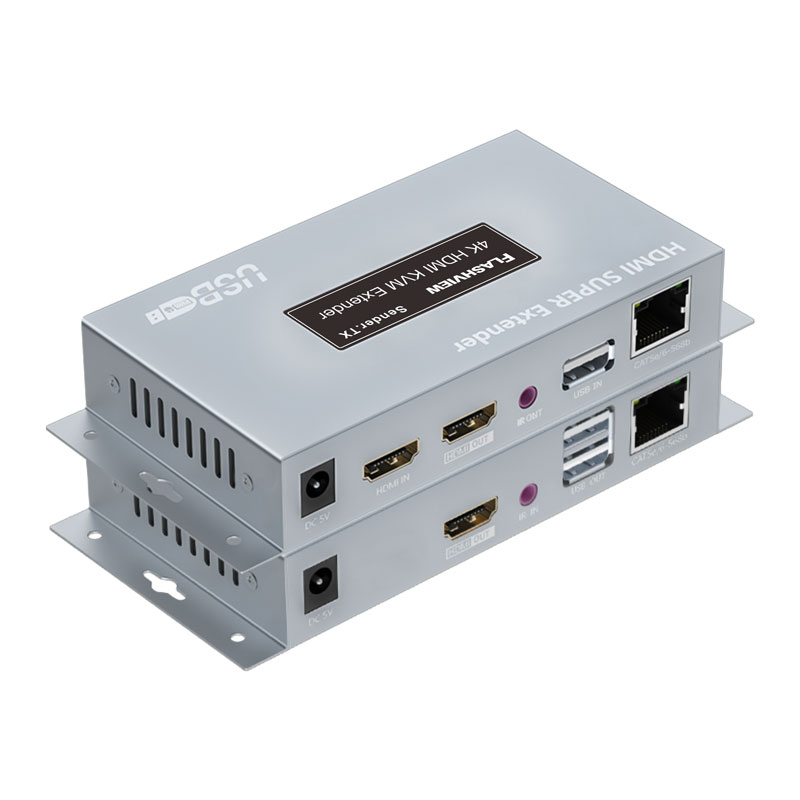

4K HDMI Extender over CAT6 with KVM | 60m at 4K@60Hz | Infrared Remote Control | by Cornick
The 4K HDMI Extender over CAT6 with KVM allows you to extend HDMI video and audio signals up to 60m at 4K@60Hz, making it perfect for home theaters, lecture halls, and retail displays. With KVM support for keyboard, video, and mouse control, plus an infrared remote control for added convenience, this plug-and-play solution is designed for seamless multimedia distribution in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4K HDMI Extender over CAT6 with KVM | 60m at 4K@60Hz | Infrared Remote Control | by Cornick
Brand: Cornick
SKU: HDMI-XK
Alternatively Known As: HDMI over CAT6 Extender, 4K HDMI KVM Extender, HDMI Signal Extender with KVM, HDMI Long Distance Extender
Technical Specifications
- Supports Ultra HD/4K resolution (3840 x 2160 pixels)
- Transmission distance: 60m at 4K@60Hz HDCP2.2, 100m at 4K@30Hz HDCP1.4 over CAT6
- KVM support via USB for keyboard, video, and mouse
- Infrared emitter and receiver included for remote control
- Power supply: 5VDC 1A for transmitter and receiver
- Plug-and-play installation
- Dimensions (H x L x W): 30mm x 90mm x 120mm
- Weight: 0.3 kg
Key Features
- Supports Ultra HD/4K resolution up to 3840 x 2160 pixels
- Transmits HDMI signal up to 60m at 4K@60Hz via CAT6 cable with HDCP2.2
- Transmits HDMI signal up to 100m at 4K@30Hz via CAT6 cable with HDCP1.4
- KVM support via USB for keyboard, video, and mouse control
- Infrared emitter and receiver for IR remote control functionality
- Easy plug-and-play installation

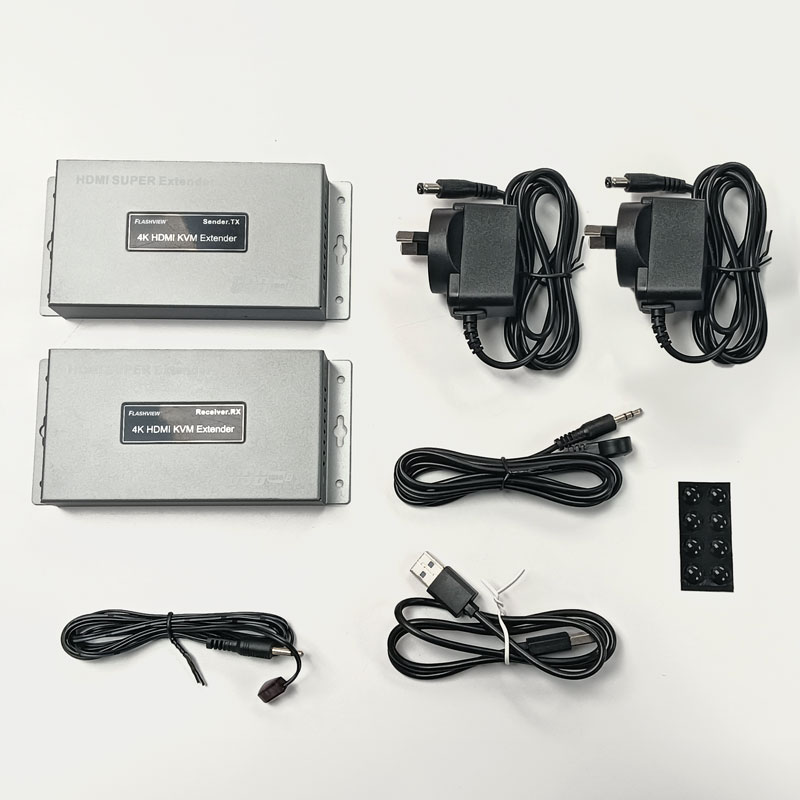

- Includes power supplies for both transmitter and receiver
Professional Installation Requirements
- Professional installation is recommended to ensure optimal cable management and signal integrity, especially for long-distance setups.
Applications
- Extending HDMI video/audio signals over long distances in CCTV video output
- Lecture halls for remote display connections
- Home theatres for enhanced video distribution
- Retail environments for digital signage
- Clubs and business foyers for multimedia display
- Data control centres for remote monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces the need for multiple HDMI cables and devices, minimizing electronic waste
- Supports energy-efficient transmission over CAT6 cables
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cornick 4K HDMI Extender over CAT6 with KVM is available now for immediate purchase. Ideal for surveillance, commercial, and home theatre applications.
