4K HDMI Splitter 2 Way | 18Gbps | Built-in Downscaler by Matchmaster
4K HDMI splitter with 18Gbps bandwidth and built-in downscaler—ideal for home theaters and conference rooms. Built for seamless 4K distribution, with energy-efficient design for reduced power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

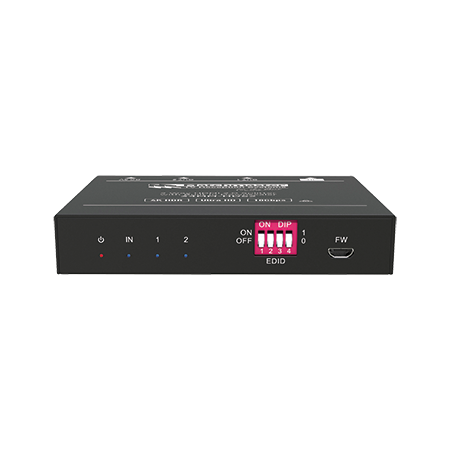

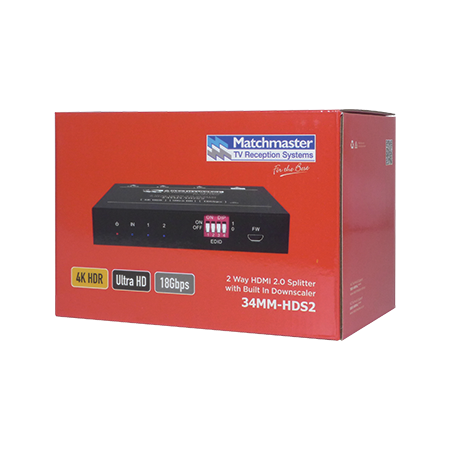

Product Name/Title: 2 Way 4K High Speed HDMI® Splitter 18Gbps with Built-in Downscaler
Brand: Matchmaster
SKU: 34MM-HDS2
Alternatively Known As: HDMI 4K Splitter, 2 Port HDMI Splitter, HDMI Signal Splitter with Downscaler, 4K HDMI Distribution Amplifier
Technical Specifications

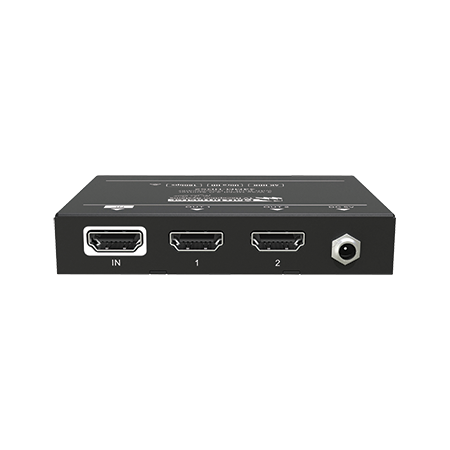

- Video Input: 1 HDMI Type-A female
- Video Output: 2 HDMI Type-A female
- HDMI Input Resolution: Up to 4Kx2K@60Hz 4:4:4 8bit
- HDMI Output Resolution: Up to 4Kx2K@60Hz 4:4:4 8bit
- HDMI Standard: 2.0
- HDCP Version: 2.3, 1.4 compliant
- CEC: Supported
- Bandwidth: 18Gbps
- EDID Control: 4-pin DIP switch with 8 settings
- Power Supply: Input 100V~240V AC; Output 5V DC 1A
- Power Consumption: 1.5W (Max)
- Operating Temperature: -10°C to +55°C
- Storage Temperature: -25°C to +70°C
- Relative Humidity: 10%-90%
- Recommended HDMI Cable Length: 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, 1080p ≤ 20m
- Dimensions (H x L x W): 18mm x 70mm x 96mm
- Weight: 0.185 kg
Key Features
- HDMI® 4K High Speed 18Gbps and HDCP 2.2 compliant
- Supports resolutions up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4
- Built-in scaler to downscale 4K signal to 1080p for compatibility
- EDID control with eight settings and HDCP switch
- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- Threaded DC power port for secure power supply connection
- Compact design for easy and flexible installation
Professional Installation Requirements
- Installation by a qualified AV technician or electrician is recommended to ensure proper setup and compliance with electrical safety standards.
Applications
- Home entertainment systems for multi-display setups
- Professional AV installations requiring 4K signal distribution
- Conference rooms and classrooms with mixed resolution displays
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Efficient signal distribution reduces the need for multiple source devices, lowering energy consumption.
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster 2 Way 4K High Speed HDMI® Splitter 18Gbps with Built-in Downscaler is available now for immediate purchase. Ideal for home entertainment, professional AV setups, and mixed resolution display environments.
