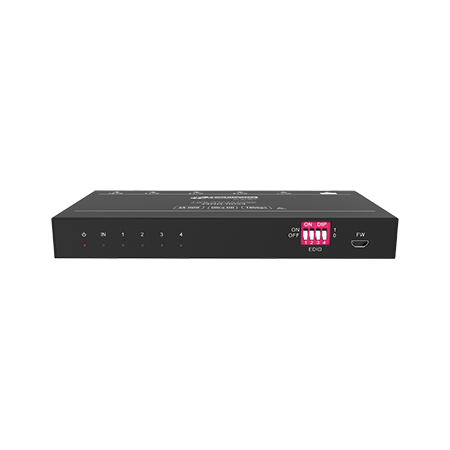

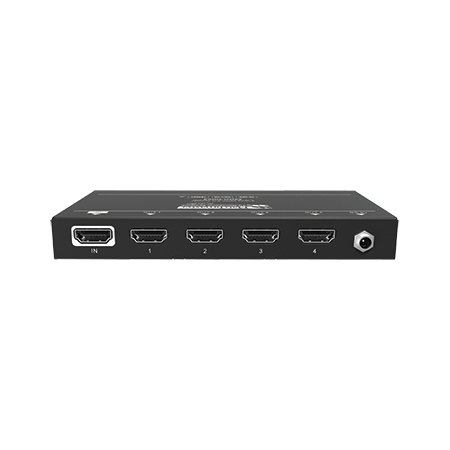

4 Way 4K High Speed HDMI® Splitter with Built-in Downscaler

4K HDMI Splitter 4 Way | Built-in Downscaler | HDCP 2.2 Compliant | Metal Casing by Matchmaster

BRAND: Matchmaster

SKU: 34MM-HDS4

$228.90 List price: $277.00

+ −

30 Days Return Delivery Options

4K HDMI splitter with built-in downscaler and HDCP 2.2 compliance—ideal for home theaters and commercial presentations. Connect up to 4 devices to a single source, with durable metal casing for long-lasting performance.

Description
Attachments

Product Name/Title: 4 Way 4K High Speed HDMI® Splitter with Built-in Downscaler

Brand: Matchmaster

SKU: 34MM-HDS4

Alternatively Known As: HDMI splitter 4K, 4 port HDMI splitter, HDMI 4 way splitter, 4K HDMI distribution amplifier

Technical Specifications

HDMI Version: High Speed HDMI®
HDCP Compliance: HDCP 2.2
Bandwidth: 18Gbps
Maximum Resolution: 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4
Audio Support: LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio
EDID Control: 8 settings
Power Port: Threaded DC for secure connection
Dimensions (H x L x W): 25mm x 80mm x 120mm
Weight: 0.3 kg

Key Features

High Speed HDMI® with HDCP 2.2 compliance supporting 18Gbps throughput
Supports resolutions up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4
Built-in downscaler to convert 4K signals to 1080p for compatibility with different display resolutions
EDID control with eight settings and HDCP switch
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Threaded DC power port for secure power supply connection
Compact design for easy and flexible installation

Professional Installation Requirements

Installation by a qualified technician is recommended to ensure proper setup and compliance with electrical safety standards.

Applications

Home entertainment systems for sharing HDMI sources across multiple screens
Office presentations requiring multiple display outputs
Retail and commercial digital signage setups

Standards & Compliance

Complies with AS/NZS 60950 – Safety of IT and Communication Equipment

Environmental Benefits

Reduces the need for multiple source devices by sharing one HDMI source across multiple displays, lowering electronic waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Matchmaster 4 Way 4K High Speed HDMI® Splitter with Built-in Downscaler is available now for immediate purchase. Ideal for home, office, and commercial AV applications.

Brochure (34mm-hds4_brochure.pdf, 417 Kb) [Download]

Manual (34mm-hds4_manual.pdf, 299 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
