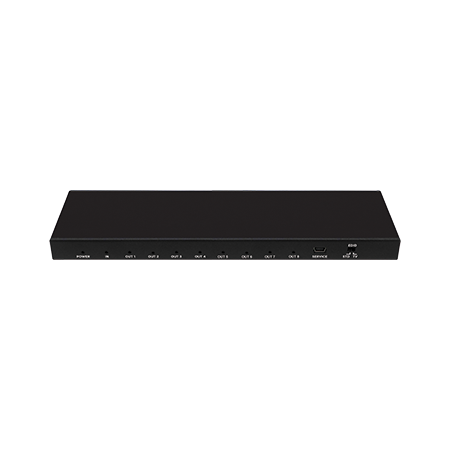

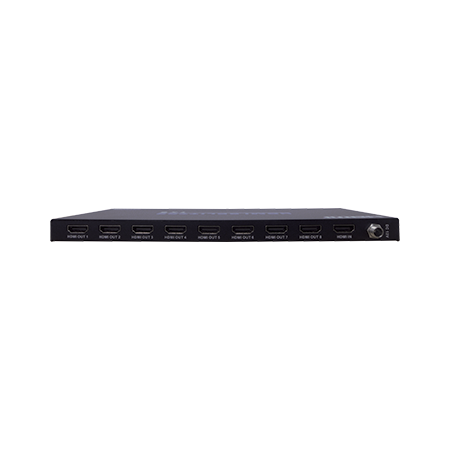

8 Way 4K High Speed HDMI® Splitter 18Gbps

4K HDMI Splitter 8 Way | 18Gbps Bandwidth | Plug & Play | Metal Housing by Matchmaster

BRAND: Matchmaster

SKU: 34MM-HDS8

$415.80 List price: $503.30

+ −

30 Days Return Delivery Options

4K HDMI splitter with 8 outputs and 18Gbps bandwidth—ideal for home theaters and commercial presentations. Built for easy setup, with durable metal housing and energy-efficient design.

Description
Attachments

Product Name/Title: 8 Way 4K High Speed HDMI® Splitter 18Gbps

Brand: Matchmaster

SKU: 34MM-HDS8

Alternatively Known As: HDMI splitter 8 port, 4K HDMI splitter, HDMI distribution amplifier, 18Gbps HDMI splitter

Technical Specifications

Throughput: 18Gbps
HDCP Compliance: HDCP 2.2
Maximum Resolution: 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4
Audio Support: LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio
EDID Control: Standard (1080p) and TV (copy EDID from output 1)
Power Port: Threaded DC for secure connection
Dimensions (H x L x W): 30mm x 100mm x 150mm
Weight: 0.3 kg

Key Features

HDMI® 4K High Speed 18Gbps and HDCP 2.2 compliant
Supports resolutions up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4
EDID control with 2 settings: standard (1080p) mode and TV (copy EDID from output 1) mode
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Threaded DC power port for secure power supply connection
Compact design for easy and flexible installation

Professional Installation Requirements

Professional installation is recommended to ensure proper setup and compliance with electrical safety standards.

Applications

Home entertainment systems for sharing HDMI® source across multiple screens
Office presentations and digital signage requiring multiple HDMI® outputs
Integration with HDMI® extenders or AOC HDMI® fibre cables for remote displays

Standards & Compliance

Complies with AS/NZS 60950 – Safety of IT and Communication Equipment

Environmental Benefits

Reduces the need for multiple source devices by sharing one HDMI® source across multiple displays
Energy-efficient design minimizes power consumption during operation

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Matchmaster 8 Way 4K High Speed HDMI® Splitter 18Gbps is available now for immediate purchase. Ideal for home entertainment, office presentations, and multi-screen digital signage applications.

Brochure (34mm-hds8_brochure.pdf, 399 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
