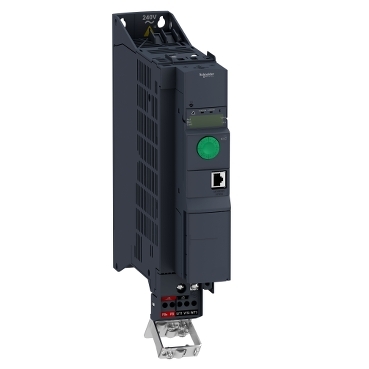

4kW 400V 3PH Book Control Variable Speed Drive | Compact Design | Integrated EMC Filter | by Clipsal
The 4kW 400V 3PH Book Control Variable Speed Drive is engineered for robust motor control in industrial applications. With a compact design and integrated EMC filter, it supports precise speed adjustments for pumps, fans, and conveyor systems. Ideal for licensed electricians, this drive enhances energy efficiency while minimizing mechanical wear, ensuring long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4kW 400V 3PH Book Control Variable Speed Drive | Compact Design | Integrated EMC Filter | by Clipsal
Brand: Clipsal
SKU: SCHATV320U40N4B
Alternatively Known As: Variable Speed Drive, VSD, Frequency Inverter, Motor Controller, ATV320, Schneider ATV320U40N4B
Technical Specifications
- Power Rating: 4kW
- Input Voltage: 380-500V AC, 3-phase
- Output Voltage: 0-500V AC, 3-phase
- Input Frequency: 50/60Hz
- Output Frequency: 0.1-599Hz
- Control Type: Variable speed (V/Hz, sensorless vector control)
- Enclosure: IP20
- Integrated EMC filter
- Operating Temperature: -10°C to +50°C
- Communication: Modbus, CANopen (integrated)
- Dimensions (H x L x W): 260mm x 232mm x 72mm
- Weight: 3.5 kg
Key Features
- 4kW power rating for robust motor control
- Supports 400V three-phase input
- Variable speed drive for precise motor speed adjustment
- Compact book-style design for easy panel integration
- Integrated control functions for flexible operation
- Enhanced energy efficiency and motor protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with industrial motor control systems to ensure compliance with safety standards.
Applications
- Industrial automation
- Pumps and fans
- Conveyor systems
- HVAC systems
- General motor control in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces power consumption and operational costs
- Minimizes mechanical wear, extending equipment lifespan
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 4kW 400V 3PH Book Control Variable Speed Drive (SCHATV320U40N4B) is available for immediate purchase. Ideal for industrial automation, pumps, fans, and conveyor systems.
