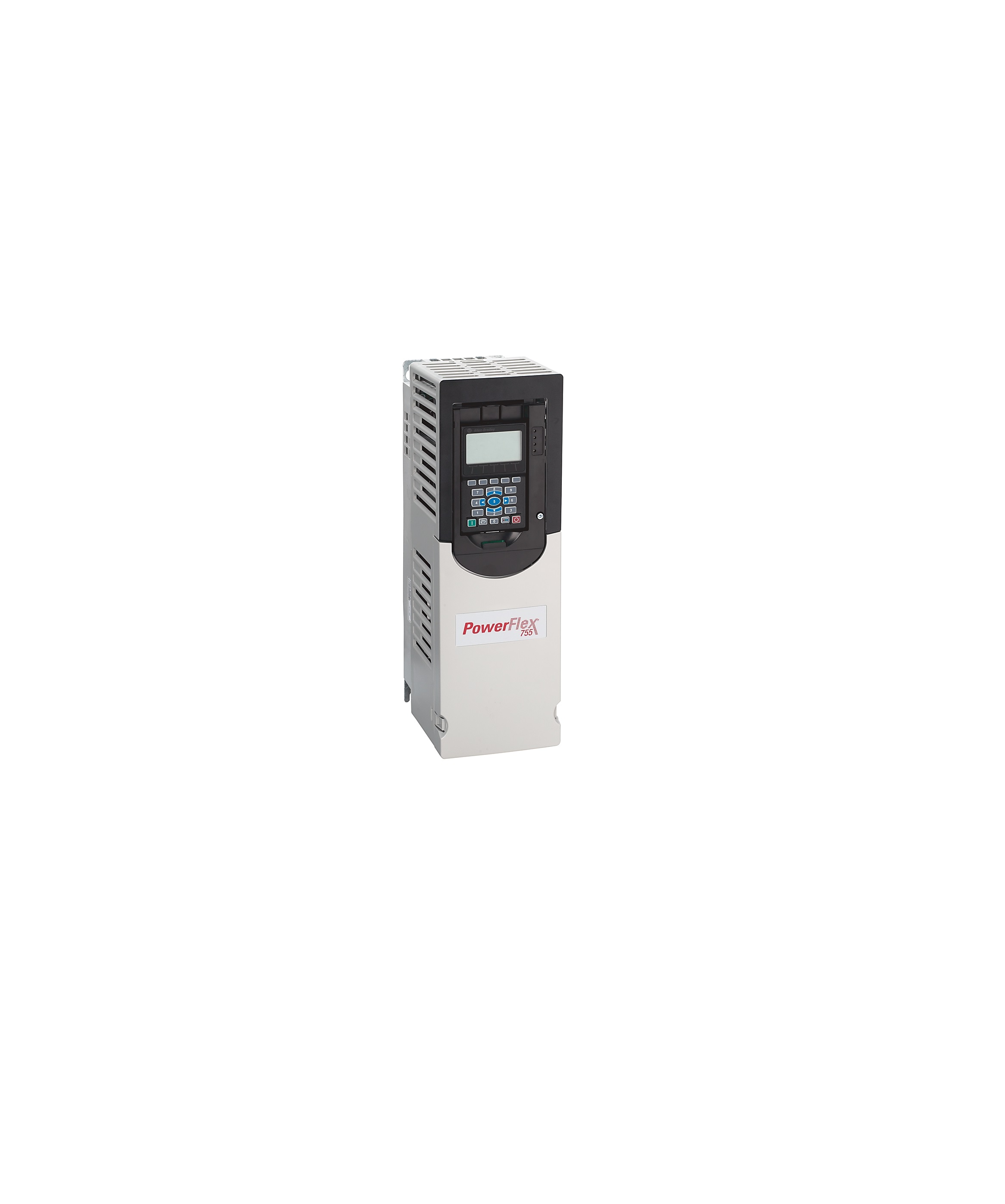

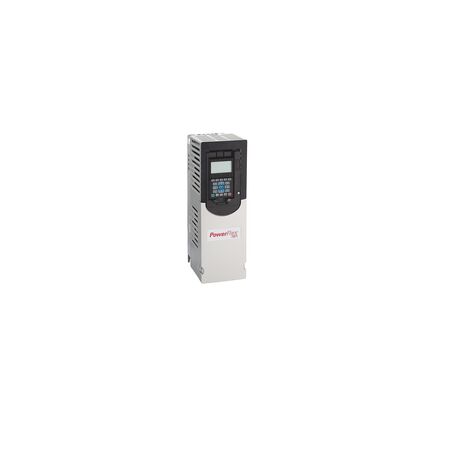

4kW Variable Frequency Drive | 400 VAC | Embedded Ethernet/IP & Forced Air Cooling | Frame 2 by Allen-Bradley

BRAND: Allen-Bradley
SKU: 20G11NC8P7JA0NNNNN
$3,707.60 List price: $4,111.40
+ −
30 Days Return Delivery Options
4kW variable frequency drive with 400 VAC and embedded Ethernet/IP—ideal for industrial motor control and automation systems. Built for efficiency, with forced air cooling and standard protection features.

Product Name/Title: 4kW Variable Frequency Drive | 400 VAC | Embedded Ethernet/IP & Forced Air Cooling | Frame 2 by Allen-Bradley

Brand: Allen-Bradley

SKU: 20G11NC8P7JA0NNNNN

Alternatively Known As: PowerFlex 755 AC Drive, Allen Bradley VFD, 4kW Variable Frequency Drive, 20G11NC8P7JA0NNNNN VFD

Technical Specifications
  • Power Rating: 4 kW
  • Current: 8.7 Amps
  • Voltage: 400 VAC, 3 Phase
  • Frame Size: Frame 2
  • Cooling: Forced Air
  • Input Type: AC with DC terminals
  • Communication: Embedded Ethernet/IP
  • Protection: Standard with filtered input and CM jumper installed
  • Output Type: DB Transistor
  • Human Interface Module: Not included
  • Dimensions (H x L x W): 250mm x 200mm x 150mm
  • Weight: 10 kg
Key Features
  • Embedded Ethernet/IP for network communication
  • Standard protection with forced air cooling
  • AC input with DC terminals
  • Open type enclosure
  • Filtered input with CM jumper installed
  • DB transistor output
  • Frame 2 size
  • No Human Interface Module (HIM) included
Professional Installation Requirements
  • Installation must be performed by a qualified electrician experienced with industrial drives to ensure compliance with electrical standards and safety.
Applications
  • Industrial motor control
  • Automation systems
  • Manufacturing process control
  • Conveyor systems
  • Pumps and fans control
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Energy-efficient motor control reduces power consumption
  • Improves process efficiency leading to lower emissions
  • Supports variable speed operation to minimize energy waste
Warranty Information

1 year warranty covering manufacturing defects and workmanship.

Available Now

This product available now for immediate purchase.
