4.0m Octagonal Hinged Light Pole | Ø60mm Top Diameter | 4mm Thick Steel | Easy Access Maintenance | by Cornick

BRAND: Cornick
SKU: SLR-POL4-2
$1,188.30 List price: $1,438.20
Free pick up (over 25 kg or over 1 meter)
For delivery quote message
30 Days Return Delivery Options

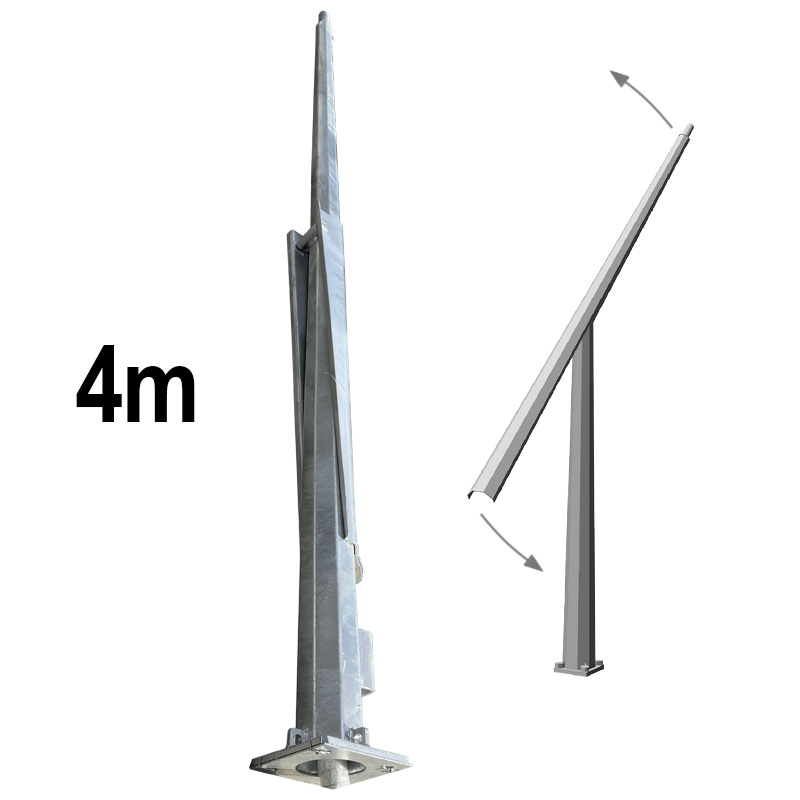

The 4.0m Octagonal Hinged Light Pole is designed for versatile applications such as street lighting, CCTV surveillance, and solar-powered systems. With a robust 4mm thick steel construction and a Ø60mm top diameter for easy mounting, this pole features a hinge height of 1840mm for convenient access and maintenance. Ideal for professional installations, it complies with AS/NZS 1170 standards for structural safety.

Product Name/Title: 4.0m Octagonal Hinged Light Pole | Ø60mm Top Diameter | 4mm Thick Steel | Easy Access Maintenance | by Cornick

Brand: Cornick

SKU: SLR-POL4-2

Alternatively Known As: Hinged Light Pole, Octagonal Light Pole, Solar Light Pole, CCTV Pole

Technical Specifications

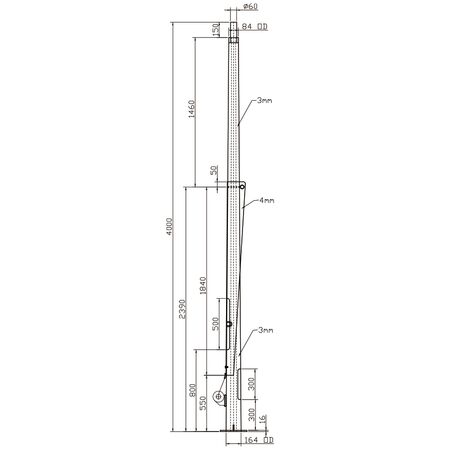

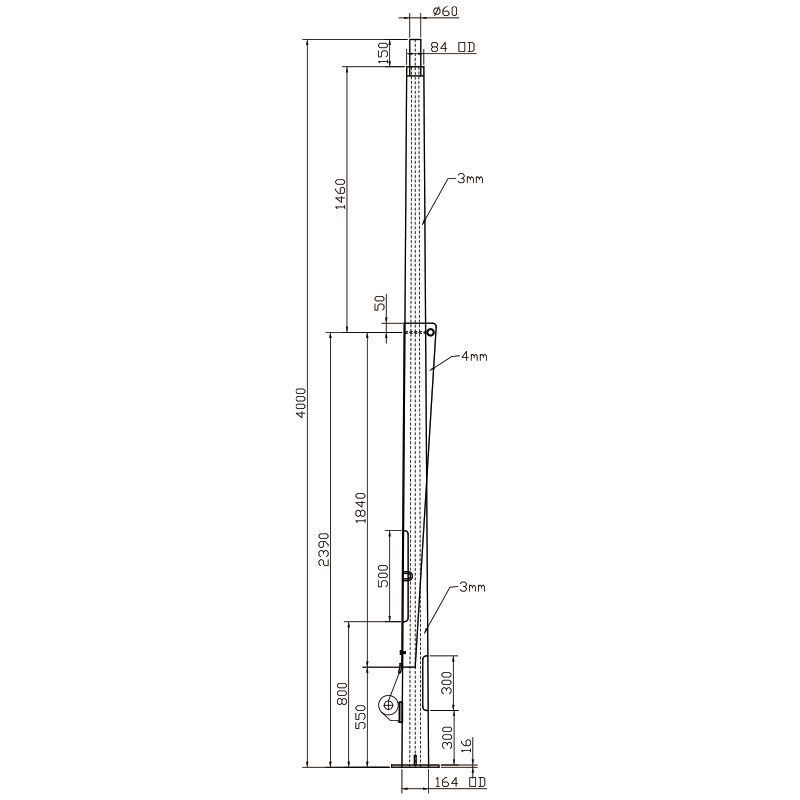

  • Top diameter: Ø60mm
  • Pole thickness: 4mm (3mm after hinge)
  • Bottom diameter: Ø164mm
  • Hinge height: 1840mm

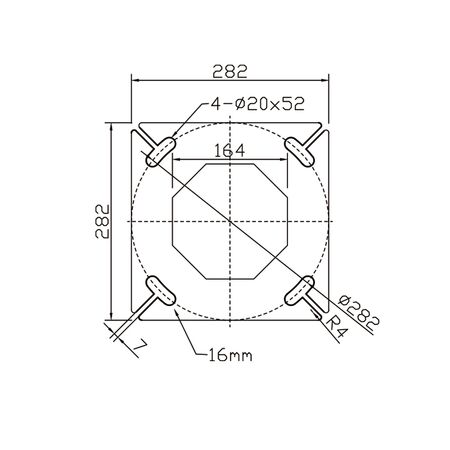

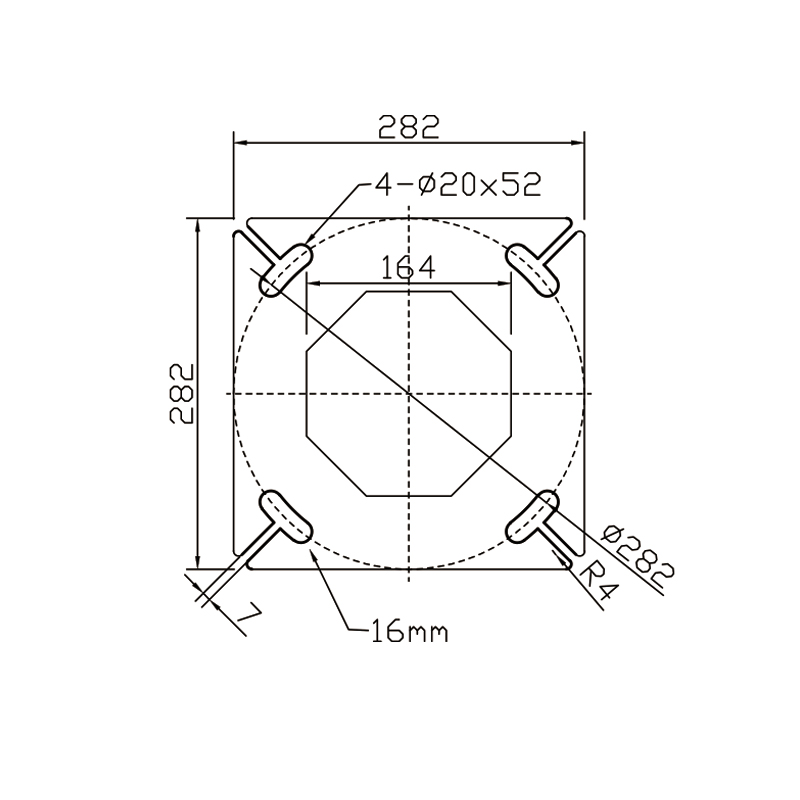

  • Bolt template size: 282 x 282mm x 16mm

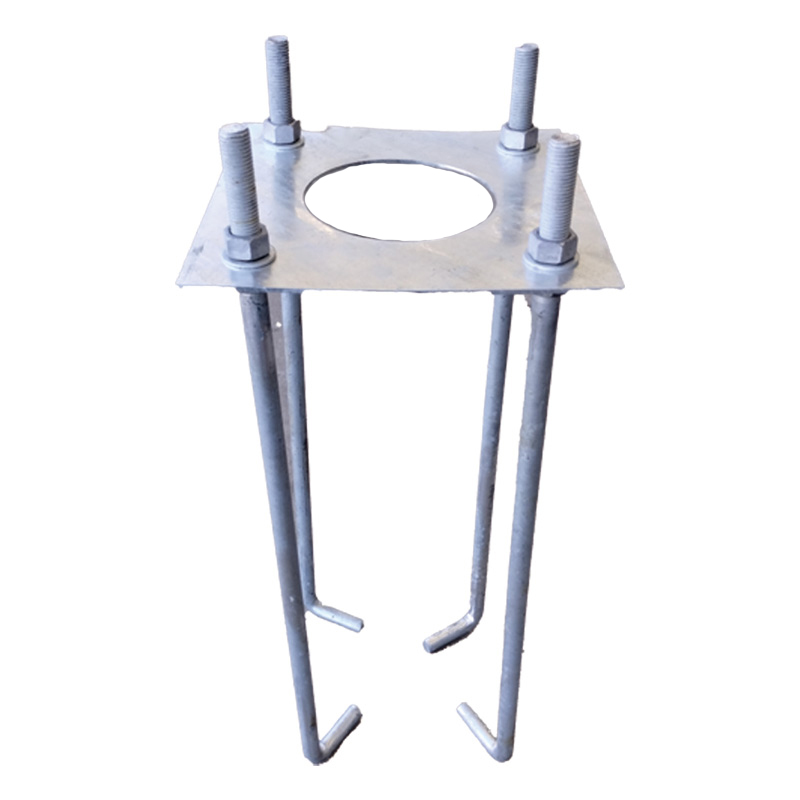

  • Anchor bolts: 4 x M20 1000mm hot-dipped galvanized

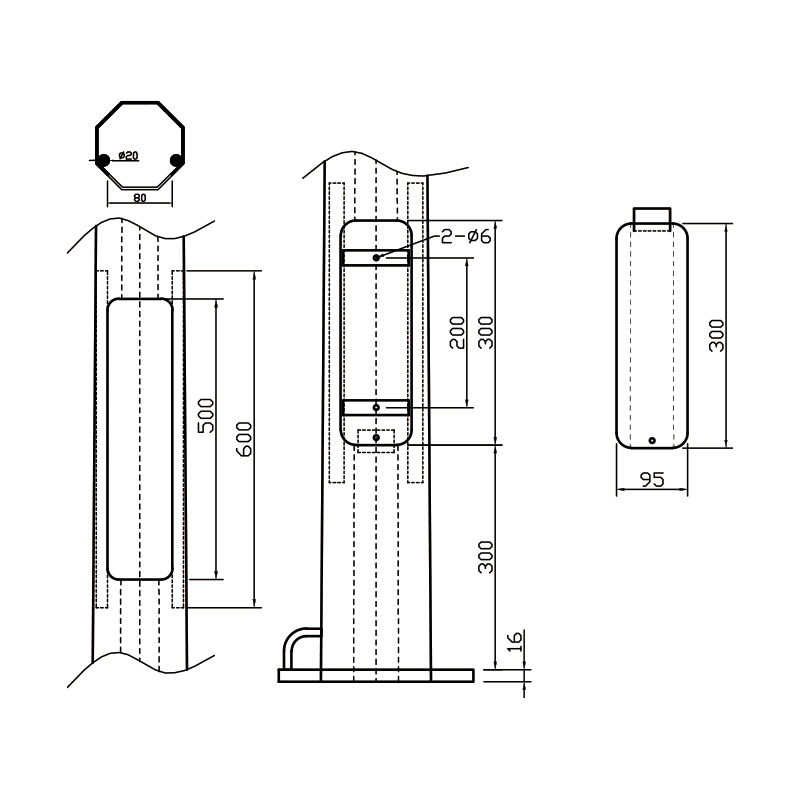

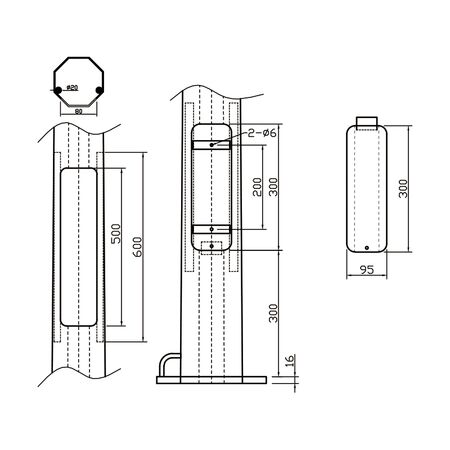

  • Access panel at base for maintenance
  • Dimensions (H x L x W): 4000mm x 164mm x 164mm
  • Weight: 92 kg
Key Features
  • 4.0m octagonal hinged light pole design
  • Ø60mm top diameter for mounting lights or panels
  • 4mm thick pole, 3mm thickness after hinge
  • Ø164mm bottom diameter
  • Hinge height of 1840mm for easy access
  • Includes bolt template (282 x 282mm x 16mm) hot-dipped galvanized
  • Includes 4 x M20 1000mm hot-dipped galvanized anchor bolts
  • Access panel at base for easy maintenance
Professional Installation Requirements
  • Professional installation by qualified personnel is required to ensure structural safety and compliance with local regulations.
Applications
  • Street lighting
  • CCTV surveillance systems
  • Solar powered lighting and equipment
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Supports solar powered systems reducing reliance on grid electricity
  • Durable galvanized steel construction extends product life and reduces waste
Warranty Information

Warranty details available upon request from the manufacturer.

Available Now

The Cornick 4.0m Octagonal Hinged Light Pole is available for immediate purchase, ideal for solar powered systems, street lighting, and CCTV surveillance applications.
