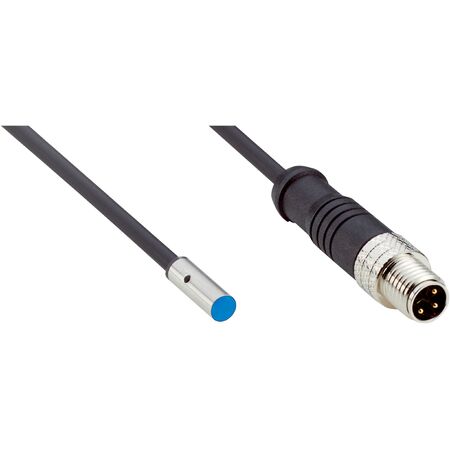

4mm Proximity Sensor | Short-body Stainless Steel | IP67 Rated | 1.5mm Sensing Range | by SICK
The 4mm Proximity Sensor is designed for industrial automation, featuring a short-body stainless steel housing and a sensing range of 1.5 mm. With an IP67 rating for dust and water protection, this sensor is perfect for machine safety and control systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, stainless steel V2A (DIN 1.4305 / AISI 303)
- Diameter: 4 mm
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Installation type: Flush
- Switching frequency: 4,800 Hz
- Connection type: Cable with M8, 3-pin connector, 0.2 m length
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of Sr: ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable material: PUR, diameter 2.9 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25°C to +70°C
- Sensing face material: Plastic, LCP
- Housing length: 12 mm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 10.4 ms
- Process data length: 1 Byte
- Dimensions (H x L x W): 12mm x 12mm x 4mm
- Weight: 0.1 kg
Key Features
- Short-body housing with 4 mm diameter
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Flush installation type
- High switching frequency of 4,800 Hz
- PNP switching output with normally open function
- Cable with M8 3-pin connector, 0.2 m length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Supply voltage range from 10 V DC to 30 V DC
- Short-circuit and power-up pulse protection
- Shock and vibration resistant
- Stainless steel V2A housing with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Factory and process automation requiring precise sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- IO-Link interface enables smart communication reducing unnecessary replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IHM04-1B5PSVR8K sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise and reliable sensing.
