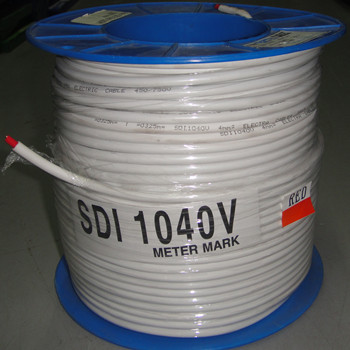

4mm SDI Red Cable | 100 Metres | Double Insulated | Copper Conductor | @M of 100 | by Electra Cables
The 4mm SDI Red Cable is perfect for general electrical wiring in residential, commercial, and industrial settings. With a double insulated design and a durable copper conductor, this cable ensures efficient current carrying and easy circuit identification. Supplied in a 100 metre roll, it's ideal for fixed wiring applications, switchboards, and power distribution circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4mm SDI Red Cable | 100 Metres | Double Insulated | Copper Conductor | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: SDI1040V-100RED
Alternatively Known As: 4mm SDI cable, 4mm single core cable, 4mm double insulated cable, SDI1040V-100RED, 4mm red electrical wire
Technical Specifications
- Conductor size: 4mm²
- Conductor material: Plain annealed copper
- Insulation: V-90 PVC, double insulated
- Colour: Red
- Voltage rating: 0.6/1kV
- Length: 100 metres
- Operating temperature: -15°C to +90°C
- Complies with AS/NZS 5000.1
- Dimensions (H x L x W): 8mm x 100000mm x 8mm
- Weight: 7.5 kg
Key Features
- Single core, double insulated (SDI) cable
- 4mm² copper conductor for efficient current carrying
- Red insulation for easy circuit identification
- Supplied in a 100 metre roll
- Suitable for fixed wiring applications
- High flexibility and durability
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- General electrical wiring in residential, commercial, and industrial installations
- Switchboards and control panels
- Power distribution circuits
- Suitable for use in conduit or trunking
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables for working voltages up to and including 0.6/1kV
Environmental Benefits
- Durable insulation reduces risk of electrical faults and waste
- Long lifespan minimizes replacement frequency
- Copper conductor is recyclable
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Electra 4mm SDI Red Cable 100m Roll is available for immediate purchase. Ideal for electrical wiring in residential, commercial, and industrial applications.
