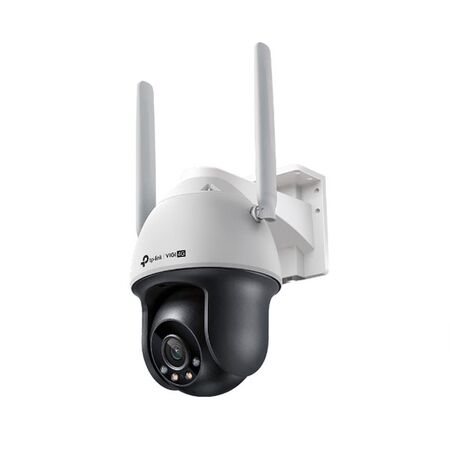

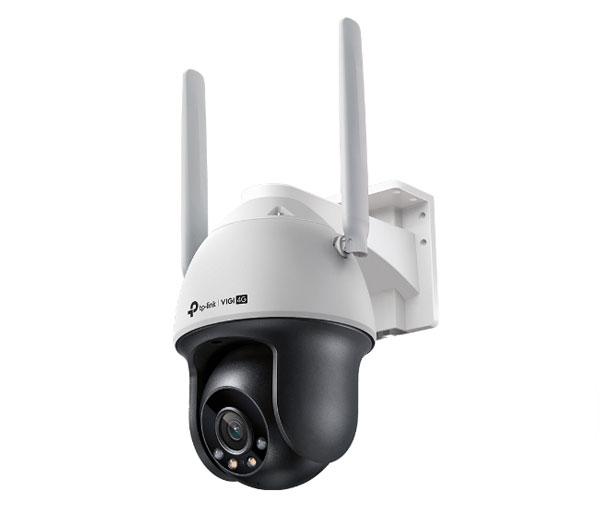

4MP 4G Pan and Tilt Camera 4mm VIGI Ness
Ness pan and tilt camera features 4MP resolution, 4G connectivity and a 4mm lens from the VIGI range. Ideal for remote CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TP-Link VIGI C540-4G, VIGI 4MP 4G PT Camera, 4G Outdoor Pan/Tilt Network Camera
Technical Specifications
- Model: VIGI C540-4G (4mm)
- Resolution: 4MP
- Image Sensor: 1/3.06-inch progressive scan CMOS
- Lens: Fixed 4mm focal length, F1.6 aperture
- Field of View: 80° horizontal, 43° vertical, 94° diagonal
- Pan Range: 0° to 348°
- Tilt Range: 0° to 120°
- Pan/Tilt Speed: Configurable 8° to 44° per second; 44° per second preset speed
- Connectivity: 4G mobile networking with Nano-SIM support
- Video Compression: H.265+, H.265 and H.264
- Minimum Illumination: 0.005 lux colour; 0 lux with IR or white light
- Storage: MicroSD card support up to 512GB
- Detection: Human and vehicle classification, intrusion, line-crossing and region detection
- Audio: Two-way audio with built-in microphone and speaker
- Night Vision: Full-colour monitoring with IR and supplemental white light
- Power Supply: 12V DC, 1A
- Ingress Protection: IP66
- Material: Plastic
- Certifications: CE, RCM, BSMI, RoHS and NCC
- Dimensions (H x L x W): 201mm x 120mm x 182mm
- Weight: 0.69 kg
Key Features
- 4MP high-definition full-colour video monitoring
- 4G connectivity for locations without wired network access
- Remote pan and tilt control with 360-degree monitoring capability
- Automatic tracking of people and vehicles
- Human and vehicle classification to reduce unwanted alerts
- Smart event detection including intrusion and line crossing
- Two-way audio and active deterrence with sound and light
- H.265+ compression to reduce bandwidth and storage requirements
- Local recording to microSD card up to 512GB
- IP66-rated enclosure for outdoor installations
Professional Installation Requirements
- Installation should be completed by a competent CCTV installer. Positioning, outdoor weather sealing, SIM activation and 12V DC power connection must follow the manufacturer's installation instructions. Any fixed mains wiring or electrical work must be completed by a licensed electrician.
Applications
- Remote CCTV installations without fixed broadband or network cabling
- Construction sites, farms and rural properties
- Temporary or semi-permanent site surveillance
- Commercial premises and outdoor perimeters
- Remote monitoring of access points, yards and storage areas
Standards & Compliance
- RCM certification is listed by the manufacturer for the Australian market
- AS/NZS 62368.1 is the applicable Australian/New Zealand safety standard family for audio, video, information and communications technology equipment; product-specific conformity documentation should be confirmed where required
Environmental Benefits
- 4G connectivity can reduce the need for additional data cabling and associated installation materials at remote sites
- H.265+ video compression can reduce network bandwidth and storage requirements
- MicroSD recording can reduce reliance on continuously transmitted or cloud-stored footage
- Durable IP66 outdoor construction may extend service life and reduce replacement waste
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase unless otherwise specified. Warranty claims are subject to Ness Corporation's published terms and conditions.
Available Now
Available through Ness Corporation and authorised Australian security and CCTV distributors.
