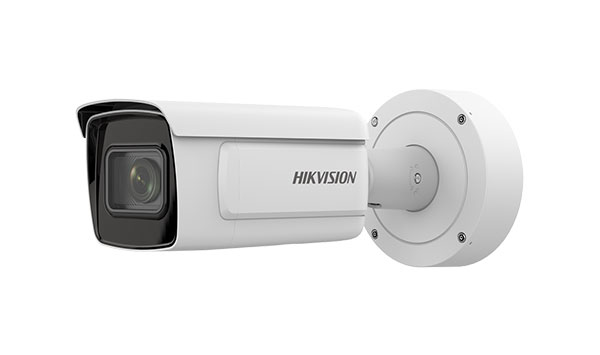

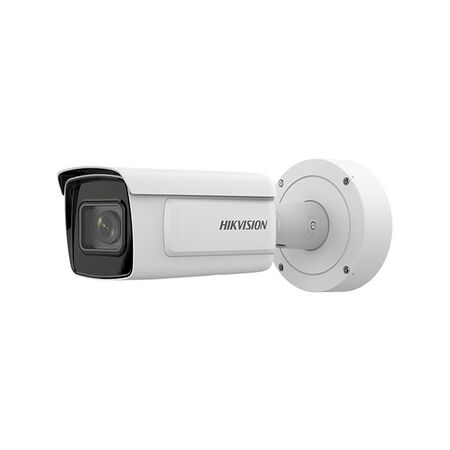

4MP Bullet Camera 2.8-12mm Hikvision
Hikvision bullet camera features 4MP resolution and a 2.8-12mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4MP Bullet CCTV Camera, 4MP Motorised Varifocal Bullet Camera, Hikvision DS-2CD1643G2-IZ/IZS
Technical Specifications
- Resolution: 4MP, up to 2560 × 1440
- Image Sensor: 1/3-inch progressive scan CMOS
- Lens: 2.8–12mm motorised varifocal lens
- Minimum Illumination: 0.005 lux colour; 0 lux with IR
- Infrared Range: Up to 50m
- Video Compression: H.265+, H.265, H.264+ and H.264
- Wide Dynamic Range: 120dB true WDR
- Storage: MicroSD card support up to 256GB
- Network: Ethernet with PoE support
- Ingress Protection: IP67
- Detection: Human and vehicle detection
- Power Consumption: Up to 12.9W
- Compliance Markings: RCM, CE and RoHS
- Dimensions (H x L x W): 105mm x 244.4mm x 105mm
- Weight: 0.745 kg
Key Features
- 4MP imaging for detailed CCTV surveillance
- Motorised 2.8–12mm varifocal lens for adjustable field of view
- EXIR infrared illumination with up to 50m night vision range
- 120dB WDR for challenging backlit scenes
- H.265+ compression reduces bandwidth and storage requirements
- Human and vehicle detection for improved event filtering
- IP67-rated housing for outdoor installation
- PoE support for combined network and power connection
- Built-in microSD storage support up to 256GB
Professional Installation Requirements
- Installation should be completed by a competent security or structured-cabling installer. Outdoor mounting, network termination and PoE equipment should be selected for the installation environment. Customer cabling should be installed in accordance with AS/CA S009:2020 where applicable.
Applications
- Residential CCTV surveillance
- Commercial and industrial security systems
- Building entrances and perimeters
- Car parks, driveways and loading areas
- Retail, warehouse and office monitoring
- Outdoor security installations requiring adjustable lens coverage
Standards & Compliance
- AS/NZS 62676.1.1:2020 – Video surveillance system general requirements
- AS/NZS 62676.5:2020 – Data specifications and image quality performance for camera devices
- AS/NZS CISPR 32:2015 – Electromagnetic compatibility for multimedia equipment, as referenced by the manufacturer’s RCM approval
- AS/CA S009:2020 – Customer cabling installation requirements where applicable
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements
- RoHS-related material restrictions help reduce the use of hazardous substances
- IP67 construction supports longer service life in suitable outdoor environments, reducing replacement waste
- Metal housing and electronic components may be recoverable through appropriate e-waste recycling channels
Warranty Information
Warranty is subject to Hikvision Australia’s RMA policy and the authorised distributor’s terms. Hikvision’s published five-year programme applies to listed premium project-oriented product series and should not be assumed for this Value-series camera.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
