Trade Discount 25%

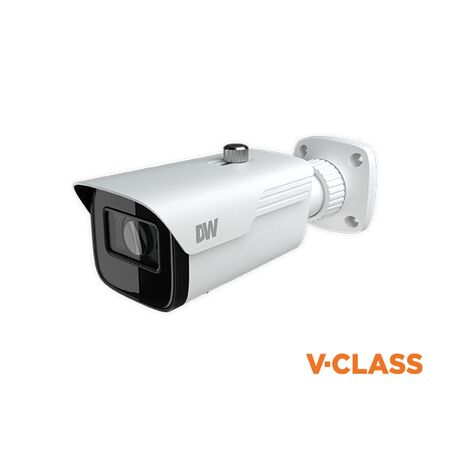

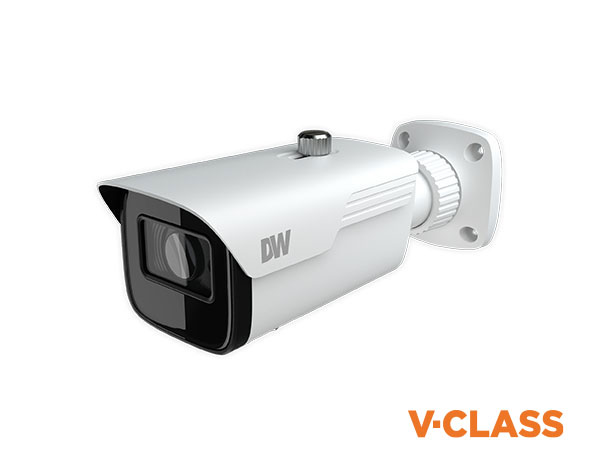

4MP Bullet Camera 2.8mm Lens True WDR Smart IR 164ft Ness
Ness 4MP bullet camera features a 2.8mm lens, True WDR and Smart IR 164ft. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DWC-VSBD04Bi, 123-041-2, 4MP CCTV Bullet Camera, MEGApix V-Class Bullet Camera
Technical Specifications
- Image Sensor: 4MP 1/3-inch CMOS
- Resolution: 2560 x 1440 pixels
- Lens: 2.8mm fixed lens, F1.6
- Horizontal Field of View: 94°
- Vertical Field of View: 50°
- Night Vision: 164ft / 50m Smart IR
- Wide Dynamic Range: True WDR, 120dB
- Video Compression: H.265, H.264 and MJPEG
- Frame Rate: Up to 30fps
- Storage: Micro SD, SDHC or SDXC up to 256GB
- Audio: Built-in microphone with audio input and output
- Network: 10/100 Ethernet and PoE IEEE 802.3af Class 3
- Power: 12V DC or PoE
- Power Consumption: Less than 8W
- Weather Protection: IP67-rated
- Impact Resistance: IK10-rated
- Operating Temperature: -30°C to 60°C
- Certifications: CE, FCC, RoHS, ONVIF and NDAA compliant
- Dimensions (H x L x W): 70.6mm x 220.8mm x 80.5mm
- Weight: 0.69 kg
Key Features
- 4MP video capture at up to 30fps
- 2.8mm fixed lens for a wide 94° horizontal viewing angle
- True WDR for improved image detail in high-contrast lighting
- 164ft / 50m Smart IR for night-time surveillance
- Line-crossing, perimeter-intrusion and video-tampering analytics
- Built-in microphone and two-way audio support
- Local recording via Micro SD, SDHC or SDXC card up to 256GB
- PoE or 12V DC power options
- IP67 weather-resistant metal bullet housing
- IK10 impact-resistant construction
- ONVIF Profile S compatibility for integration with compatible VMS and NVR systems
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical technician. PoE or 12V DC connections, network configuration and outdoor cable entry should be completed in accordance with manufacturer instructions and applicable Australian wiring requirements.
Applications
- Residential security surveillance
- Commercial and retail premises
- Industrial and warehouse monitoring
- Perimeter and entry-point surveillance
- Outdoor CCTV systems requiring weather and impact resistance
Standards & Compliance
- AS/NZS 62676.1.1:2020 - applicable video surveillance system requirements for CCTV installations; product-specific certification to this standard was not stated
Environmental Benefits
- RoHS compliance supports restriction of specified hazardous substances
- PoE power delivery and less-than-8W consumption can reduce installation cabling and operating energy use
- IP67 and IK10 construction can extend service life and reduce replacement waste
- Local SD recording can reduce reliance on continuous network bandwidth and central storage
Warranty Information
Ness Corporation warranty: 3 years from date of purchase for Ness manufactured or supplied products. The manufacturer datasheet also lists a 5-year warranty for the equivalent Digital Watchdog camera; confirm the applicable warranty term with the Australian seller before purchase. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))
Available Now
Available through Ness and authorised Australian security, electrical and CCTV distributors.
