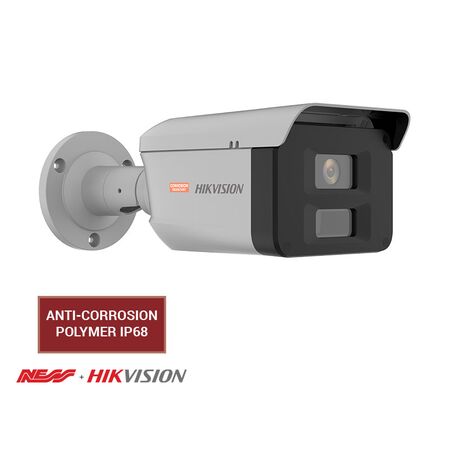

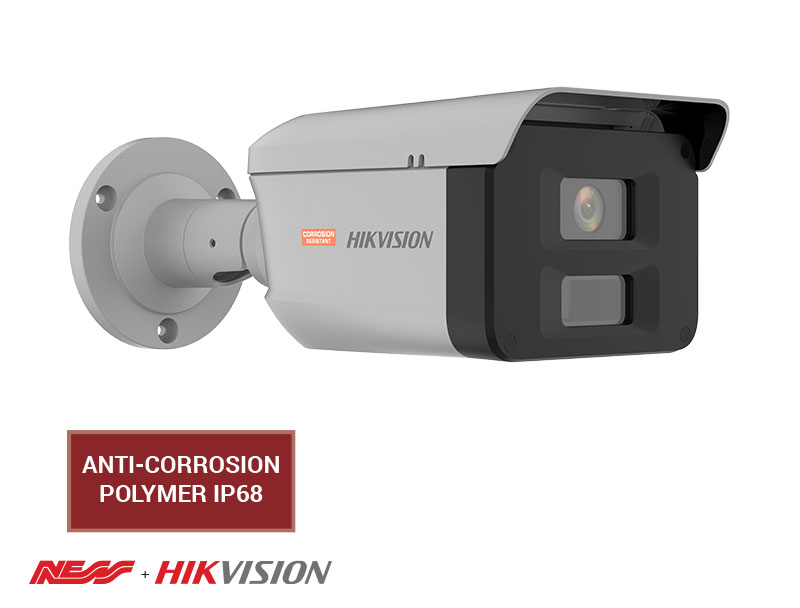

4MP ColorVu Polymer Bullet Camera 2.8mm Hikvision
Hikvision polymer bullet camera features 4MP resolution, ColorVu imaging and a 2.8mm lens. Ideal for CCTV surveillance installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4MP ColorVu Polymer Bullet Camera, Hikvision Anti-Corrosion CCTV Bullet Camera, DS-2XC3T46G0H-LISU(PA)(2.8mm)
Technical Specifications
- Model: DS-2XC3T46G0H-LISU(PA)(2.8mm)
- Resolution: 2688 × 1520 pixels, 4MP
- Image Sensor: 1/2.7-inch progressive scan CMOS
- Lens: Fixed 2.8mm focal length
- Aperture: F1.0
- Field of View: Horizontal 100.2°, vertical 54.7°, diagonal 119.7°
- Low-Light Performance: 0.001 Lux colour at F1.2; 0 Lux with supplemental light
- Illumination: Smart hybrid IR and white light, up to 50m
- Wide Dynamic Range: 130dB WDR
- Video Compression: H.265, H.264, H.264+ and H.265+
- Frame Rate: Up to 25fps at 50Hz or 30fps at 60Hz
- Network Interface: 10/100M RJ45 Ethernet
- Storage: MicroSD, microSDHC or microSDXC up to 1TB
- Power Supply: 12VDC ±25% or IEEE 802.3af PoE, Class 3
- Maximum Power Consumption: 10W
- Material: SMC with 30% glass fibre body; PA66 with 15% glass fibre bracket
- Ingress Protection: IP68
- Impact Protection: IK10
- Anti-Corrosion Protection: NEMA 4X and C5
- Operating Temperature: -30°C to 60°C
- Audio: Built-in microphone on -U variant
- Connectivity: ONVIF Profile S, Profile G and Profile T; ISAPI and ISUP
- Dimensions (H x L x W): 120.8mm x 294.27mm x 121.36mm
- Weight: 1.48 kg
Key Features
- 24/7 colour imaging using Hikvision ColorVu technology
- Polymer enclosure designed for corrosive environments
- Smart hybrid illumination with selectable IR and white light
- 130dB WDR for high-contrast scenes
- IP68 water and dust resistance
- IK10 vandal resistance
- Human and vehicle target classification
- Line crossing, intrusion, region entrance and region exiting detection
- MicroSD recording support up to 1TB
- PoE support for single-cable network installation
- Suitable for coastal, dockside and chemical plant environments
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or low-voltage security technician. Configure the network, PoE or 12VDC supply, recording system and camera positioning in accordance with the manufacturer's instructions and applicable Australian requirements.
Applications
- Outdoor CCTV surveillance
- Coastal and marine environments
- Docks, ports and waterfront facilities
- Chemical plants and industrial sites
- Areas exposed to salt spray or acid rain
- Commercial and infrastructure security installations
- Perimeter monitoring and vehicle access points
Standards & Compliance
- AS/NZS CISPR 32:2015 - manufacturer-stated RCM EMC compliance
- AS/NZS 62676.1.1:2020 - applicable Australian and New Zealand CCTV/video surveillance system requirements; system-level standard rather than a standalone product certification
Environmental Benefits
- Durable polymer construction and IP68 protection can extend service life in corrosive environments, reducing replacement waste
- Anti-corrosion design supports longer operation in coastal and industrial conditions
- RoHS, WEEE and REACH environmental compliance are stated by the manufacturer
- PoE operation can simplify cabling and reduce the need for separate camera power infrastructure
Warranty Information
Hikvision warranty coverage varies by product series and authorised distribution channel. Australian network cameras are commonly supplied with a 3-year back-to-base manufacturer warranty; confirm the applicable warranty with the authorised Australian distributor before purchase.
Available Now
Available through Hikvision and authorised Australian security and electrical distributors, subject to regional model and stock availability.
