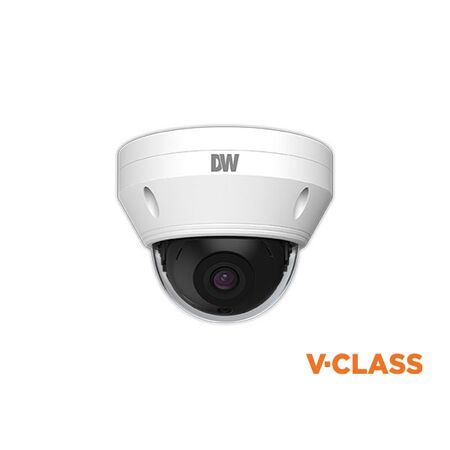

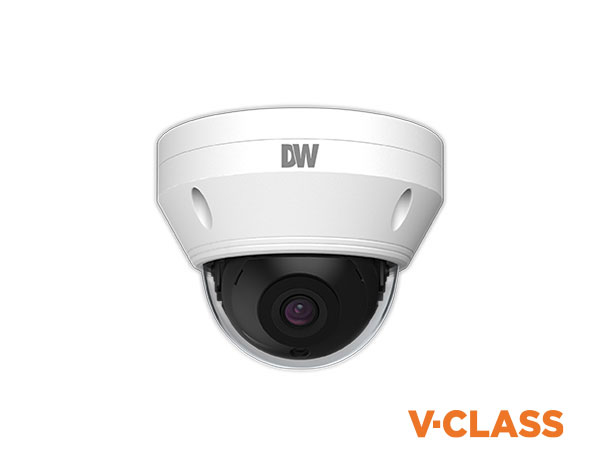

4MP Dome Camera 2.8mm 30m Smart IR True WDR MEGApix V-Class Ness
Ness 4MP dome camera features a 2.8mm lens, 30m Smart IR and True WDR. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness 4MP IP Dome Camera, Digital Watchdog DWC-VSDG04Bi, MEGApix V-Class 4MP Dome, 4MP CCTV Vandal Dome Camera
Technical Specifications
- Image Sensor: 4MP 1/3-inch CMOS
- Resolution: 2560 × 1440 pixels
- Lens: 2.8mm fixed lens, F1.6
- Field of View: 94° horizontal
- Night Vision: Smart IR up to 30m
- Minimum Illumination: 0.005 lux colour; 0 lux black and white
- Wide Dynamic Range: True WDR, up to 120dB
- Video Compression: H.265, H.264 and MJPEG
- Frame Rate: Up to 30fps at all resolutions
- Streaming: Simultaneous dual-streaming
- Audio: Built-in microphone and audio input
- Storage: MicroSD, SDHC and SDXC support up to 256GB
- Network: 10/100 Ethernet, ONVIF conformant
- Power: DC 12V or PoE IEEE 802.3af
- Power Consumption: Less than 4.5W
- Operating Temperature: -30°C to 60°C
- Ingress Protection: IP67-rated
- Impact Protection: IK10-rated
- Housing: Metal vandal-resistant housing with polycarbonate dome
- Certifications: CE, FCC, RoHS, ONVIF and NDAA compliant
- Dimensions (H x L x W): 90mm x 116.6mm x 116.6mm
- Weight: 0.65 kg
Key Features
- 4MP real-time video capture at up to 30fps
- 2.8mm fixed lens with wide 94° horizontal viewing angle
- 30m Smart IR illumination for night-time monitoring
- True WDR for improved image detail in high-contrast lighting
- IP67 weather-resistant construction for outdoor installations
- IK10 impact-resistant vandal dome housing
- H.265 compression for reduced storage and bandwidth requirements
- Built-in microphone and microSD card support
- PoE or 12V DC power options
- Basic licence-free video analytics including line crossing, perimeter intrusion, scene change, video blur and abnormal colour detection
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or data-cabling technician. Configure the camera using PoE or a regulated 12V DC supply, provide suitable network infrastructure and weatherproof all external connections. Install and commission the CCTV system in accordance with applicable Australian requirements and AS/NZS 62676 guidance.
Applications
- Residential security monitoring
- Commercial premises and small businesses
- Retail shops and offices
- Warehouses and industrial facilities
- Outdoor entrances, driveways and perimeter areas
- New CCTV installations or upgrades to compatible ONVIF systems
Standards & Compliance
- Applicable CCTV systems standard: AS/NZS 62676.1.1:2020, Video surveillance systems for use in security applications — system requirements — general
- Applicable video transmission standard: AS/NZS 62676.1.2:2020, Video surveillance systems for use in security applications — performance requirements for video transmission
- Product-specific Australian certification should be confirmed from the installation documentation or supplier before project sign-off
Environmental Benefits
- Low operating consumption of less than 4.5W helps reduce energy use during continuous surveillance
- H.265 compression can reduce network bandwidth and storage requirements compared with less efficient codecs
- IP67 and IK10 construction can extend service life and reduce replacement-related waste
- RoHS compliance restricts the use of specified hazardous substances in the product
Warranty Information
Ness warranty: 3 years from date of purchase for Ness manufactured or supplied products, subject to Ness warranty terms. The Ness V-Class brochure also states that DW cameras supplied by Ness carry a 3-year Ness warranty. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))
Available Now
Available through Ness and authorised Australian security-equipment distributors.
