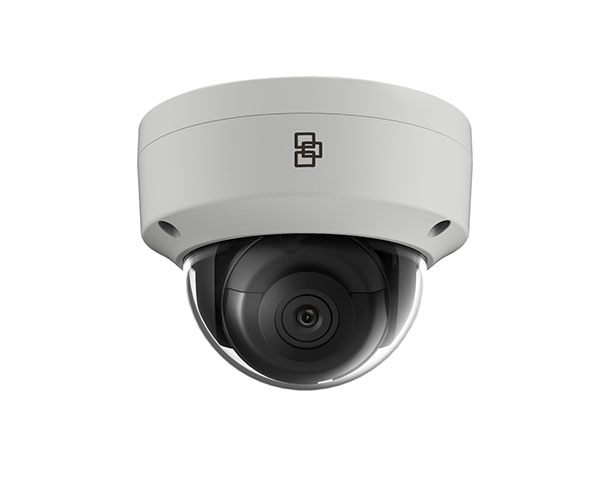

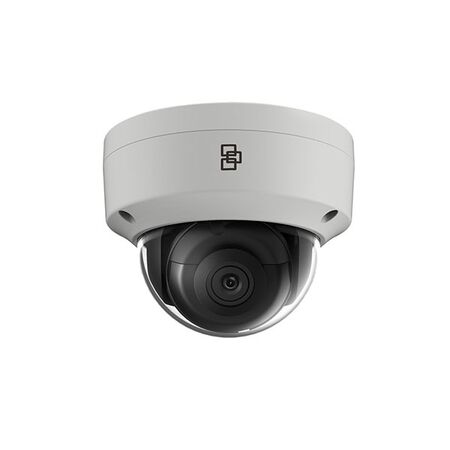

4MP Dome Camera 2.8mm Lens IR 30m H.265+ Grey TruVision
TruVision 4MP dome camera features a 2.8mm lens, IR up to 30m and H.265+ compression in grey. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TruVision 4MP H.265+ Dome Camera, TruVision 4MP Fixed-Lens IP Dome, TVGP-M01-0401-DOM-G
Technical Specifications
- Model: TVGP-M01-0401-DOM-G
- Maximum Resolution: 2688 x 1520 at up to 25/30 fps
- Image Sensor: Progressive-scan CMOS
- Lens: Fixed 2.8mm, f/1.6
- Horizontal Field of View: Approximately 98°
- Infrared Range: Up to 30m
- Video Compression: H.264, H.265 and H.265+; MJPEG sub-stream
- Video Streams: Triple stream
- Wide Dynamic Range: True WDR, 120dB
- Low-Light Performance: 0.005 lux colour; 0 lux with IR
- Network Interface: 10/100 Mbps RJ-45 Ethernet
- Power: 12VDC or PoE 802.3af
- Maximum Power Consumption: 6.5W
- Storage: MicroSD/SDHC card support up to 256GB
- Integration: ONVIF Profiles G, S and T
- Protection Rating: IP67
- Impact Rating: IK10
- Operating Temperature: -30°C to +60°C
- Compliance Markings: RCM, CE, FCC, REACH, RoHS, UL and WEEE
- Dimensions (H x L x W): 84.7mm x 110.8mm x 110.8mm
- Weight: 0.53 kg
Key Features
- 4MP image resolution for detailed surveillance footage
- Fixed 2.8mm lens suited to wide-area viewing
- Up to 30m infrared illumination for night-time monitoring
- H.265+ compression helps reduce bandwidth and storage requirements
- True WDR rated at 120dB for high-contrast scenes
- Person and vehicle classification
- Intrusion, line-crossing and face-detection analytics
- Triple-stream video transmission
- Local edge recording via MicroSD card
- PoE or 12VDC power options
- IP67 weather protection and IK10 vandal resistance
- ONVIF interoperability for compatible video management systems
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical installer. Mounting, PoE networking and any 12VDC wiring should follow the manufacturer's instructions and applicable Australian electrical and communications requirements.
Applications
- Indoor and outdoor CCTV surveillance
- Commercial and industrial security systems
- Retail, warehouse and office monitoring
- Entry, perimeter and car park surveillance
- IP video systems using PoE network infrastructure
- Security installations requiring person and vehicle classification
Standards & Compliance
- AS/NZS 62368.1:2026 – applicable audio, video and information and communications technology equipment safety standard; verify the product-specific declaration of conformity before installation
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
- RoHS-listed compliance supports restriction of specified hazardous substances in electrical and electronic equipment
- MicroSD edge recording and PoE operation can reduce the need for additional cabling and recording hardware
- Durable IP67 and IK10 protection can extend service life and reduce replacement waste
Warranty Information
TruVision cameras are covered by a 3-year warranty from the date of manufacture under the referenced Australian distributor warranty policy; confirm terms with the supplying distributor.
Available Now
Available through TruVision and authorised Australian security-equipment distributors, subject to current distributor stock.
