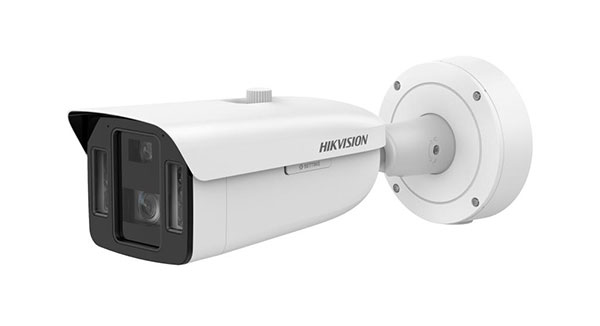

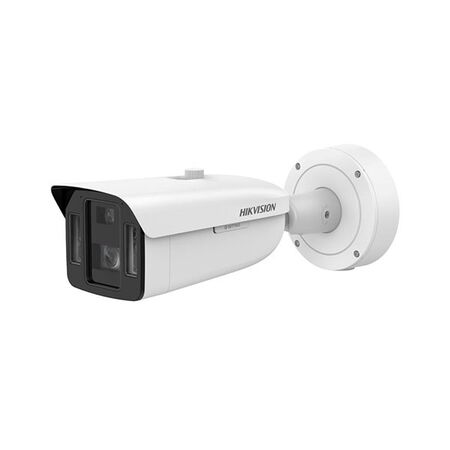

4MP Dual Sensor ColorVu Bullet Camera Hikvision
Hikvision dual sensor ColorVu bullet camera features 4MP resolution and dual-sensor imaging. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision iDS-2CD8A46G0-XZHSY, 4MP Multi-Sensor Bullet Camera, Dual-Channel ColorVu Bullet Camera
Technical Specifications
- Model: iDS-2CD8A46G0-XZHSY
- Image Sensors: 2 x 1/1.8-inch progressive scan CMOS
- Resolution: Channel 1 2688 x 1520; Channel 2 2560 x 1440
- Lens: Channel 1 motorised 8–32 mm; Channel 2 fixed 4 mm
- Low-Light Performance: ColorVu and DarkFighter technology
- Supplementary Lighting: Hybrid IR and white light
- Supplement Light Range: Up to 100 m on channel 1; up to 30 m on channel 2
- Video Frame Rate: Up to 50 fps on channel 1; up to 25 fps on channel 2 at 50 Hz
- Dynamic Range: 140 dB WDR
- Compression: H.265+, H.265, H.264+ and H.264
- Analytics: Human and vehicle classification, intrusion and line-crossing detection, face capture and vehicle detection
- Network Interface: 10/100/1000 Mbps self-adaptive Ethernet
- Power: 12 VDC, 24 VAC or PoE IEEE 802.3at Type 2 Class 4
- Ingress Protection: IP67
- Impact Protection: IK10
- Material: Aluminium alloy body
- Dimensions (H x L x W): 140mm x 410.1mm x 140mm
- Weight: 2.2 kg
Key Features
- Two 4MP imaging channels in one bullet camera housing
- Combines long-range motorised zoom with a wide panoramic view
- 24/7 colour imaging using ColorVu and low-light DarkFighter technology
- Human and vehicle classification for perimeter-security applications
- 140 dB WDR for scenes with strong backlighting
- Hybrid IR and white-light illumination with smart supplementary lighting
- Supports H.265+ compression to reduce bandwidth and storage requirements
- IP67 weather resistance and IK10 vandal resistance
- Suitable for outdoor commercial, industrial and perimeter-security installations
Professional Installation Requirements
- Installation should be carried out by a suitably qualified CCTV/security installer. Configure and commission the camera as part of a video surveillance system in accordance with AS/NZS 62676. Where fixed mains electrical work is required, it must be completed in accordance with applicable electrical regulations and AS/NZS 3000.
Applications
- Commercial and industrial perimeter surveillance
- Building entrances, car parks and loading areas
- Wide-area monitoring requiring both panoramic context and detailed zoom
- Transport, infrastructure and facility security
- Outdoor CCTV systems requiring low-light colour imaging
- Vehicle and pedestrian monitoring
Standards & Compliance
- AS/NZS CISPR 32:2015 electromagnetic compatibility approval stated by the manufacturer
- AS/NZS 62676.1.1:2020 applicable to CCTV/video surveillance systems for security applications
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
- Aluminium alloy construction is durable and recyclable at end of service life
- IP67 and IK10 protection can extend service life in demanding outdoor environments, reducing replacement waste
- PoE operation can simplify system wiring and reduce the need for separate camera power infrastructure
Warranty Information
Hikvision Oceania lists a five-year manufacturer warranty for qualifying premium project-oriented network-camera series, including the DeepinView series, for products manufactured after 1 March 2022. Confirm eligibility and applicable terms with the authorised Australian distributor.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to regional model and stock availability.
