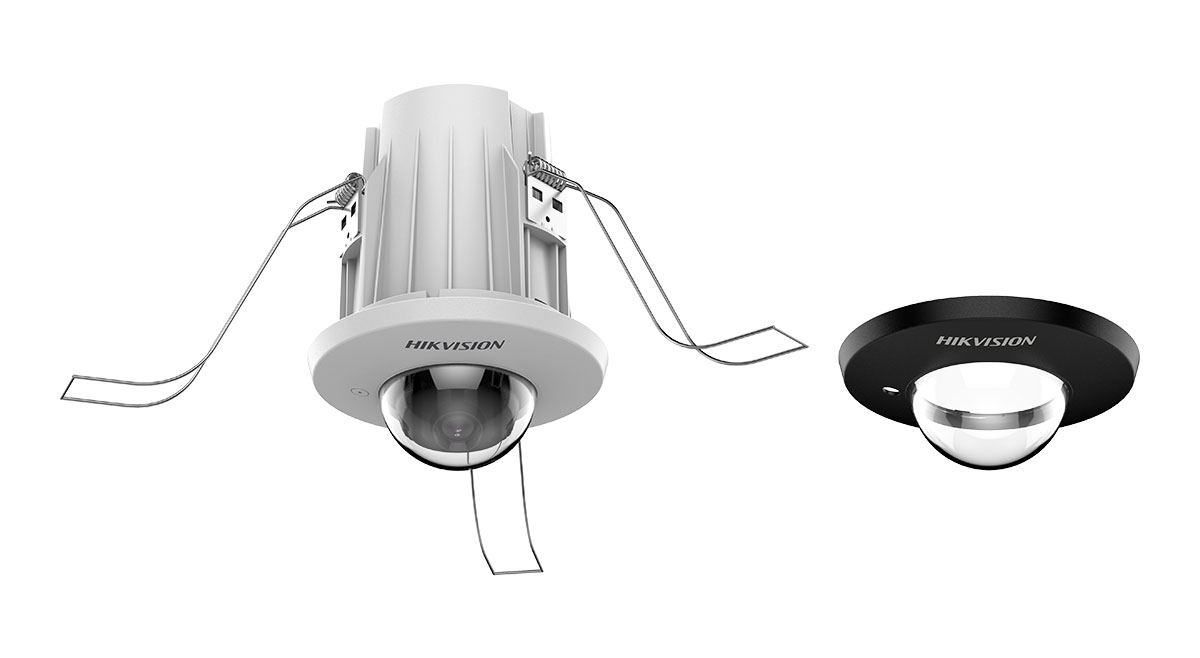

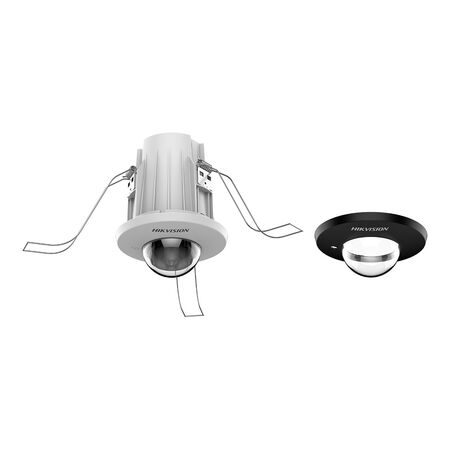

4MP In-Ceiling Mini Dome Camera 2.8mm Hikvision
Hikvision in-ceiling mini dome camera features 4MP resolution and a 2.8mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 4MP Recessed Ceiling IP Camera, AcuSense Mini Dome Network Camera, Hikvision In-Ceiling CCTV Camera
Technical Specifications
- Model: DS-2CD2E43G2-U
- Image Sensor: 1/3 inch progressive scan CMOS
- Resolution: 4MP, up to 2688 x 1520
- Lens: 2.8mm fixed lens
- Horizontal Field of View: 103 degrees
- Minimum Illumination: 0.005 Lux at F1.6, AGC on
- Wide Dynamic Range: 120dB WDR
- Video Compression: H.265+, H.265, H.264+ and H.264
- Audio: Built-in microphone
- Storage: MicroSD card support up to 256GB
- Power Supply: 12V DC or PoE IEEE 802.3af
- Maximum Power Consumption: 3.2W via DC or 4.2W via PoE
- Network Interface: 10/100 Base-T Ethernet
- Operating Temperature: -10°C to +50°C
- Body Material: Plastic
- Installation Type: Recessed in-ceiling mount
- Environmental Rating: Indoor use; no IP or IK rating specified
- Approvals: RCM, CE-EMC, UL 62368-1 and CE-LVD
- Environmental Compliance: CE-RoHS, WEEE and REACH
- Dimensions (H x L x W): 117.5mm x 93.9mm x 93.9mm
- Weight: 0.155 kg
Key Features
- 4MP imaging for detailed indoor surveillance
- Discreet recessed in-ceiling mini dome design
- 2.8mm fixed lens providing a wide viewing angle
- AcuSense human and vehicle target classification
- 120dB WDR for improved images in high-contrast lighting
- H.265+ compression to reduce storage and bandwidth requirements
- Built-in microphone for audio capture
- Supports 12V DC and PoE installation
- Face detection, line crossing and area intrusion analytics
- Compatible with Hikvision and ONVIF network video systems
Professional Installation Requirements
- Installation should be completed by a suitably qualified CCTV installer. The camera requires a recessed ceiling cut-out and network cabling; any mains-powered PoE equipment or 12V power supply must be connected in accordance with AS/NZS 3000 by a licensed electrical contractor where applicable.
Applications
- Indoor commercial CCTV systems
- Retail shops and shopping centres
- Office buildings and reception areas
- Hotels and hospitality venues
- Corridors, foyers and common areas
- Discreet surveillance installations requiring a flush ceiling finish
Standards & Compliance
- AS/NZS CISPR 32:2015, listed for RCM electromagnetic compatibility approval
- AS/NZS 62676.1.1:2020, applicable to video surveillance systems installed for security applications
- AS/NZS 3000:2018, applicable to associated electrical installation work
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage requirements
- CE-RoHS compliance supports restriction of hazardous substances in the product
- WEEE compliance supports responsible end-of-life electrical and electronic equipment management
- Low maximum power consumption of approximately 4.2W via PoE
- Long-service network design can reduce replacement frequency and electronic waste
Warranty Information
Hikvision network cameras supplied through authorised Australian distribution channels are generally covered by a 3-year manufacturer warranty, subject to the applicable purchase terms, serial number and proof of purchase.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors; confirm current stock and Australian-region compatibility before ordering.
