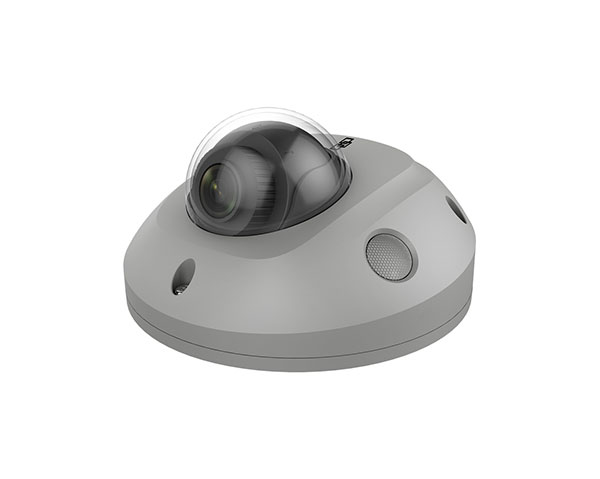

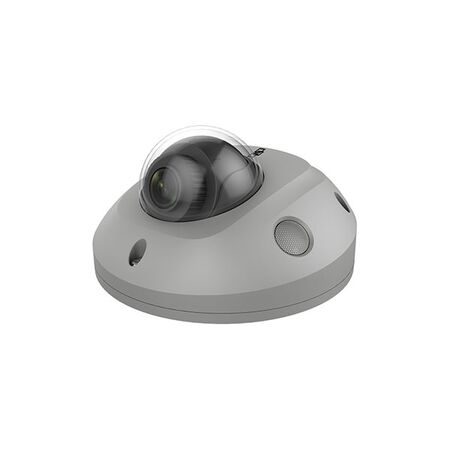

4MP Mini Dome Camera 2.8mm Lens IR 30m Grey TruVision
TruVision 4MP mini dome camera features a 2.8mm lens and IR up to 30m in grey. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TruVision 4MP Fixed Lens Dome Camera, TruVision Smart IP Dome Camera, TVGP-M01-0401-DOM-G
Technical Specifications
- Model: TVGP-M01-0401-DOM-G
- Camera Type: Smart IP dome camera
- Maximum Resolution: 4MP, 2688 x 1520 at 25/30fps
- Image Sensor: 1/3-inch progressive-scan CMOS
- Lens: Fixed 2.8mm, f/1.6
- Field of View: 103° horizontal, 55° vertical, 122° diagonal
- Video Compression: H.264, H.265 and H.265+
- Video Streams: Triple streaming
- Infrared Illumination: Up to 30m, 850nm
- Wide Dynamic Range: True WDR, 120dB
- Day/Night: True Day/Night with motorised IR cut filter
- Network Interface: RJ-45 10/100Mbps Ethernet
- Power Supply: 12VDC or PoE IEEE 802.3af
- Maximum Power Consumption: 6.5W
- Local Storage: Micro SD/SDHC/SDXC slot, up to 256GB
- Audio: One line-level audio input and one line-level audio output
- Alarm I/O: One alarm input and one alarm output
- Integration: ONVIF Profiles G, S and T
- Environmental Rating: IP67
- Impact Rating: IK10
- Operating Temperature: -30°C to +60°C
- Housing Material: Aluminium
- Colour: Grey
- Regulatory Markings: RCM, CE, FCC, REACH, RoHS, UL and WEEE
- Dimensions (H x L x W): 84.7mm x 110.8mm x 110.8mm
- Weight: 0.53 kg
Key Features
- 4MP image resolution for detailed CCTV monitoring
- 2.8mm fixed lens with wide-angle 103° horizontal field of view
- Infrared night vision to 30m
- H.265+ compression helps reduce bandwidth and storage requirements
- Person and vehicle classification for motion, line-crossing and intrusion events
- Face, intrusion, line-crossing and advanced motion detection
- True WDR and 3D digital noise reduction for challenging lighting conditions
- Integrated Micro SD card recording up to 256GB
- PoE or 12VDC power options
- IP67 weather protection and IK10 vandal resistance
- ONVIF Profile G, S and T interoperability
Professional Installation Requirements
- Installation should be completed by a suitably qualified security and structured-cabling technician. External mounting, network cabling, PoE equipment and any mains-powered power supply must be installed in accordance with applicable Australian requirements and manufacturer instructions.
Applications
- Indoor and outdoor CCTV security installations
- Commercial premises and retail surveillance
- Warehouses, workshops and industrial sites
- Entry points, corridors and perimeter monitoring
- IP video surveillance systems requiring ONVIF interoperability
Standards & Compliance
- AS/NZS 62676.1.1:2020 - applicable video surveillance system requirements for CCTV security applications
- AS/NZS 62676.4:2020 - applicable video surveillance system selection, planning, installation and commissioning guidelines
- RCM marking is listed for the product; verify the complete installation and responsible-supplier registration where required
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
- PoE operation can simplify cabling and reduce the need for separate camera power infrastructure
- RoHS and REACH declarations support restrictions on specified hazardous substances
- IP67 and IK10 protection can extend service life and reduce replacement waste in demanding installations
Warranty Information
TruVision cameras supplied in Australia are covered by a 3-year warranty from the date of manufacture, subject to the applicable supplier warranty terms.
Available Now
Available through TruVision and authorised Australian security-equipment distributors, subject to current distributor stock.
