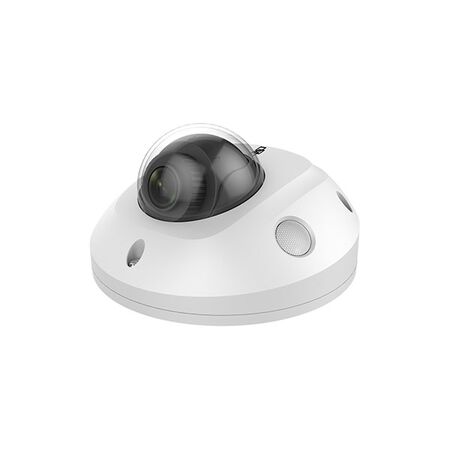

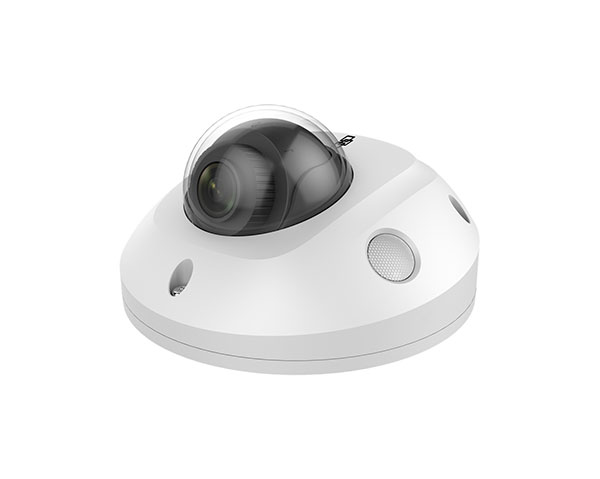

4MP Mini Dome Camera 2.8mm Lens IR 30m H.265+ TruVision
TruVision 4MP mini dome camera features a 2.8mm lens, IR up to 30m and H.265+ compression. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TruVision TVGP-M0401-WED-W, 4MP Mini Dome Camera, 4MP Wedge Camera, IP CCTV Dome Camera
Technical Specifications
- Resolution: 4MP, 2688 x 1520 pixels
- Lens: Fixed 2.8mm lens
- Video Compression: H.265+, H.265 and H.264
- Infrared Illumination: Up to 30m
- Dynamic Range: True WDR, 120dB
- Protection Rating: IP67 dust and water resistance
- Impact Rating: IK08
- Power: IEEE 802.3af PoE or 12V DC
- Connectivity: ONVIF Profiles G, S and T
- Storage: Micro SD/SDHC card support up to 256GB
- Audio: Audio input and output with 3.5mm connection
- Alarm: Alarm input and output
- Analytics: Person and vehicle classification, intrusion detection, cross-line detection and face detection
- Housing Colour: White
- Dimensions (H x L x W): 100mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- 4MP high-definition video capture
- Wide-angle 2.8mm fixed lens
- Up to 30m infrared night illumination
- H.265+ compression to reduce bandwidth and storage requirements
- True WDR for challenging lighting conditions
- IP67-rated housing for indoor and outdoor installations
- IK08 impact-resistant construction
- PoE or 12V DC power options
- Edge recording to a micro SD card up to 256GB
- ONVIF interoperability for compatible video management systems
- Person and vehicle classification analytics
Professional Installation Requirements
- Installation should be performed by a qualified CCTV or security technician. PoE, network configuration, recording setup and any alarm or audio connections should be completed in accordance with applicable electrical, communications and video surveillance requirements.
Applications
- Residential CCTV surveillance
- Commercial and retail security
- Office and workplace monitoring
- Entryways, corridors and building perimeters
- Small business and light industrial security installations
Standards & Compliance
- Applicable to video surveillance system installations covered by AS/NZS 62676.1.1:2020
- Applicable to video transmission requirements under AS/NZS 62676.1.2:2020
- Applicable to camera image quality and data specifications under AS/NZS 62676.5:2020
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording storage requirements compared with less efficient codecs
- PoE connectivity can reduce cabling requirements by combining power and data over Ethernet
- IP67 and IK08 protection support extended service life and reduce replacement waste
- Micro SD edge recording can reduce reliance on additional recording hardware for suitable installations
Warranty Information
TruVision cameras supplied through Ness Corporation are covered by a 3-year warranty from the date of manufacture, subject to the supplier's warranty terms.
Available Now
Available through TruVision, Ness Corporation and authorised Australian security and CCTV distributors.
