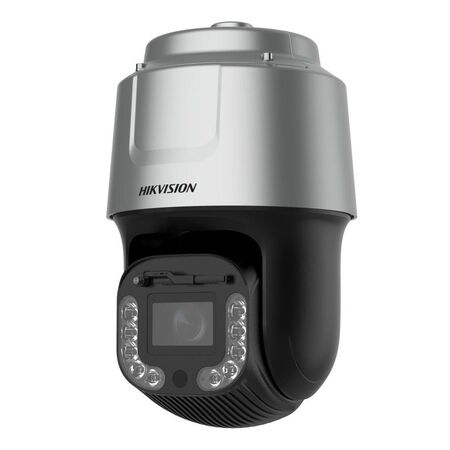

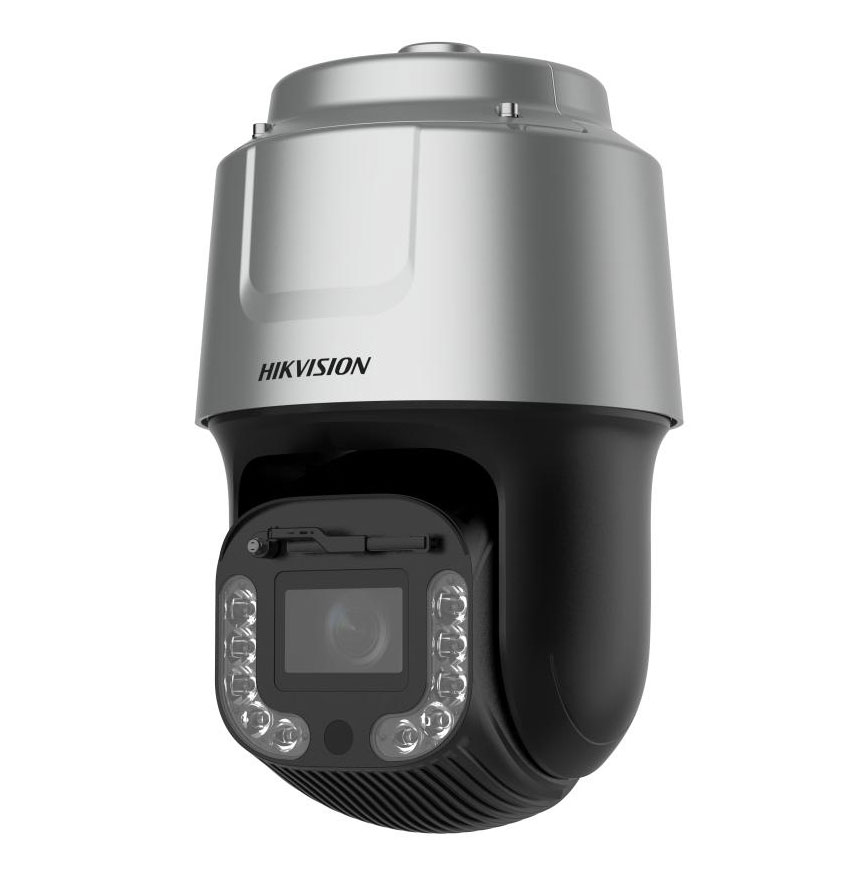

4MP PTZ Camera 42X 400m IR Hikvision
Hikvision PTZ camera features 4MP resolution, 42X zoom and 400m IR range. Ideal for wide area CCTV surveillance installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4MP 42x PTZ Camera, Hikvision Network Speed Dome, DarkFighter IR PTZ Camera
Technical Specifications
- Resolution: 4 MP, up to 2688 x 1520
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Optical Zoom: 42x
- Digital Zoom: 16x
- Focal Length: 6.0–252 mm
- IR Distance: Up to 400 m
- Pan Range: 360° endless
- Tilt Range: -20° to 90° with auto-flip
- Pan Speed: Up to 210°/s configurable; 280°/s preset speed
- Tilt Speed: Up to 150°/s configurable; 250°/s preset speed
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Storage: Built-in microSD/microSDHC/microSDXC slot, up to 1 TB
- Network Interface: 1 x RJ45 10/100 Mbps Ethernet
- Power Supply: 36 VDC or IEEE 802.3bt PoE
- Maximum Power Consumption: Up to 62 W
- Operating Temperature: -40°C to 70°C
- Ingress and Impact Protection: IP67 and IK10
- Environmental Protection: NEMA 4X
- RCM Reference: AS/NZS CISPR 32:2015
- Confirmed model family: DS-2DF8C442IXG1-ELWY series
- Dimensions (H x L x W): 430mm x 267mm x 267mm
- Weight: 9.6 kg
Key Features
- 4MP imaging for wide-area surveillance
- 42x optical zoom for long-distance identification
- Up to 400m intelligent IR illumination
- DarkFighter 2.0 low-light performance
- 150dB wide dynamic range for high-contrast scenes
- Face capture, vehicle detection and perimeter protection analytics
- Intelligent auto-tracking and smart pan-tilt correction
- 360° endless pan and -20° to 90° tilt movement
- IP67 weather protection and IK10 vandal resistance
- Supports Hi-PoE and 36VDC power input
- Built-in rain-sensing wiper and heater
- Suitable for large sites including roads, airports, ports, railways, industrial facilities and public venues
Professional Installation Requirements
- Installation should be completed by a suitably qualified CCTV/security installer. Mounting, network configuration, PoE or 36VDC power connection, surge protection, earthing and commissioning should follow the manufacturer's instructions and applicable local electrical and security-industry requirements.
Applications
- Large-area CCTV surveillance
- Perimeter and critical-infrastructure security
- Road, rail and traffic monitoring
- Airport, port and logistics facility surveillance
- Mining, industrial and commercial site security
- Parks, public spaces, stadiums and large venues
- Coastal and exposed outdoor installations
Standards & Compliance
- RCM compliance reference: AS/NZS CISPR 32:2015 for electromagnetic compatibility
- Applicable CCTV system standard: AS/NZS 62676.1.1:2020 for video surveillance systems used in security applications
- Installation planning and application guidance should also consider the AS/NZS 62676 series
Environmental Benefits
- H.265/H.265+ compression can reduce network bandwidth and storage requirements compared with older video codecs
- IP67 and IK10 protection supports longer service life in exposed installations, reducing replacement waste
- DarkFighter low-light performance and intelligent IR support effective surveillance with reduced reliance on additional lighting
- RoHS and REACH environmental material compliance are listed by the manufacturer
Warranty Information
Hikvision Oceania lists Ultra Series PTZ cameras among products eligible for a five-year manufacturer warranty when manufactured after 1 March 2022, subject to the applicable warranty terms. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/banner-/project-oriented-products/5-year-Warranty.pdf?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security, CCTV and electronic-security distributors.
