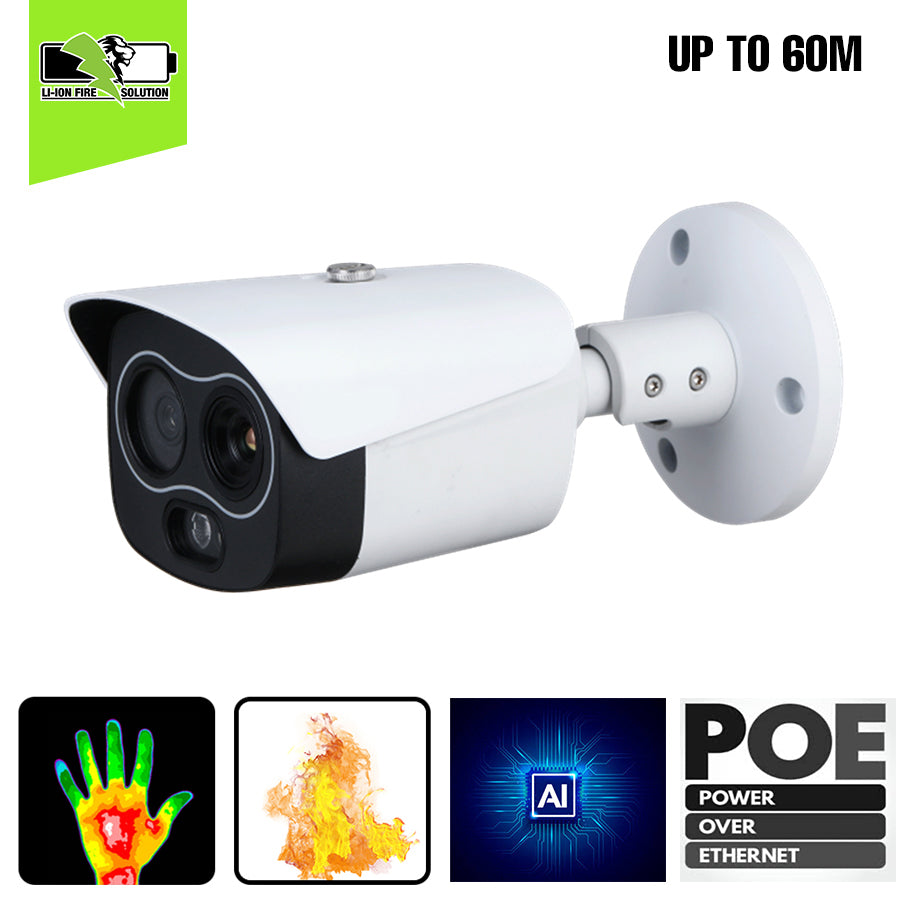

4MP Thermal Network Hybrid Bullet AI Camera | IP67 Rated | Heat Detection & Dual Image Fusion | -20°C to +550°C by Firebox
Enhance security with the 4MP Thermal Network Hybrid Bullet AI Camera, featuring IP67 rating, heat detection, and dual image fusion for superior surveillance. Ideal for industrial and commercial applications, it offers advanced AI functions for human and vehicle classification, ensuring reliable monitoring in hazardous environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4MP Thermal Network Hybrid Bullet AI Camera | IP67 Rated | Heat Detection & Dual Image Fusion | -20°C to +550°C by Firebox
Brand: Firebox
SKU: DHI-TPC-BF1241-T
Alternatively Known As: Thermal Bullet Camera, Hybrid Thermal IP Camera, AI Thermal Security Camera, IP67 Thermal Surveillance Camera
Technical Specifications
- Sensor: Vanadium oxide uncooled focal plane detector
- Resolution: 4 Megapixel progressive scan CMOS
- Temperature Measurement Range: –20 °C to +550 °C
- AI Functions: Heat detection, tripwire, human/vehicle classification, smoking detection, call detection
- Image Fusion: Dual image fusion of visible and thermal channels
- Input Voltage: 12 VDC ± 20%, PoE
- Ingress Protection: IP67 rated
- Dimensions (H x L x W): 90mm x 250mm x 90mm
- Weight: 1.2 kg
Key Features
- 4 Megapixel progressive scan CMOS sensor
- Vanadium oxide uncooled focal plane detector
- AI functions including heat detection, tripwire, human/vehicle classification, smoking detection, and call detection
- Temperature measurement range from –20 °C to +550 °C
- Dual image fusion combining visible and thermal channels
- Flexible rules and alarms with remote auxiliary management
- Wide input voltage support: 12 VDC ± 20% and Power over Ethernet (PoE)
- IP67 rated for dust and water resistance
Professional Installation Requirements
- Installation by a qualified security systems technician or licensed electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial and commercial security surveillance
- Fire detection and prevention systems
- Perimeter monitoring with AI-based human and vehicle classification
- Temperature monitoring in hazardous environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
- Energy-efficient operation reduces power consumption
- Durable IP67 rating extends product lifespan reducing waste
- Supports remote monitoring reducing the need for physical inspections
Warranty Information
Standard 2 years warranty covering manufacturing defects and hardware failures.
Available Now
The Firebox 4MP Thermal Network Hybrid Bullet AI Camera IP67 Rated is available now for immediate purchase. Ideal for industrial, commercial, and high-security applications requiring advanced thermal imaging and AI detection.
