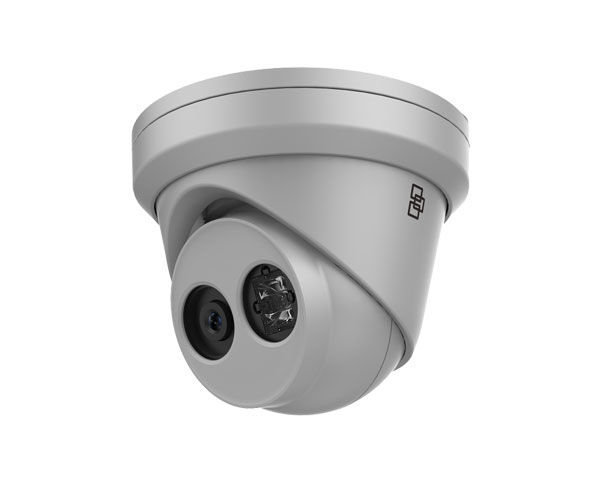

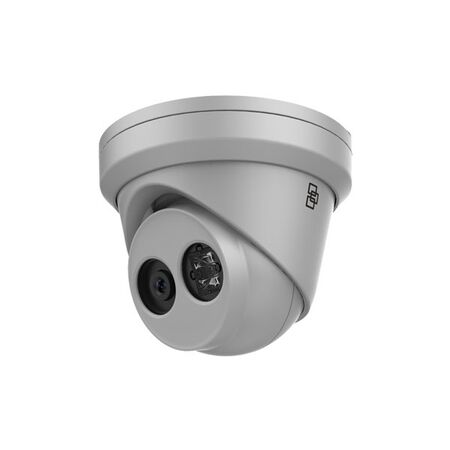

4MP Turret Camera 2.8mm Lens H.265 Grey TruVision
TruVision 4MP turret camera features a 2.8mm lens and H.265 compression in grey. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TVT-5604, TruVision Series 6 4MP Fixed Lens Turret Camera, IP CCTV Turret Camera
Technical Specifications
- Model: TVT-5604
- Resolution: 4MP, 2560 x 1440 at 25/30 fps
- Image Sensor: 1/3-inch progressive-scan CMOS
- Lens: Fixed 2.8mm, F1.6
- Field of View: 98° horizontal, 55° vertical, 114° diagonal
- Video Compression: H.265, H.264 and MJPEG
- Dynamic Range: True WDR, 120dB
- Infrared Range: Up to 30m
- Day/Night: True day/night with IR cut filter
- Storage: MicroSD, MicroSDHC or MicroSDXC up to 128GB
- Network Interface: RJ-45 10/100Mbps Ethernet
- Power Supply: 12VDC or IEEE 802.3af PoE
- Maximum Power Consumption: 6W at 12VDC
- Ingress Protection: IP67
- Operating Temperature: -30°C to +60°C
- Protocols and Integration: ONVIF Profile G and Profile S
- Regulatory Markings: CE, FCC, REACH, RoHS, UL and WEEE
- Dimensions (H x L x W): 127mm x 96mm x 96mm
- Weight: 0.62 kg
Key Features
- 4MP high-definition IP video surveillance
- Wide-angle 2.8mm fixed lens for broad scene coverage
- H.265 compression helps reduce bandwidth and storage requirements
- True WDR and 3D digital noise reduction for challenging lighting conditions
- 30m infrared illumination for night-time monitoring
- Motion, face, intrusion and line-crossing detection
- Local recording through the integrated microSD card slot
- PoE or 12VDC power options
- IP67-rated enclosure for outdoor installation
- Grey turret housing suitable for commercial and residential CCTV installations
Professional Installation Requirements
- Installation should be completed by a suitably qualified CCTV or network technician. Configure PoE, network addressing, recording and camera positioning in accordance with the site design and applicable electrical and communications requirements.
Applications
- Residential CCTV systems
- Commercial and retail security monitoring
- Warehouses, workshops and industrial premises
- Outdoor building entrances and perimeter areas
- Small business and office surveillance
- Network video recorder and ONVIF-compatible surveillance systems
Standards & Compliance
- AS/NZS 62368.1: Relevant safety standard for audio, video, information and communication technology equipment, including IP and PoE surveillance equipment; confirm the supplied unit's Australian conformity documentation and RCM status before installation.
Environmental Benefits
- H.265 compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
- RoHS-listed compliance supports restriction of specified hazardous substances in electronic equipment
- IP67 construction and outdoor-rated operating temperature range can extend service life and reduce replacement waste
- Local microSD recording can reduce reliance on continuous high-bandwidth network transmission
Warranty Information
Three-year warranty from date of manufacture for TruVision cameras, subject to the applicable Australian distributor warranty terms and exclusions.
Available Now
Available through TruVision and authorised Australian security and surveillance distributors.
