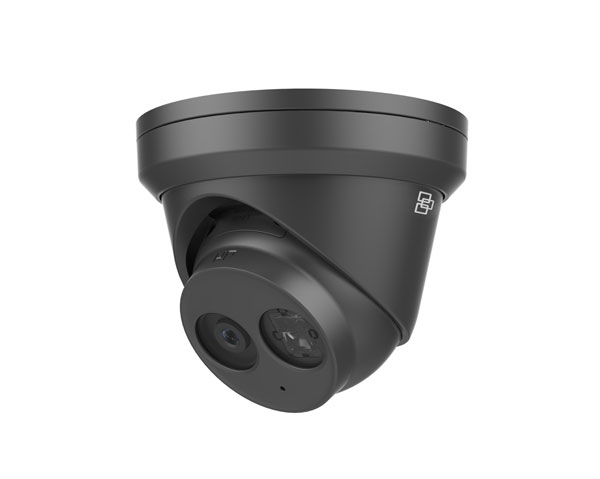

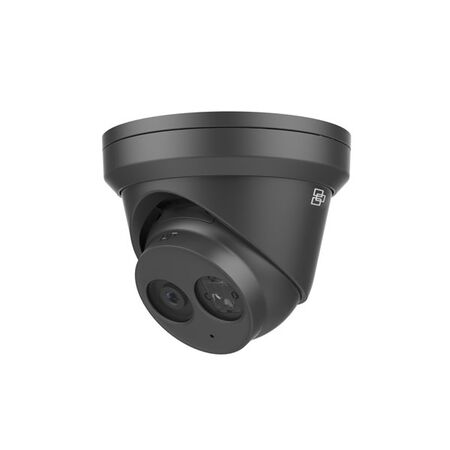

4MP Turret Camera 2.8mm Lens IR 30m Black TruVision
TruVision 4MP turret camera features a 2.8mm lens and IR up to 30m in black. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TruVision TVGP-M01-0401-TUR-B, 4MP IP Turret CCTV Camera, Smart IP Dome Camera
Technical Specifications
- Model: TVGP-M01-0401-TUR-B
- Technology: IP network camera
- Maximum Resolution: 2688 x 1520 at 25/30 fps
- Image Sensor: 1/3-inch progressive-scan CMOS
- Lens: Fixed 2.8mm, F1.6
- Infrared Range: Up to 30m
- Video Compression: H.264, H.265 and H.265+
- Wide Dynamic Range: True WDR, 120dB
- Network Interface: RJ-45 10/100 Mbps Ethernet
- Integration: ONVIF Profiles G, S and T
- Local Storage: MicroSD/SDHC/SDXC up to 256GB
- Power: 12V DC or PoE 802.3af
- Maximum Power Consumption: 7W
- Environmental Rating: IP67
- Impact Rating: IK10
- Operating Temperature: -30°C to +60°C
- Colour: Black
- Regulatory Markings: RCM, CE, FCC, REACH, RoHS, UL and WEEE
- Dimensions (H x L x W): 95.9mm x 127.3mm x 127.3mm
- Weight: 0.6 kg
Key Features
- 4MP high-definition video capture
- Fixed 2.8mm lens suited to wide-area coverage
- Up to 30m infrared illumination for night viewing
- Person and vehicle classification
- Intrusion, line-crossing and face-detection analytics
- H.265+ compression helps reduce bandwidth and storage requirements
- Triple-stream video capability
- ONVIF Profile G, S and T interoperability
- PoE or 12V DC power options
- IP67 weather-resistant and IK10 impact-rated housing
Professional Installation Requirements
- Installation should be performed by a competent security or electrical installer. Configure the camera, PoE or 12V DC supply, network connection and recording system in accordance with the manufacturer's instructions and applicable AS/NZS 62676 requirements.
Applications
- Commercial and residential CCTV systems
- Building entrances and perimeters
- Retail, warehouse and office surveillance
- Outdoor security monitoring
- Integration with TruVision NVRs and ONVIF-compatible video management systems
Standards & Compliance
- Applicable video surveillance system requirements: AS/NZS 62676.1.1:2020
- Applicable video surveillance application guidelines: AS/NZS 62676.4:2020
- Applicable camera data and image-quality performance guidance: AS/NZS 62676.5:2020
Environmental Benefits
- H.265+ compression can reduce network bandwidth and video storage demand compared with less efficient compression formats
- Maximum power consumption of 7W supports relatively low-energy operation
- RoHS and REACH compliance declarations support restricted-substance control
- IP67 and IK10 protection can extend service life and reduce premature replacement waste
Warranty Information
TruVision fixed cameras are covered by a 3-year warranty from date of manufacture under the Australian TruVision/Interlogix warranty policy.
Available Now
Available through TruVision/Carrier Fire & Security Australia and authorised Australian security distributors.
