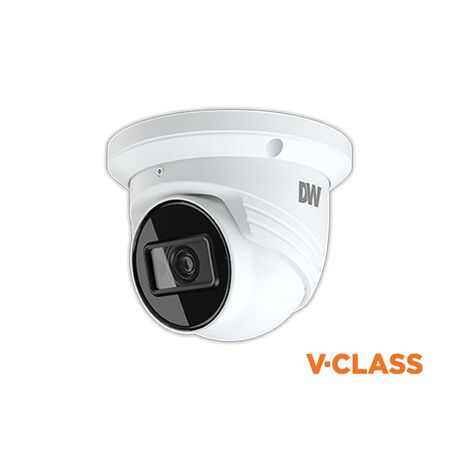

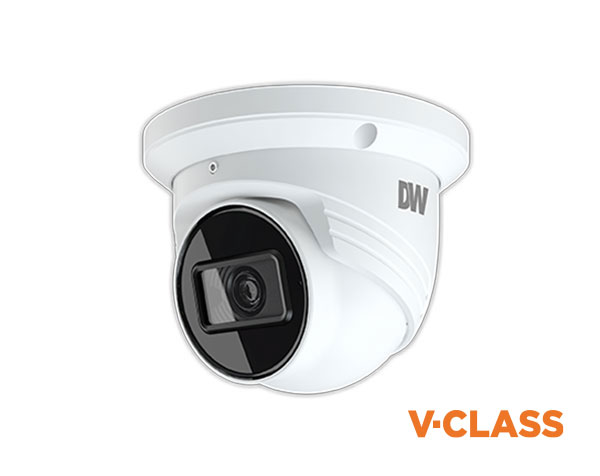

4MP Turret Camera 2.8mm Smart IR 30m True Day Night Ness
Ness 4MP turret camera features a 2.8mm lens, Smart IR 30m and True Day/Night. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness 4MP Turret Camera, DWC-VSTB04Bi, MEGApix V-Class Turret Camera
Technical Specifications
- Image Sensor: 4MP 1/3-inch CMOS
- Resolution: 2560 x 1440
- Lens: 2.8mm fixed lens, F1.6
- Field of View: 94° horizontal, 50° vertical
- Frame Rate: Up to 30fps
- Smart IR: 30m range
- Day/Night: True day/night with automatic IR cut filter
- Video Compression: H.265, H.264 and MJPEG
- Video Streaming: Simultaneous dual-streaming
- Video Analytics: Line crossing, perimeter intrusion and video tampering detection
- Storage: Micro SD, SDHC or SDXC up to 256GB
- Network: 10/100 Ethernet, PoE IEEE 802.3af and DC 12V
- Audio: Built-in microphone and audio input
- Ingress Protection: IP67
- Impact Protection: IK10-rated housing
- Operating Temperature: -30°C to 60°C
- Power Consumption: Less than 5W
- ONVIF: Conformant
- Certifications: CE, FCC, RoHS and NDAA
- Dimensions (H x L x W): 96mm x 108mm x 108mm
- Weight: 0.46 kg
Key Features
- 4MP image resolution for detailed surveillance footage
- 2.8mm fixed lens with a wide 94° horizontal viewing angle
- 30m Smart IR illumination for low-light and night-time monitoring
- True day/night operation with automatic mechanical IR cut filter
- True WDR and Smart DNR 3D digital noise reduction
- H.265 compression reduces bandwidth and storage requirements
- Line crossing, perimeter intrusion and tampering detection
- IP67 weather-resistant metal turret housing
- IK10-rated impact-resistant housing
- PoE connectivity simplifies installation and cabling
Professional Installation Requirements
- Professional CCTV installation by a qualified security technician is recommended. Connect the camera to a suitable PoE network or regulated 12V DC supply, seal external connections and configure the network and recording system in accordance with the equipment manufacturer's instructions.
Applications
- Residential CCTV surveillance
- Commercial and retail security systems
- Office, warehouse and industrial monitoring
- Outdoor perimeter and entry-point surveillance
- Integration with ONVIF-compatible NVRs and video management systems
Standards & Compliance
- AS/NZS 62368.1:2022 is the relevant safety standard for audio/video and information and communication technology equipment; product-specific Australian conformity or RCM documentation was not stated by the manufacturer and should be verified before installation.
Environmental Benefits
- H.265 compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
- Less than 5W power consumption supports lower operating energy use
- RoHS compliance restricts certain hazardous substances in the product
- Durable IP67 and IK10 housing can extend service life and reduce replacement waste
Warranty Information
3-year warranty from date of purchase under Ness Corporation's general warranty for Ness manufactured or supplied products, subject to the manufacturer's warranty terms. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))
Available Now
Available through Ness Corporation and authorised Australian security and electrical distributors; confirm current stock and product status before ordering.
