Trade Discount 25%

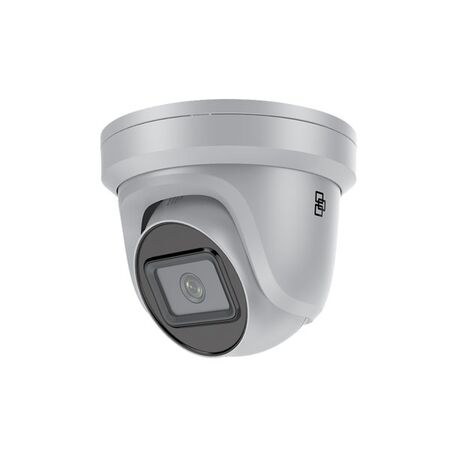

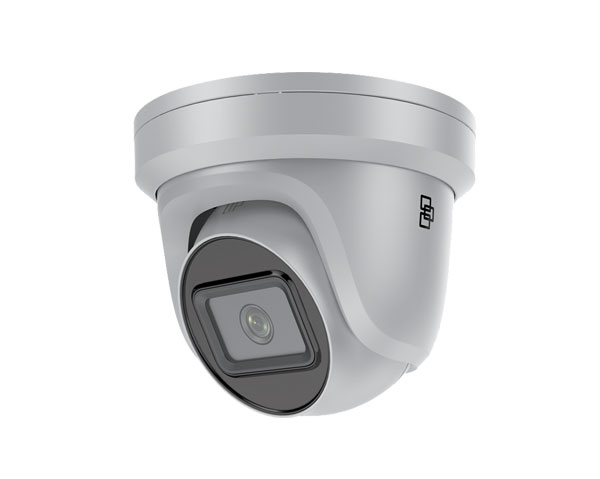

4MP Turret Camera Motorised Zoom 2.8-12mm IR 40m Grey TruVision
TruVision 4MP turret camera features motorised zoom 2.8-12mm and 40m IR in grey. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TruVision 4MP Motorised Varifocal Turret Camera, TruVision M Series IP Turret Camera, TVGP-M01-0402-TUR-G
Technical Specifications
- Resolution: 4MP, 2688 x 1520 pixels
- Lens: Motorised varifocal, 2.8–12mm
- Field of View: Horizontal 95.8°–29.2°; vertical 50.6°–16.4°
- Frame Rate: 25/30 fps at maximum resolution
- Infrared Range: Up to 40m
- Video Compression: H.264, H.265 and H.265+
- Wide Dynamic Range: True WDR, 120dB
- Image Sensor: 1/3-inch progressive-scan CMOS
- Network Interface: RJ-45 10/100 Mbps Ethernet
- Integration: ONVIF Profiles G, S and T
- Local Storage: Micro SD/SDHC/SDXC, up to 512GB
- Power Supply: 12VDC or PoE 802.3af
- Maximum Power Consumption: 11.5W
- Environmental Rating: IP67
- Impact Rating: IK10
- Operating Temperature: -30°C to +60°C
- Colour: Grey
- Dimensions (H x L x W): 126mm x 138.3mm x 138.3mm
- Weight: 0.83 kg
Key Features
- Motorised 2.8–12mm varifocal lens with autofocus
- 4MP image resolution with True WDR and 3D digital noise reduction
- Up to 40m infrared illumination for low-light surveillance
- Person and vehicle classification
- Intrusion, line-crossing, face and advanced motion detection
- Triple-stream video encoding using H.264, H.265 and H.265+
- Outdoor-rated IP67 construction with IK10 impact protection
- Supports PoE for simplified network installation
- ONVIF Profile G, S and T compatibility
- Built-in audio input/output and alarm input/output
Professional Installation Requirements
- Installation should be performed by qualified security or electrical personnel. Use a compliant PoE switch or 12VDC power supply, correctly terminate network and alarm wiring, and seal all outdoor cable entries to maintain the IP67 rating.
Applications
- Commercial and industrial CCTV systems
- Retail, warehouse and logistics security
- Building entrances, car parks and perimeter monitoring
- Outdoor surveillance requiring motorised framing adjustment
- IP video systems using ONVIF-compatible recorders or VMS platforms
Standards & Compliance
- AS/NZS 62368.1: Relevant audio, video and information and communication technology equipment safety standard for this product category; product-specific AS/NZS certification is not stated in the available datasheet
Environmental Benefits
- H.265+ compression can reduce bandwidth and storage requirements compared with less efficient video codecs
- RoHS compliance supports restriction of certain hazardous substances
- IP67 and IK10 protection can extend service life and reduce premature replacement waste
- MicroSD edge recording can reduce dependence on continuously streamed central storage
Warranty Information
TruVision fixed cameras are covered by a 3-year manufacturer warranty under the published Interlogix/Ness warranty policies, subject to the applicable terms and purchase channel.
Available Now
Available through TruVision/Aritech and authorised Australian security distributors.
