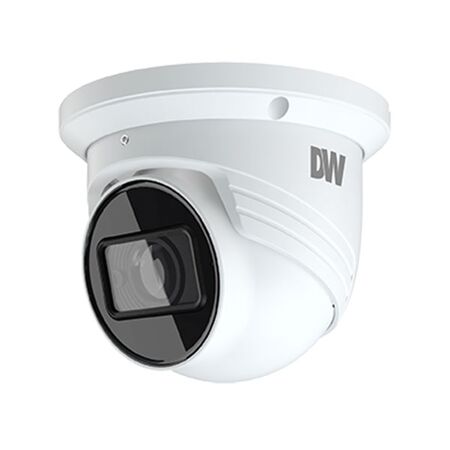

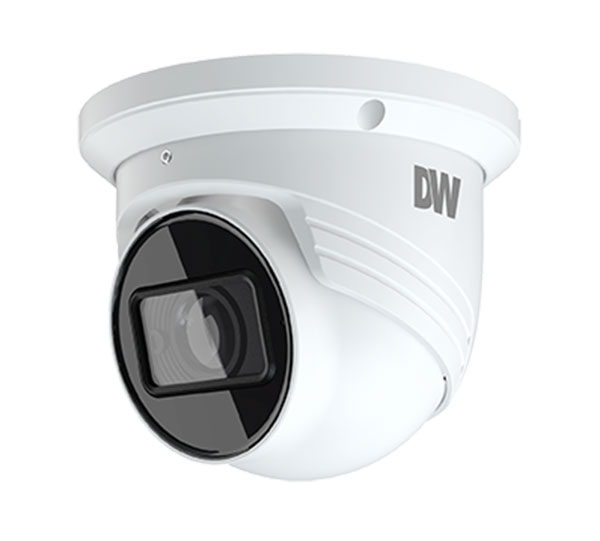

4MP Turret Security Camera 2.8-12mm Varifocal IP66 Ness
Ness 4MP turret security camera features a 2.8-12mm varifocal lens and IP66 weatherproofing. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness 4MP Turret Security Camera, Digital Watchdog 4MP Varifocal Turret Camera, DWC-VSTB04Mi
Technical Specifications
- Image Sensor: 4MP 1/3-inch CMOS
- Image Resolution: 2560 x 1440 pixels
- Lens: 2.8-12mm motorised varifocal with autofocus
- Horizontal Field of View: 92° to 31°
- Vertical Field of View: 48° to 17.2°
- Infrared Range: Up to 50m
- Video Compression: H.265, H.264 and MJPEG
- Frame Rate: Up to 30fps
- Wide Dynamic Range: True WDR, 120dB
- Network Interface: 10/100 Ethernet
- Power Supply: 12V DC or PoE, IEEE 802.3af Class 3
- Power Consumption: Less than 8W
- Memory Card Support: MicroSD, SDHC and SDXC up to 256GB
- Operating Temperature: -30°C to 60°C
- Operating Humidity: 0-95% RH, non-condensing
- Weather Protection: IP67
- Impact Protection: IK10
- Audio: Audio input and built-in microphone
- Network Protocols: IPv4, IPv6, DHCP, RTSP, HTTPS and ONVIF
- Dimensions (H x L x W): 109mm x 131.1mm x 131.1mm
- Weight: 0.64 kg
Key Features
- 4MP imaging with real-time video up to 30fps
- Motorised 2.8-12mm varifocal lens with autofocus
- True day/night operation with mechanical IR cut filter
- Smart IR illumination with a range of up to 50m
- True WDR and 3D digital noise reduction
- Line-crossing, perimeter-intrusion and video-tampering analytics
- H.265 compression for reduced bandwidth and storage requirements
- PoE and 12V DC power options
- ONVIF Profile S compatibility for integration with compatible systems
- IP67-rated metal turret housing with IK10 impact protection
- MicroSD recording support up to 256GB
Professional Installation Requirements
- Installation should be performed by a qualified security technician or suitably qualified electrician. Configure the camera, network, PoE equipment and recording system in accordance with the equipment manufacturer's instructions and applicable Australian electrical and communications requirements.
Applications
- Commercial and residential CCTV surveillance
- Retail and office security monitoring
- Warehouse and industrial site surveillance
- Outdoor entrances, loading areas and car parks
- Perimeter monitoring and access-point security
- Network video recorder and ONVIF surveillance system installations
Standards & Compliance
- AS/NZS 62368.1:2026 is the relevant Australian/New Zealand safety standard for applicable audio, video and information and communications technology equipment; product-specific compliance was not verified in the available manufacturer documentation.
Environmental Benefits
- H.265 video compression can reduce network bandwidth and storage requirements compared with older compression formats.
- PoE simplifies installation by combining power and data over one network cable, reducing cabling requirements.
- Remote video monitoring can reduce the need for some physical security patrols and associated travel.
- Metal housing, replaceable storage and network integration can support a longer service life and reduce replacement waste.
Warranty Information
Ness Corporation provides a 3-year warranty from the date of purchase for Ness manufactured or supplied products. Warranty claims are subject to Ness Corporation's warranty terms and conditions.
Available Now
Available through Ness Corporation and authorised Australian security, electrical and CCTV distributors.
