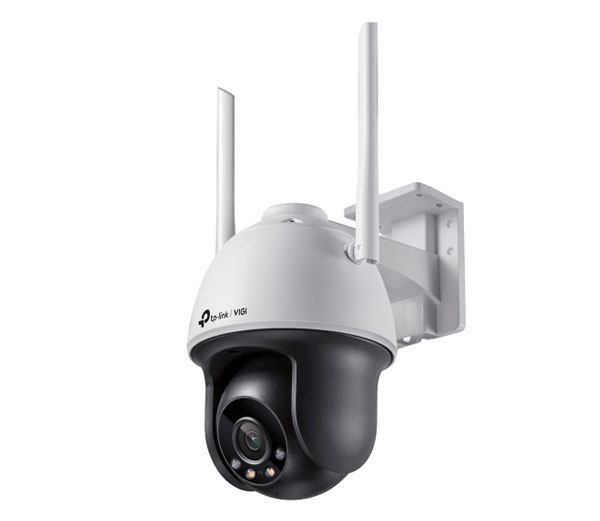

4MP WiFi Pan and Tilt Camera 4mm VIGI Ness
Ness pan and tilt camera features 4MP resolution, WiFi connectivity and a 4mm lens from the VIGI range. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VIGI C540-W, VIGI 4MP Wi-Fi PTZ Camera, Outdoor Wi-Fi Pan/Tilt IP Camera, 4mm VIGI Security Camera
Technical Specifications
- Model: VIGI C540-W
- Image Resolution: 4MP, up to 2560 × 1440
- Image Sensor: 1/3-inch progressive scan CMOS
- Lens: 4mm fixed focal length, F1.6 aperture
- Field of View: 79° horizontal, 43° vertical, 93° diagonal
- Pan/Tilt Range: 0–350° pan, 0–120° tilt
- Night Vision: Full-colour illumination with IR and white light up to 30m
- Connectivity: 2.4GHz Wi-Fi 802.11b/g/n and 10/100Mbps Ethernet
- Video Compression: H.265+, H.265, H.264+ and H.264
- Storage: MicroSD card slot, up to 512GB
- Audio: Built-in microphone, speaker and two-way audio
- Power Supply: 12V DC, 1A
- Maximum Power Consumption: 15.5W
- Operating Temperature: -30°C to 60°C
- Ingress Protection: IP66
- Certifications and Markings: RCM, CE, RoHS and other regional approvals
- Dimensions (H x L x W): 198mm x 120mm x 172mm
- Weight: 0.62 kg
Key Features
- 4MP high-definition video capture
- Motorised pan and tilt for broad-area monitoring
- 24-hour full-colour imaging with supplemental lighting
- Wi-Fi connectivity for flexible outdoor installation
- Human and vehicle classification
- Automatic tracking and configurable patrol routes
- Motion, intrusion, line-crossing and tampering detection
- Active defence with audible warning and white-light response
- Two-way audio communication
- H.265+ compression to reduce bandwidth and storage requirements
- ONVIF compatibility for integration with compatible surveillance systems
- Remote management through the VIGI app, web interface, NVR interface and VIGI Security Manager
- IP66 weather-resistant housing
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical installer. Mount the camera securely, route and weather-seal cabling correctly, and connect it only to the supplied low-voltage 12V DC power adapter.
Applications
- Outdoor CCTV surveillance for homes and businesses
- Entrances, driveways and car parks
- Retail, warehouse and commercial premises
- Construction sites and perimeter monitoring
- Remote monitoring through Wi-Fi-connected security systems
Standards & Compliance
- RCM listed for the Australian market
- AS/NZS 62368.1: applicable safety framework for audio, video and information and communication technology equipment; verify the product declaration for the applicable revision
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage requirements
- RoHS compliance supports restriction of hazardous substances in the product
- MicroSD recording can reduce reliance on continuously operating central recording hardware
- Durable IP66 housing supports longer service life and reduced replacement waste
Warranty Information
Ness warranty policy provides 3 years from the date of purchase for Ness-manufactured or supplied products. Confirm warranty coverage and claim conditions with the supplying Ness branch. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))
Available Now
Available through Ness and authorised Australian security-equipment distributors, subject to current stock and supply arrangements.
