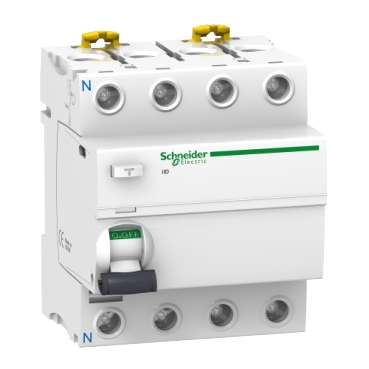

4P 80A 100mA A RCCB | Type A Earth Leakage Protection | DIN Rail Mounting | by Clipsal
The 4P 80A 100mA A RCCB is designed for effective earth leakage protection, making it ideal for residential, commercial, and light industrial applications. With a rated current of 80A and Type A sensitivity, it ensures safety against AC and pulsating DC faults. Quick DIN rail mounting and a test button for regular checks enhance its reliability, making it a must-have for any electrical distribution board.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4P 80A 100mA A RCCB | Type A Earth Leakage Protection | DIN Rail Mounting | by Clipsal
Brand: Clipsal
SKU: SCHA9R22480
Alternatively Known As: 4 Pole RCCB, 80A RCCB, 100mA Residual Current Circuit Breaker, Clipsal Acti9 RCCB, SCHA9R22480
Technical Specifications
- Number of Poles: 4
- Rated Current: 80A
- Rated Residual Operating Current: 100mA
- Type: A (detects AC and pulsating DC earth leakage)
- Rated Voltage: 400V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Breaking Capacity: 6kA
- Test Button: Yes
- Operating Temperature: -25°C to +40°C
- Dimensions (H x L x W): 85mm x 75mm x 72mm
- Weight: 0.45 kg
Key Features
- 4 pole residual current circuit breaker (RCCB)
- Rated current: 80A
- Sensitivity: 100mA (Type A)
- Provides protection against earth leakage faults
- Quick and easy DIN rail mounting
- Acti9 iID series for reliable performance
- Clear ON/OFF indication
- Test button for regular safety checks
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Residential: Main switchboards, sub-distribution boards
- Commercial: Offices, retail, hospitality, and public buildings
- Industrial: Light industrial switchboards and control panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61008 – Residual Current Operated Circuit-Breakers
Environmental Benefits
- Enhances electrical safety, reducing risk of electrical fires and accidents
- Supports compliance with modern safety standards, promoting safer environments
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for use in residential, commercial, and light industrial electrical distribution boards requiring reliable earth leakage protection.
